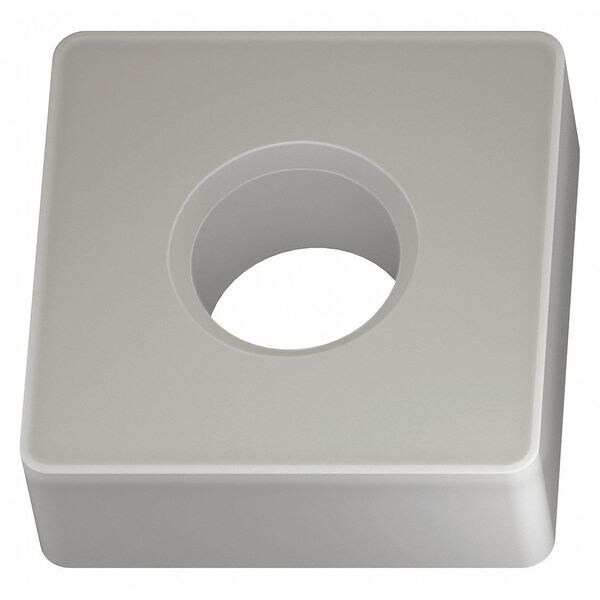

Square Turning Insert, Square, 4, SNGA, 4, Ceramic
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNGA |
| Inscribed Circle | 4 |
| Insert Size | 434 |
| Chip-Breaker | Yes |
| Grade | WCK10 |
| Corner Radius | 4 |
| Insert Material | Ceramic |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | SNGA120416T02020 |
| For Use With | Toolholders, Boring Bars |
| No. of Edges | 8 |
| Insert Thickness | 0.188 in |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.063 in |
| Steel (P) Compatibility | No |
| Coating | Uncoated |
| Mounting Hole Dia. | 0.203 in |
| Relief Angle | 0 Degrees |
| Super Alloy (S) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K) |
| Stainless (M) Compatibility | No |
| Hardened (H) Compatibility | No |
| ANSI Number | SNGA434T02020 WCK10 |
| Cutting Direction | Neutral |
| Mounting Style | Clamp |
| Primary Material Application | Cast Iron |
| Material Grade - Machining | Silicon Nitride Si3N4 |
| Material - Machining | Ceramic |
| Clearance Angle | 0 deg |
| Included Angle | 90 Degrees |
| Cutting Edge | Chamfered |
| Number of Cutting Edges | 8 |
| Insert Holding Type | Straight Hole |
| Cutting Edge Length | 12.7 mm |
| Depth of Cut | 0.1 to 5 mm |
| Manufacturer Grade | WCK10 |
| Primary Material Application ISO Code | K |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | T02020 |
| Thickness | 3/16 in |
| ANSI Code | SNGA434T02020 |
| Cutting Application | Turning |
| Shape | Square |
| Chamfer Angle | 20 deg |
| Material | Ceramic |
| Package Quantity | 1 |
