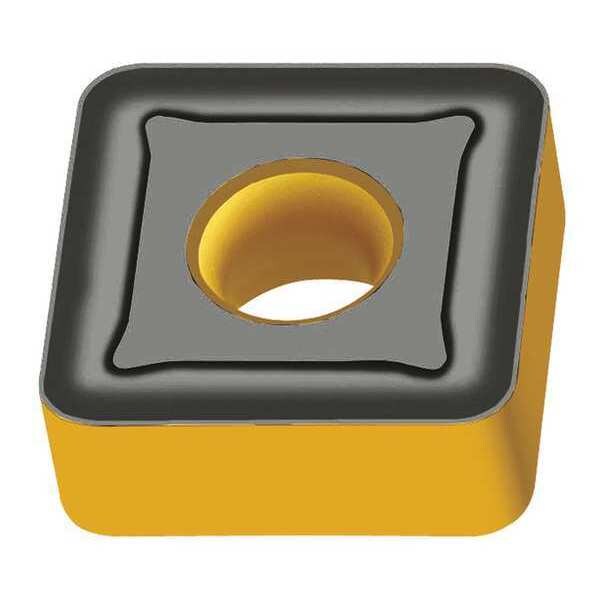

Square Turning Insert, Square, 4, SNMG, 2, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | WAK10 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | SNMG120408-NM5 |
| Hardened (H) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Insert Thickness | 0.188 in |
| Mounting Style | Clamp |
| Coating | CVD |
| Super Alloy (S) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Cast Iron (K) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| No. of Edges | 4 |
| Relief Angle | 0 Degrees |
| Cutting Direction | Neutral |
| Nose Radius | 0.031 in |
| ANSI Number | SNMG543 |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Thickness | 3/16 in |
| ANSI Code | SNMG432-NM5 |
| Cutting Edge Length | 12.7 mm |
| Insert Holding Type | Straight Hole |
| Primary Material Application | Cast Iron |
| Manufacturer Grade | WAK10 |
| Material - Machining | Carbide |
| Chip-Breaker Code | NM5 |
| Shape | Square |
| Measurement System | Fractional Inch |
| Included Angle | 90 Degrees |
| Coating Process | CVD |
| Cutting Application | Turning |
| Number of Cutting Edges | 4 |
| Clearance Angle | 0 deg |
| Primary Material Application ISO Code | K |
| Material | Carbide |
| Package Quantity | 1 |
