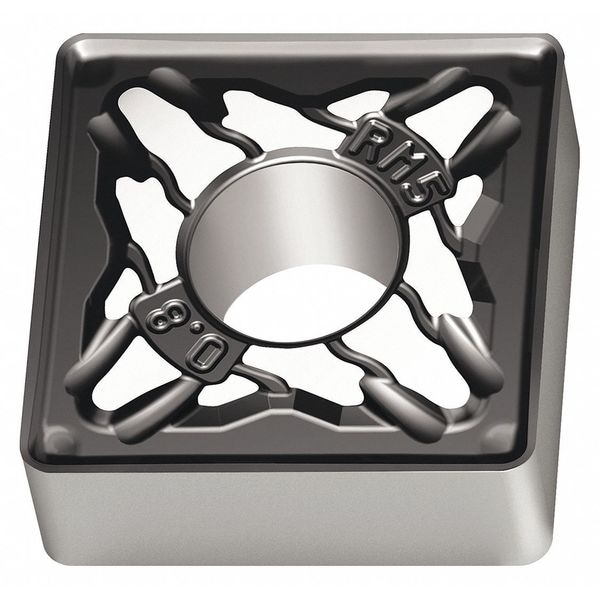

Square Turning Insert, Square, 6, SNMG, 4, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNMG |
| Inscribed Circle | 6 |
| Insert Size | 644 |
| Chip-Breaker | Yes |
| Grade | WSM30S |
| Corner Radius | 4 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | SNMG190616-RM5 |
| For Use With | Toolholders, Boring Bars |
| ANSI Number | SNMG644-RM5 WSM30S |
| Steel (P) Compatibility | Yes |
| Relief Angle | 0 Degrees |
| No. of Edges | 8 |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| Cast Iron (K) Compatibility | No |
| Mounting Hole Dia. | 0.312 in |
| Cutting Direction | Neutral |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Coating | PVD |
| Insert Thickness | 1/4 in |
| Nose Radius | 0.063 in |
| Mounting Style | Clamp |
| Primary Material Application ISO Code | M, S |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Measurement System | Fractional Inch |
| Depth of Cut | 2 to 8 mm |
| Chip-Breaker Code | RM5 |
| ANSI Code | SNMG644-RM5 |
| Cutting Application | Turning |
| Clearance Angle | 0 deg |
| Finish - Machining | TiAlN+Al2O3+Al |
| Material - Machining | Carbide |
| Coating Process | PVD |
| Thickness | 1/4 in |
| Number of Cutting Edges | 8 |
| Manufacturer Grade | WSM30S |
| Insert Holding Type | Straight Hole |
| Shape | Square |
| Cutting Edge Length | 19.05 mm |
| Included Angle | 90 Degrees |
| Material | Carbide |
| Package Quantity | 1 |
