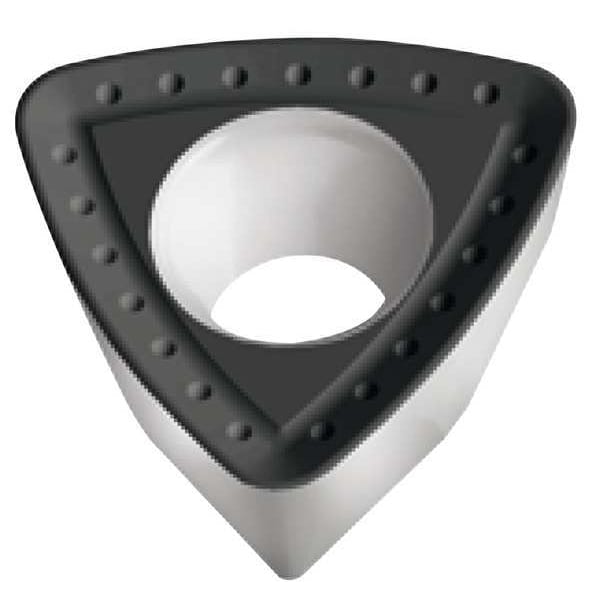

Triangle P263 Carbide
| Item | Triangle Milling Insert |
|---|---|
| Insert Style | P263 |
| Insert Shape | Triangle |
| Insert Size | 35R10 |
| Insert Material | Carbide |
| Corner Radius | 1/32 in |
| Chip-Breaker | Yes |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.031 in |
| For Use With | High-Performance Milling Cutter |
| Insert Thickness | 1/8 in |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Coating | CVD |
| Rake | Positive |
| Stainless (M) Compatibility | No |
| Grade | WKP35S |
| Insert Application | Medium |
| Inscribed Circle | 17/64 in |
| Cutting Direction | Right Hand |
| ANSI Number | P26335R10 WKP35S |
| Mounting Style | Screw Held |
| No. of Edges | 3 |
| ISO Number | P26335R10 WKP35S |
| Coating Process | CVD |
| Secondary Material Application | Stainless Steel |
| Feed Type | High |
| Cutting Application | Milling |
| Included Angle | 80 deg |
| Primary Material Application ISO Code | P, K |
| Shape | Triangle |
| Chip-Breaker Code | A27 |
| Number of Cutting Edges | 3 |
| Secondary Material Application ISO Code | M |
| Measurement System | Metric |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Manufacturer Grade | WKP35S |
| Material - Machining | Carbide |
| Thickness | 1/8 in |
| ANSI Code | P26335R10 WKP35S |
| Insert Holding Type | Screw Held |
| Clearance Angle | 14 deg |
| Primary Material Application | Cast Iron, Steel |
| Chip-Breaker Style | 0 deg (Chipbreaker Groove) |
| Package Quantity | 1 |
