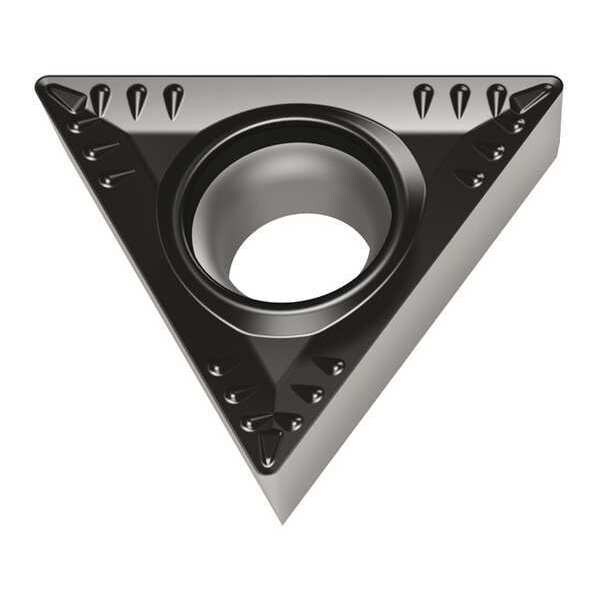

Triangle Turning Insert, Triangle, 1.8, TCMT, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCMT |
| Inscribed Circle | 1.8 |
| Insert Size | 1.81.51 |
| Chip-Breaker | Yes |
| Grade | WPP20S |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | TCMT090204-RP4 WPP20S |
| Hardened (H) Compatibility | No |
| ANSI Number | TCMT1.8(1.5)1 |
| Super Alloy (S) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Insert Thickness | 0.094 in |
| Steel (P) Compatibility | Yes |
| Mounting Hole Dia. | 0.098 in |
| Mounting Style | Screw |
| For Use With | Toolholders, Boring Bars |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Relief Angle | 7 Degrees |
| No. of Edges | 3 |
| Coating | CVD |
| Nose Radius | 0.016 in |
| Cutting Direction | Neutral |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Coating Process | CVD |
| Thickness | 2.38 mm |
| Number of Cutting Edges | 3 |
| Included Angle | 60 Degrees |
| Through Hole Inside Dia. | 2.5 mm |
| Secondary Material Application | Cast Iron |
| Cutting Edge Length | 9.62 mm |
| Primary Material Application ISO Code | P |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Secondary Material Application ISO Code | K |
| Clearance Angle | 7 deg |
| Cutting Application | Turning |
| Manufacturer Grade | WPP20S |
| Measurement System | Metric |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Chip-Breaker Code | RP4 |
| ANSI Code | TCMT1.8(1.5)1-RP4 WPP20S |
| Primary Material Application | Steel |
| Shape | Triangle |
| Material - Machining | Carbide |
| Depth of Cut | 0.4 to 3 mm |
| Material | Carbide |
| Package Quantity | 1 |
