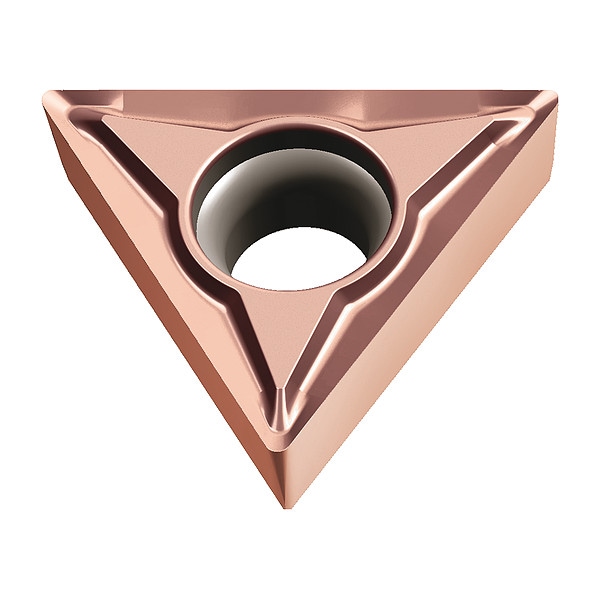

Triangle Turning Insert, Triangle, 2, TCGT, 0.1 mm, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCGT |
| Inscribed Circle | 2 |
| Insert Size | 21.5 |
| Chip-Breaker | Yes |
| Grade | WXN10 |
| Corner Radius | 0.1 mm |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | TCGT110201-PF2 WXN10 |
| Stainless (M) Compatibility | No |
| Non Ferrous (N) Compatibility | Yes |
| Insert Thickness | 0.0937 in |
| Relief Angle | 7 Degrees |
| No. of Edges | 3 |
| Cutting Direction | Neutral |
| Coating | PVD |
| Cast Iron (K) Compatibility | No |
| Mounting Style | Screw Clamp |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.0039 in |
| Workpiece Compatibility | Nonferrous (N) |
| Steel (P) Compatibility | No |
| For Use With | Series STFCR, STFCL, STFCL, STFCR, STGCL, STGCL, STGCR, STGCR, A12S-STFCL, A12S-STFCR, A06M-STFCL, A06M-STFCL, A06M-STFCR, A06M-STFCR |
| Hardened (H) Compatibility | No |
| ANSI Number | TCGT2(1.5)0.2-PF2 |
| Measurement System | Metric |
| Finish - Machining | TiCN+ |
| Material - Machining | Carbide |
| Clearance Angle | 7 deg |
| Cutting Edge Length | 11 mm |
| Included Angle | 60 Degrees |
| Number of Cutting Edges | 3 |
| Shape | Triangle |
| Thickness | 2.38 mm |
| ANSI Code | TCGT2(1.5)0.2-PF2 WXN10 |
| Chip-Breaker Code | PF2 |
| Coating Process | PVD |
| Secondary Material Application ISO Code | P, M |
| Cutting Application | Turning |
| Primary Material Application ISO Code | N |
| Secondary Material Application | Stainless Steel, Steel |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Through Hole Inside Dia. | 2.8 mm |
| Manufacturer Grade | WXN10 |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Material | Carbide |
| Package Quantity | 1 |
