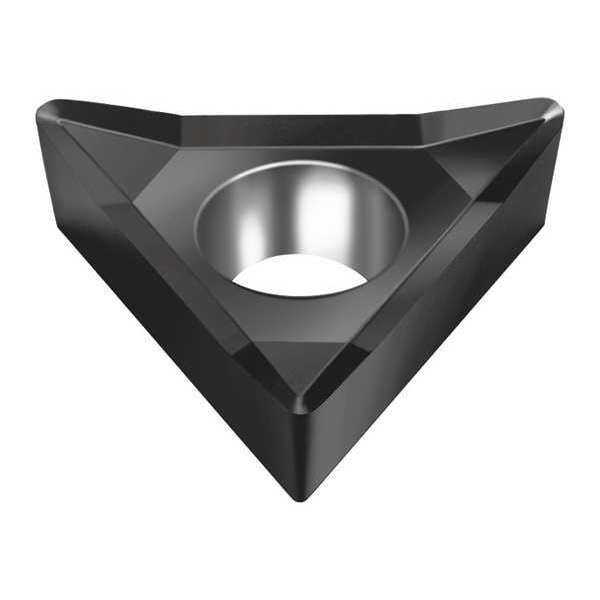

Triangle Turning Insert, Triangle, 2, TCGT, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCGT |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | WNN10 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | TCGT110204-MN2 WNN10 |
| Steel (P) Compatibility | Yes |
| Mounting Style | Screw |
| Coating | Uncoated |
| ANSI Number | TCGT2(1.5)1-MN2 WNN10 |
| Relief Angle | 7 Degrees |
| Workpiece Compatibility | Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| No. of Edges | 3 |
| Super Alloy (S) Compatibility | Yes |
| Nose Radius | 0.016 in |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Mounting Hole Dia. | 0.11 in |
| Cutting Direction | Neutral |
| Insert Thickness | 0.094 in |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Thickness | 2.38 mm |
| Cutting Application | Turning |
| Cutting Edge Length | 11 mm |
| Number of Cutting Edges | 3 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| ANSI Code | TCGT2(1.5)1-MN2 WNN10 |
| Manufacturer Grade | WNN10 |
| Included Angle | 60 Degrees |
| Through Hole Inside Dia. | 2.8 mm |
| Primary Material Application ISO Code | N |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Clearance Angle | 7 deg |
| Chip-Breaker Code | MN2 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Finish - Machining | TiAlN |
| Depth of Cut | 0.6 to 3 mm |
| Shape | Triangle |
| Material | Carbide |
| Package Quantity | 1 |
