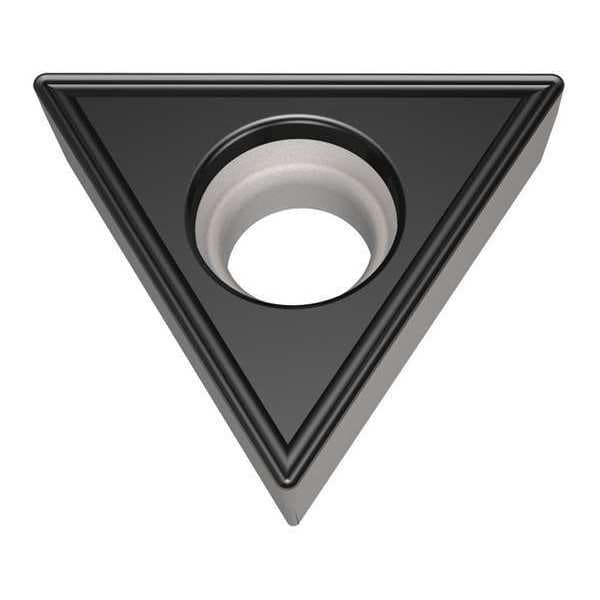

Triangle Turning Insert, Triangle, 2, TCMT, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCMT |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | WKK20S |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | TCMT110204-FK6 WKK20S |
| Steel (P) Compatibility | Yes |
| ANSI Number | TCMT2(1.5)2 |
| Nose Radius | 0.016 in |
| Relief Angle | 7 Degrees |
| Mounting Hole Dia. | 0.11 in |
| Coating | CVD |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Non Ferrous (N) Compatibility | No |
| Insert Thickness | 0.094 in |
| Mounting Style | Screw |
| Cutting Direction | Neutral |
| No. of Edges | 3 |
| Stainless (M) Compatibility | No |
| Hardened (H) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Cast Iron (K) Compatibility | Yes |
| Shape | Triangle |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| ANSI Code | TCMT2(1.5)1-FK6 WKK20S |
| Clearance Angle | 7 deg |
| Manufacturer Grade | WKK20S |
| Primary Material Application ISO Code | K |
| Included Angle | 60 Degrees |
| Primary Material Application | Cast Iron |
| Material - Machining | Carbide |
| Cutting Edge Length | 11 mm |
| Coating Process | CVD |
| Cutting Application | Turning |
| Depth of Cut | 0.3 to 2 mm |
| Measurement System | Metric |
| Number of Cutting Edges | 3 |
| Chip-Breaker Code | FK6 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Through Hole Inside Dia. | 2.8 mm |
| Thickness | 2.38 mm |
| Material | Carbide |
| Package Quantity | 1 |
