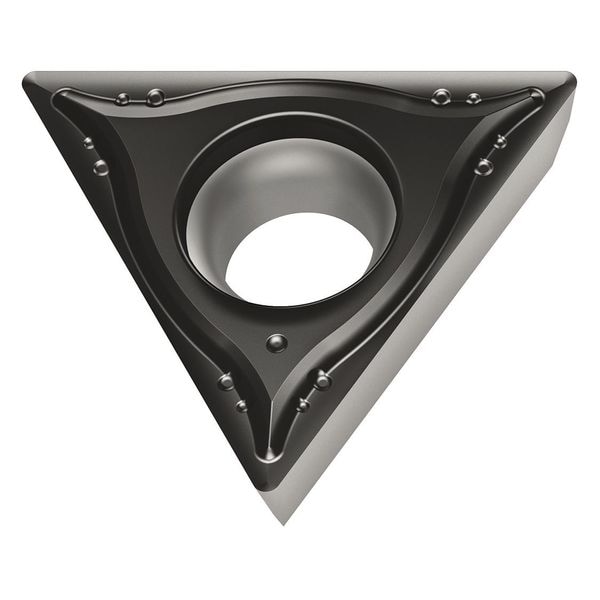

Triangle Turning Insert, Triangle, 2, TPMW, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TPMW |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | WKK20S |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | TPMW110204-RK6 WKK20S |
| Mounting Hole Dia. | 0.11 in |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| ANSI Number | TPMW2(1.5)2 |
| Mounting Style | Screw |
| No. of Edges | 2 |
| Insert Thickness | 0.094 in |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Relief Angle | 11 Degrees |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.016 in |
| Coating | CVD |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Cutting Application | Turning |
| Primary Material Application ISO Code | K |
| Cutting Edge Length | 11 mm |
| Measurement System | Metric |
| Clearance Angle | 11 deg |
| Shape | Triangle |
| Depth of Cut | 0.4 to 2.5 mm |
| Thickness | 2.38 mm |
| Manufacturer Grade | WKK20S |
| Through Hole Inside Dia. | 2.8 mm |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Chip-Breaker Code | RK6 |
| Primary Material Application | Cast Iron |
| Coating Process | CVD |
| ANSI Code | TPMW2(1.5)1-RK6 WKK20S |
| Included Angle | 60 Degrees |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Material - Machining | Carbide |
| Material | Carbide |
| Package Quantity | 1 |
