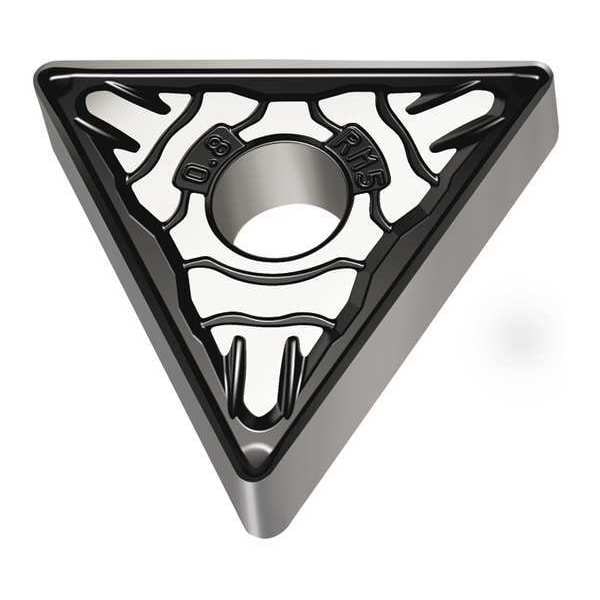

Triangle Turning Insert, Triangle, 3, TNMG, 2, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TNMG |
| Inscribed Circle | 3 |
| Insert Size | 332 |
| Chip-Breaker | Yes |
| Grade | WSM10S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | TNMG160408-RM5 WSM10S |
| Stainless (M) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Mounting Hole Dia. | 0.15 in |
| Nose Radius | 0.031 in |
| Steel (P) Compatibility | Yes |
| Coating | PVD |
| Cast Iron (K) Compatibility | No |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| No. of Edges | 3 |
| Mounting Style | Clamp |
| Insert Thickness | 0.188 in |
| Relief Angle | 0 Degrees |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Cutting Direction | Neutral |
| ANSI Number | TNMG333 |
| Non Ferrous (N) Compatibility | No |
| Clearance Angle | 0 deg |
| Cutting Application | Turning |
| Thickness | 4.76 mm |
| Number of Cutting Edges | 3 |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Secondary Material Application | Steel |
| Material - Machining | Carbide |
| Cutting Edge Length | 16.5 mm |
| Through Hole Inside Dia. | 3.81 mm |
| Measurement System | Metric |
| Chip-Breaker Code | RM5 |
| Shape | Triangle |
| Insert Holding Type | Straight Hole |
| Secondary Material Application ISO Code | P |
| Coating Process | PVD |
| Manufacturer Grade | WSM10S |
| Primary Material Application ISO Code | M, S |
| Depth of Cut | 1.2 to 4 mm |
| Finish - Machining | TiAlN+Al2O3+Al |
| Included Angle | 60 Degrees |
| ANSI Code | TNMG332-RM5 WSM10S |
| Material | Carbide |
| Package Quantity | 1 |
