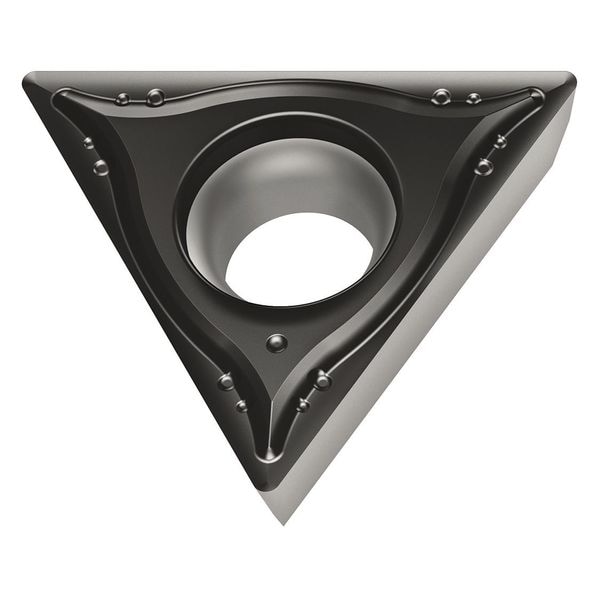

Triangle Turning Insert, Triangle, 3, TPMW, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TPMW |
| Inscribed Circle | 3 |
| Insert Size | 32.51 |
| Chip-Breaker | Yes |
| Grade | WKK20S |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | TPMW16T304-RK6 WKK20S |
| Coating | CVD |
| Hardened (H) Compatibility | No |
| ANSI Number | TPMW3(2.5)2 |
| Mounting Hole Dia. | 0.173 in |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Mounting Style | Screw |
| Cutting Direction | Neutral |
| Nose Radius | 0.016 in |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Relief Angle | 11 Degrees |
| No. of Edges | 2 |
| Cast Iron (K) Compatibility | Yes |
| Insert Thickness | 0.156 in |
| Non Ferrous (N) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Through Hole Inside Dia. | 4.4 mm |
| ANSI Code | TPMW3(2.5)1-RK6 WKK20S |
| Depth of Cut | 0.4 to 3 mm |
| Clearance Angle | 11 deg |
| Thickness | 3.97 mm |
| Coating Process | CVD |
| Measurement System | Metric |
| Cutting Edge Length | 16.5 mm |
| Manufacturer Grade | WKK20S |
| Primary Material Application | Cast Iron |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Material - Machining | Carbide |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Cutting Application | Turning |
| Chip-Breaker Code | RK6 |
| Included Angle | 60 Degrees |
| Primary Material Application ISO Code | K |
| Shape | Triangle |
| Material | Carbide |
| Package Quantity | 1 |
