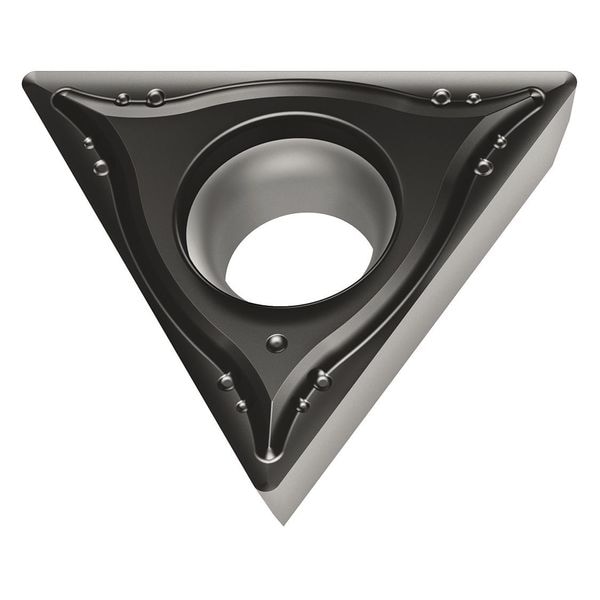

Triangle Turning Insert, Triangle, 3, TPMW, 2, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TPMW |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | WKK20S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | TPMW16T308-RK6 WKK20S |
| Relief Angle | 11 Degrees |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 2 |
| Nose Radius | 0.031 in |
| For Use With | Toolholders, Boring Bars |
| ANSI Number | VBGT2(2)0.5 |
| Mounting Hole Dia. | 0.173 in |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | Yes |
| Insert Thickness | 0.156 in |
| Mounting Style | Screw |
| Stainless (M) Compatibility | No |
| Coating | CVD |
| Cast Iron (K) Compatibility | Yes |
| Measurement System | Metric |
| Through Hole Inside Dia. | 4.4 mm |
| Shape | Triangle |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| ANSI Code | TPMW3(2.5)2-RK6 WKK20S |
| Manufacturer Grade | WKK20S |
| Chip-Breaker Code | RK6 |
| Primary Material Application ISO Code | K |
| Coating Process | CVD |
| Clearance Angle | 11 deg |
| Cutting Application | Turning |
| Included Angle | 60 Degrees |
| Depth of Cut | 0.6 to 4 mm |
| Primary Material Application | Cast Iron |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Thickness | 3.97 mm |
| Cutting Edge Length | 16.5 mm |
| Material - Machining | Carbide |
| Material | Carbide |
| Package Quantity | 1 |
