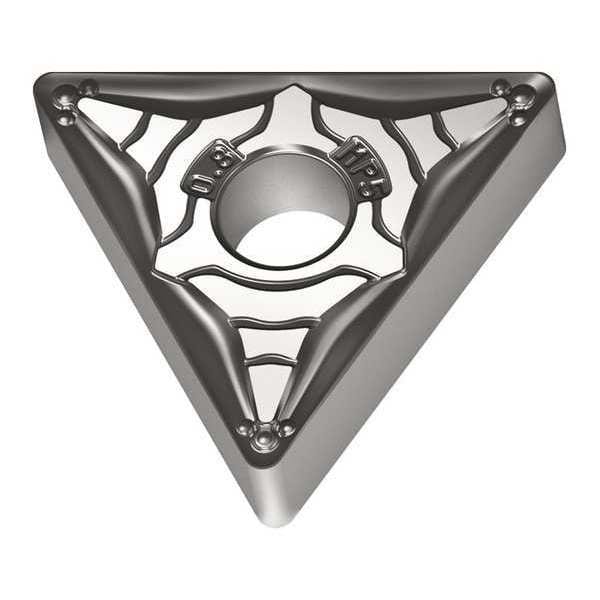

Triangle Turning Insert, Triangle, 5/8 in, TNMG, 1.2 mm, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TNMG |
| Inscribed Circle | 5 |
| Insert Size | 543 |
| Chip-Breaker | Yes |
| Grade | WPP20S |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | TNMG270612-MP5 WPP20S |
| Steel (P) Compatibility | Yes |
| Insert Thickness | 1/4 in |
| Hardened (H) Compatibility | No |
| Mounting Hole Dia. | 1/4 in |
| Relief Angle | 0 Degrees |
| For Use With | Toolholders, Boring Bars |
| Cast Iron (K) Compatibility | Yes |
| ANSI Number | TNMG542 |
| Mounting Style | Clamp |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 2 |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Stainless (M) Compatibility | No |
| Nose Radius | 0.047 in |
| Coating | CVD |
| Non Ferrous (N) Compatibility | No |
| ANSI Code | TNMG543-MP5 WPP20S |
| Shape | Triangle |
| Measurement System | Metric |
| Chip-Breaker Code | MP5 |
| Thickness | 6.35 mm |
| Primary Material Application ISO Code | P |
| Depth of Cut | 1 to 7 mm |
| Material - Machining | Carbide |
| Insert Holding Type | Straight Hole |
| Secondary Material Application ISO Code | K |
| Secondary Material Application | Cast Iron |
| Included Angle | 60 Degrees |
| Manufacturer Grade | WPP20S |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Cutting Edge Length | 27.5 mm |
| Clearance Angle | 0 deg |
| Through Hole Inside Dia. | 6.35 mm |
| Coating Process | CVD |
| Cutting Application | Turning |
| Primary Material Application | Steel |
| Material | Carbide |
| Package Quantity | 1 |
