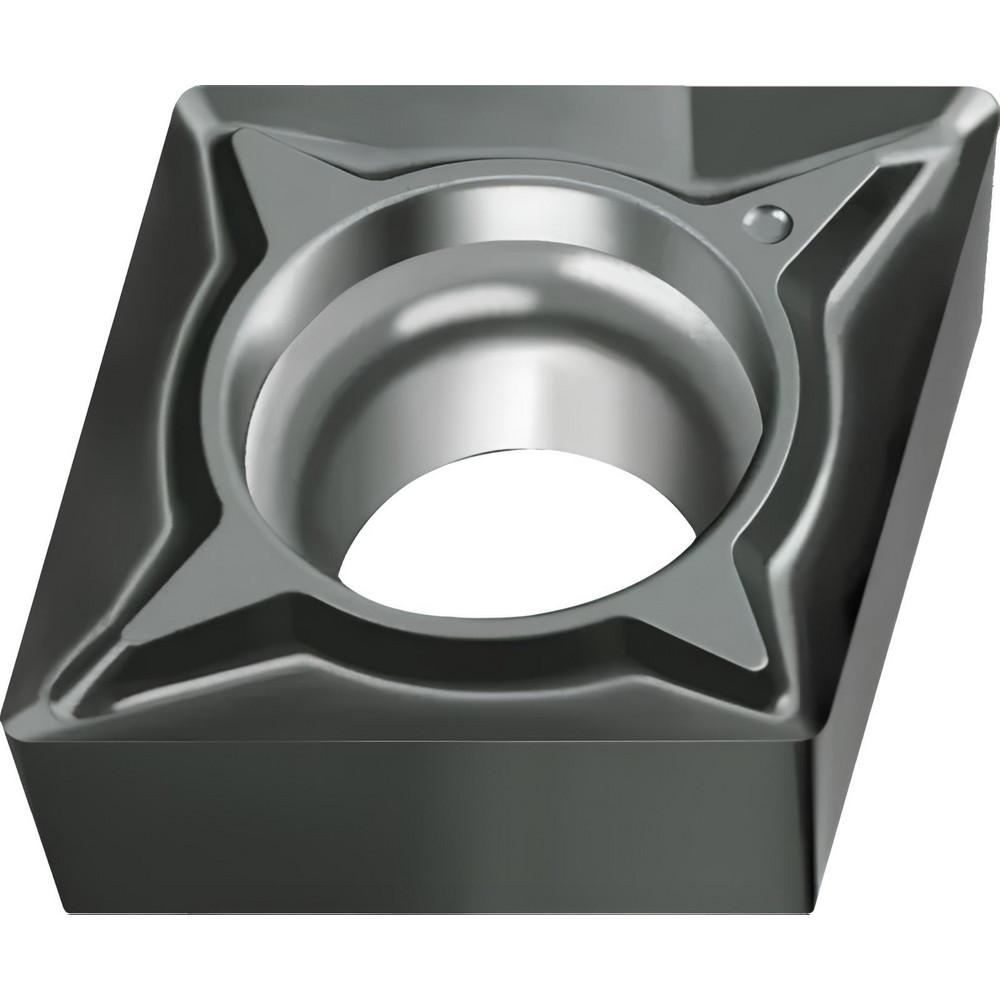

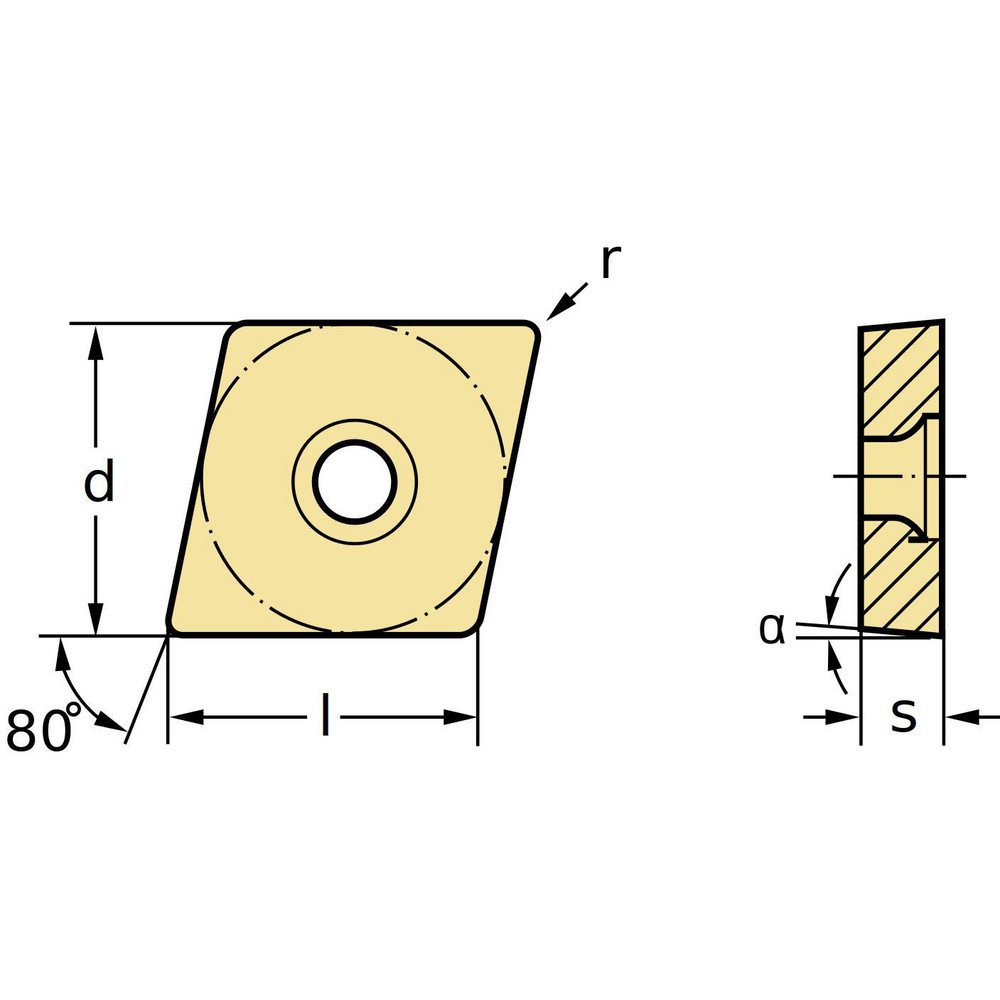

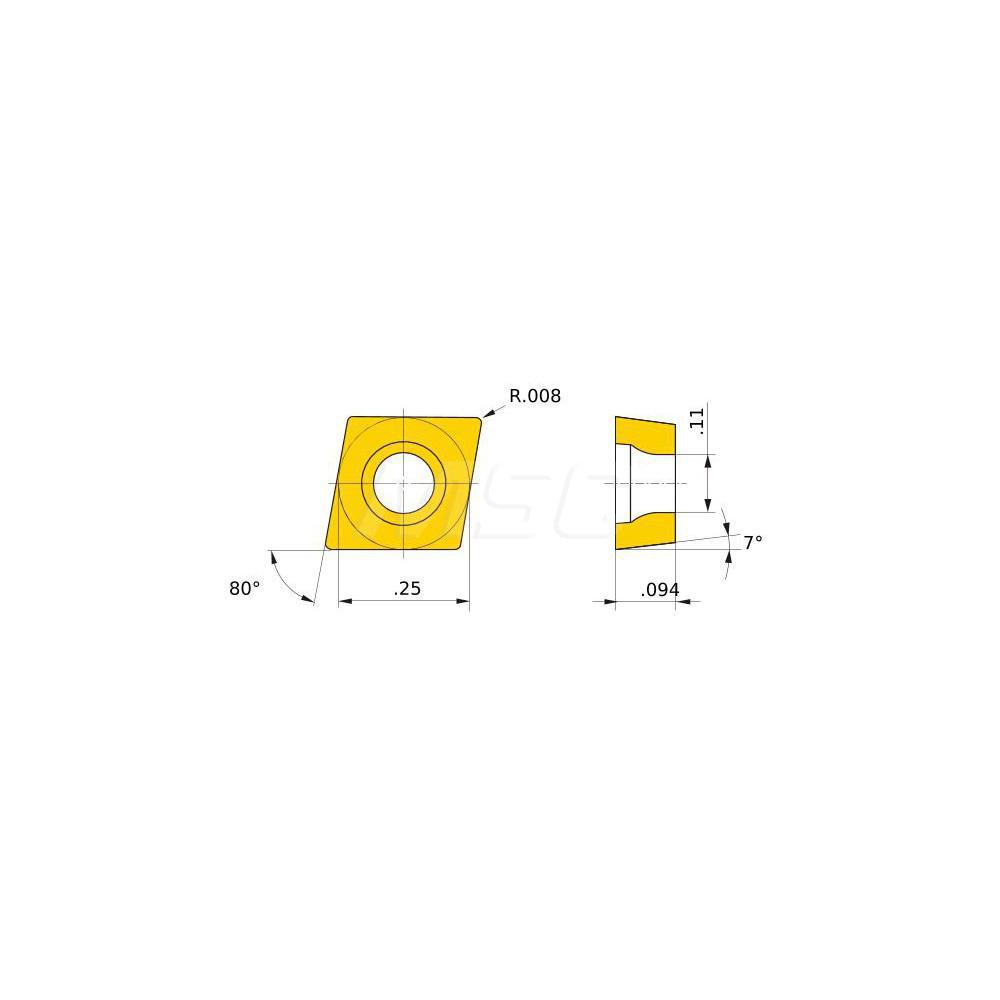

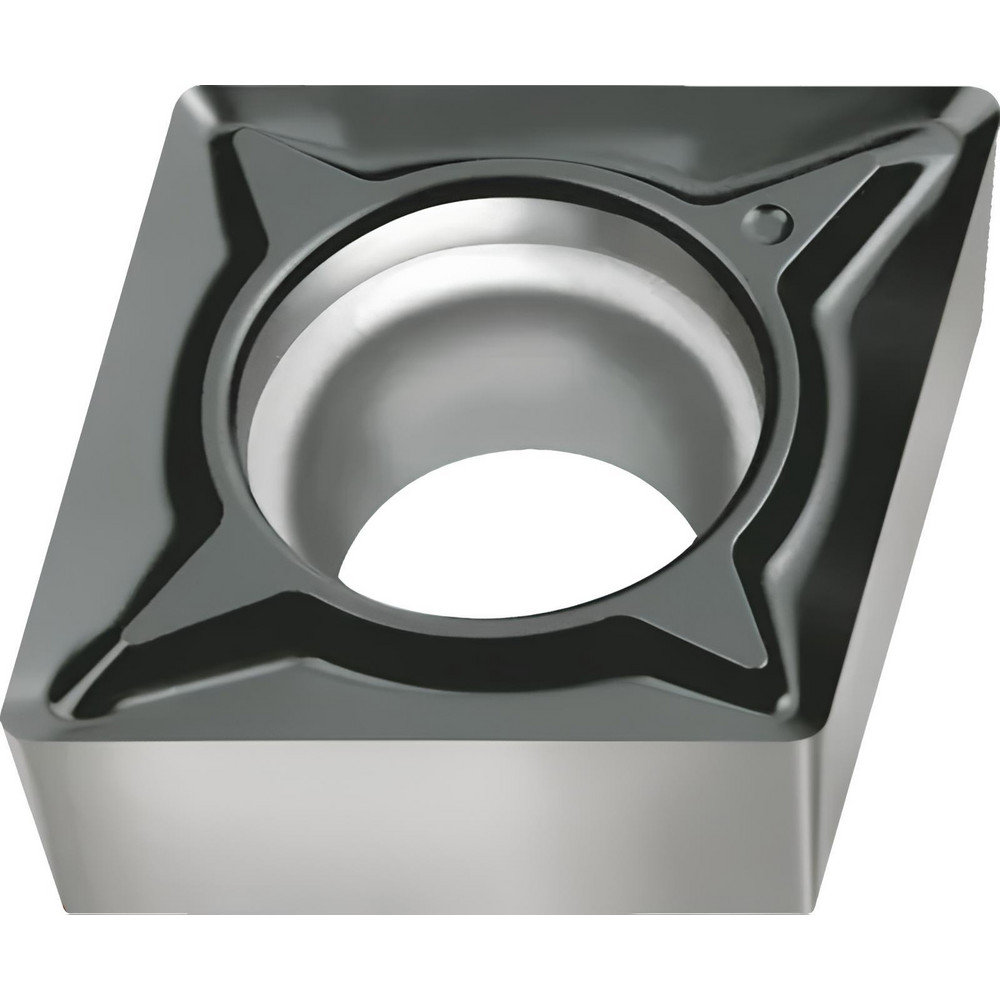

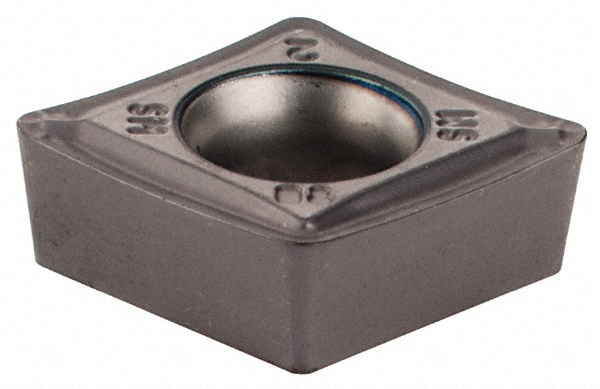

TiAlN Finish, Neutral, 0.2540" Long, 0.2500" Inscribed Circle, 0.0040" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CCGT-FN2
| Insert Style | CCGT |
|---|---|
| ISO Size Code | 060201 |
| ANSI Size Code | 21.50.2 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Insert Material | Carbide |
| Manufacturer Grade | WNN10 |
| Coating/Finish | TiAlN |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Insert Hand | Neutral |
| Series | CCGT-FN2 |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.2540 |
| ISO Insert Code | CCGT060201 |
| ANSI Insert Code | CCGT21.50.2 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2540 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Iso Code | CCGT060201-FN2 WNN10 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6955640 |
| Material Grade | P01; N10; M01 |
| Proprietary Coating Designation | WNN10 |
| Lead Angle | 80 |
| Coating Classification | PVD |
| Chip Breaker | FN2 |
| Rake Angle | 18 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCGT2(1.5)0.2-FN2 WNN10 |
| Width (Decimal Inch - 4 Decimals) | 0.2540 |
| Width (mm - 2 Decimals) | 6.45 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.2 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 31005481 |
