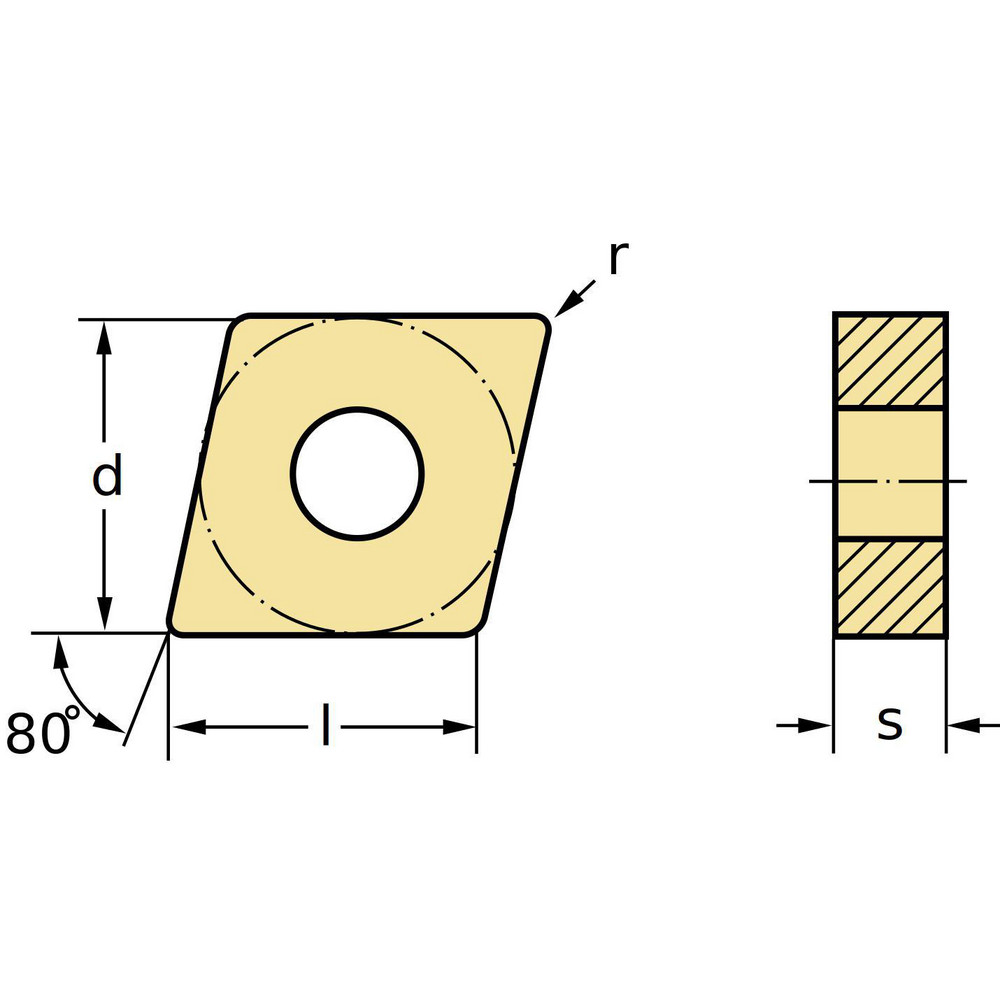

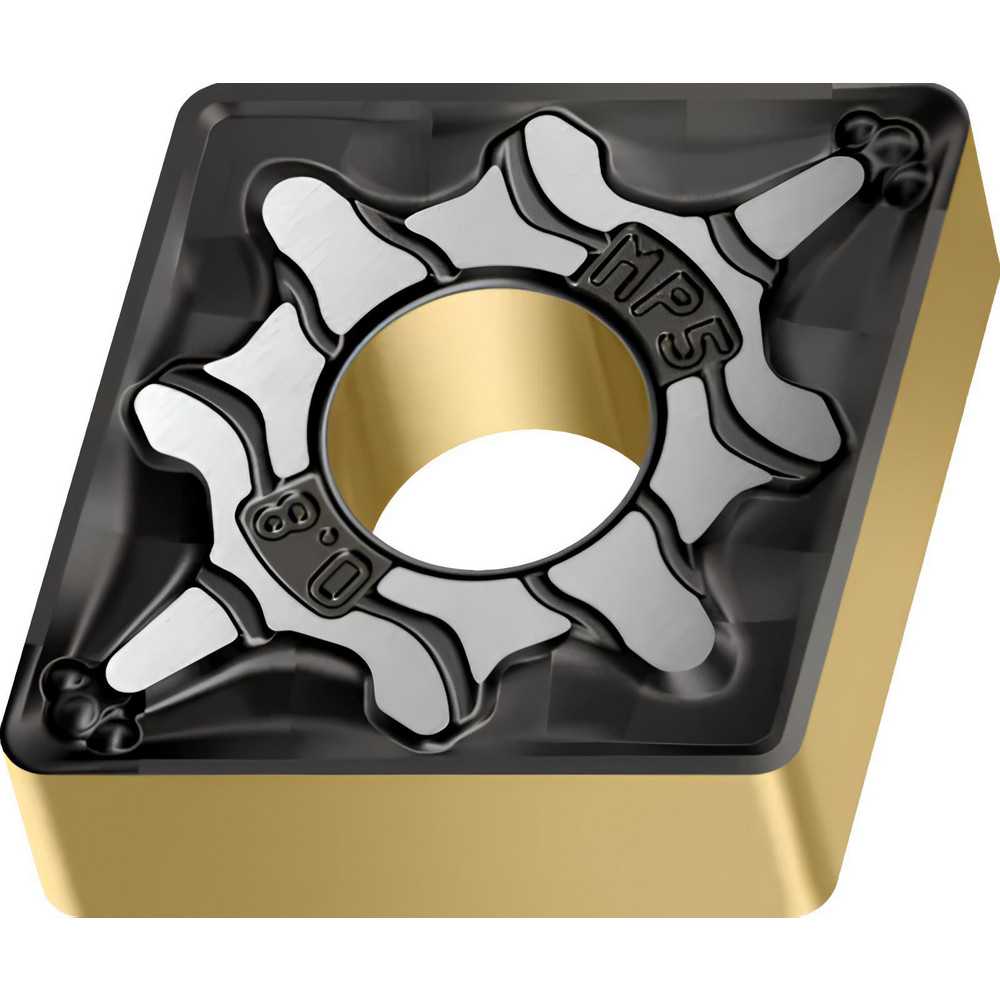

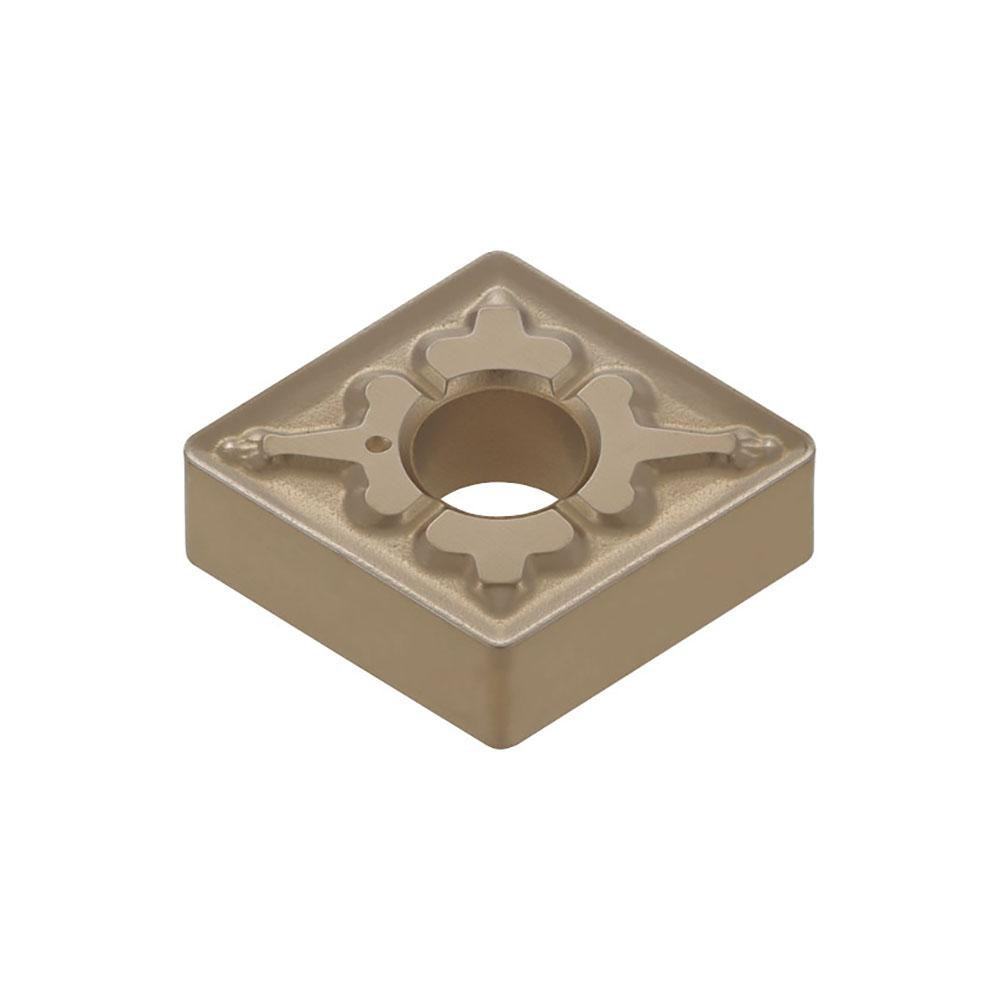

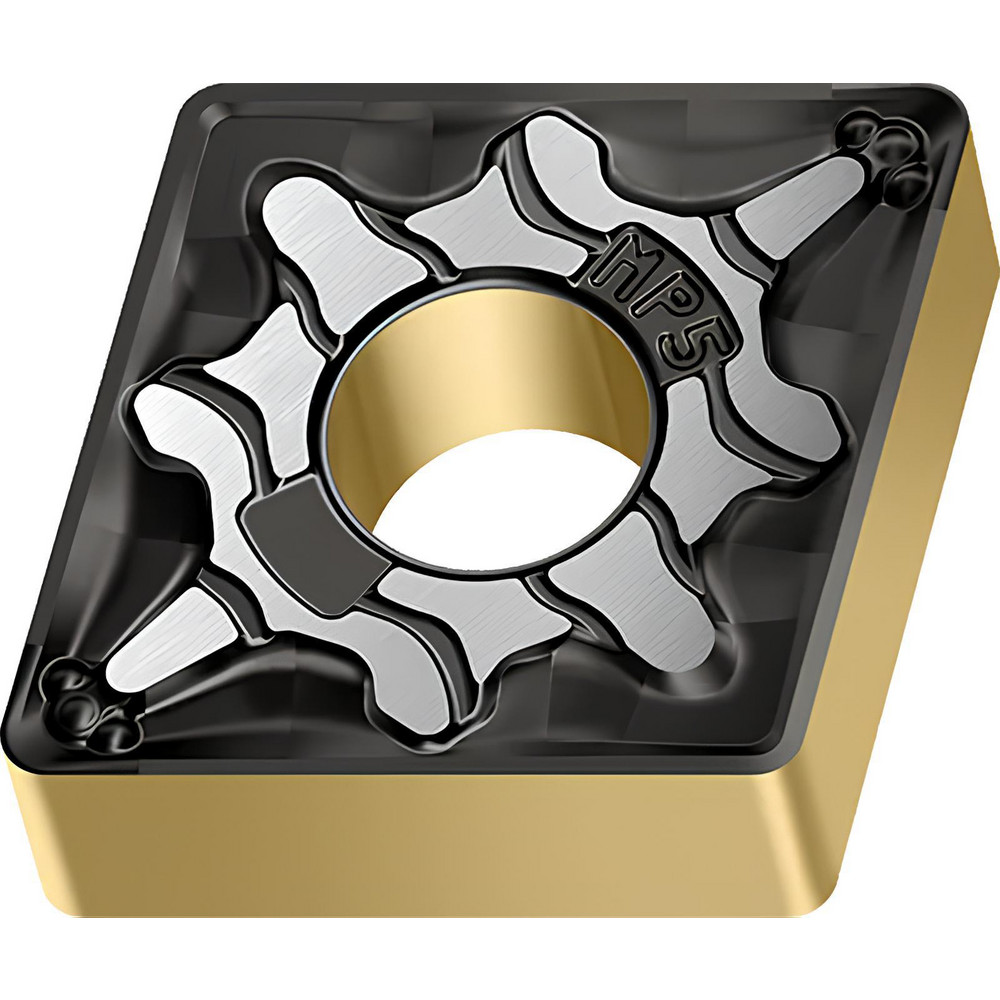

Al2O3, TiCN & TiN Finish, Neutral, 0.5080" Long, 0.5000" Inscribed Circle, 0.0315" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CNMG-MP5
| Insert Style | CNMG |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Manufacturer Grade | WPP30G |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | CNMG-MP5 |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.5080 |
| ISO Insert Code | CNMG120408 |
| ANSI Insert Code | CNMG432 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | CNMG120408-MP5 WPP30G |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 8115570 |
| Material Grade | K40; M20; P30 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 80 |
| Coating Classification | CVD |
| Chip Breaker | MP5 |
| Rake Angle | 15 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CNMG432-MP5 WPP30G |
| Width (Decimal Inch - 4 Decimals) | 0.5080 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 14098230 |
