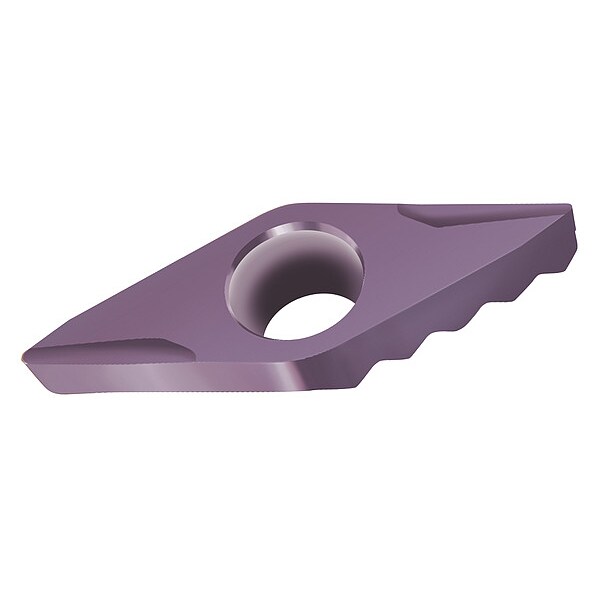

Turning Insert, Diamond, 3, VCGX, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VCGX |
| Inscribed Circle | 3 |
| Insert Size | 3 |
| Chip-Breaker | CFR |
| Grade | WXP30 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | VCGX0902ACFR WXP30 |
| Hardened (H) Compatibility | Yes |
| No. of Edges | 2 |
| Relief Angle | 7 Degrees |
| Workpiece Compatibility | Cast Iron (K), Hardened (H), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Cutting Direction | Right Hand |
| Mounting Style | Screw |
| Coating | PVD |
| For Use With | Toolholders, Boring Bars |
| Stainless (M) Compatibility | Yes |
| ANSI Number | VCGX3 |
| Steel (P) Compatibility | Yes |
| Nose Radius | 0.008 in |
| Cast Iron (K) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Insert Thickness | 0.787 in |
| Non Ferrous (N) Compatibility | Yes |
| Mounting Hole Dia. | 0 in |
| Material | Carbide |
| Package Quantity | 1 |
