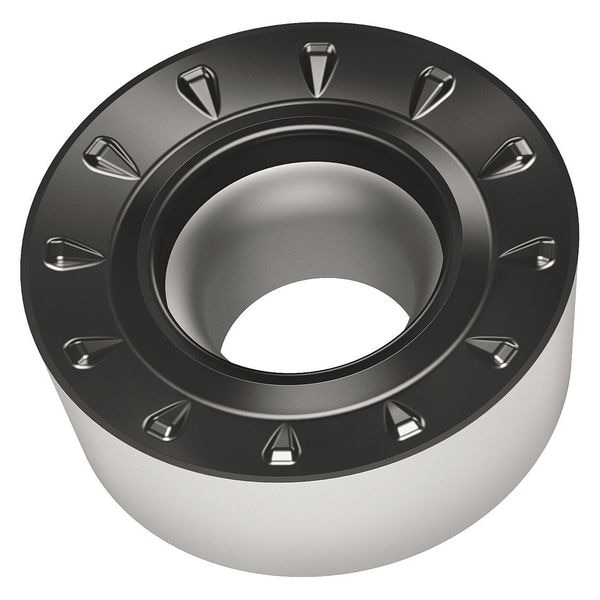

Turning Insert, Round, 0.2344 in, RCMT, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RCMT |
| Inscribed Circle | 0.2344 in |
| Chip-Breaker | RK4 |
| Grade | WKK20S |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | RCMT0602M0 |
| No. of Edges | 4 |
| Relief Angle | 7 Degrees |
| For Use With | Toolholders, Boring Bars |
| Coating | CVD |
| Non Ferrous (N) Compatibility | No |
| Mounting Hole Dia. | 0.11 in |
| Insert Thickness | 0.094 in |
| Steel (P) Compatibility | No |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Stainless (M) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Nose Radius | 0.047 in |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Mounting Style | Screw |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Material | Carbide |
| Package Quantity | 1 |
