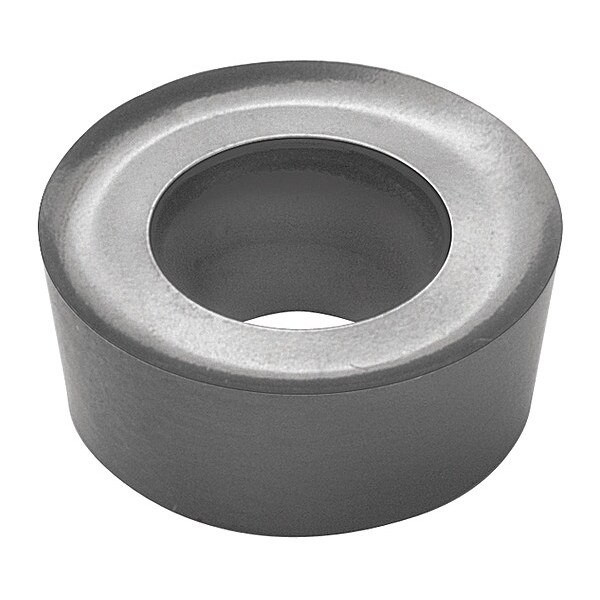

Turning Insert, Round, 0.3125 in, RCGT, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RCGT |
| Inscribed Circle | 5/16 in |
| Insert Size | 0803M0 |
| Chip-Breaker | PM2 |
| Grade | WK1 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | RCGT0803M0-PM2WK1 |
| Cutting Direction | Neutral |
| Mounting Style | Screw Clamp |
| Stainless (M) Compatibility | No |
| ANSI Number | N/A |
| Coating | Uncoated |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Steel (P) Compatibility | No |
| Workpiece Compatibility | Nonferrous (N) |
| Hardened (H) Compatibility | No |
| No. of Edges | Variable |
| For Use With | Series SRDCN and SRSCR Holders |
| Non Ferrous (N) Compatibility | Yes |
| Insert Thickness | 1/8 in |
| Relief Angle | 7 Degrees |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Primary Material Application ISO Code | N |
| Material | Carbide |
| Package Quantity | 1 |
