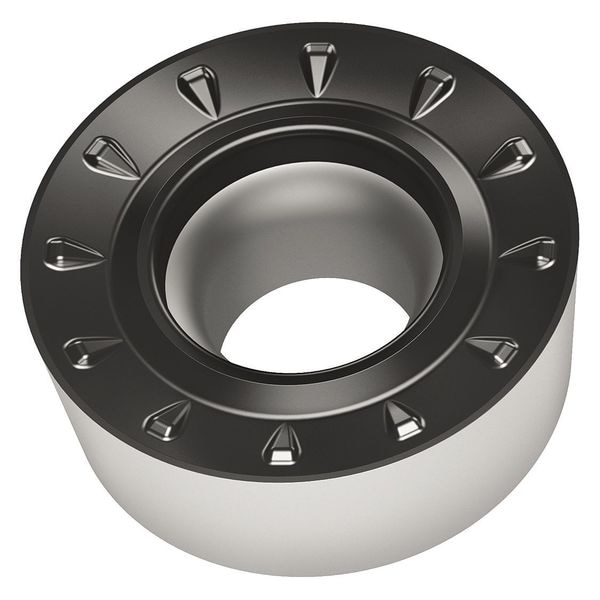

Turning Insert, Round, 2, RCMT, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RCMT |
| Inscribed Circle | 2 |
| Insert Size | 35.5 |
| Chip-Breaker | RM4 |
| Grade | WSM20S |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | RCMT060300 |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Mounting Style | Screw |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| Cast Iron (K) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| ANSI Number | RCMT3(2.5) |
| Super Alloy (S) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Nose Radius | 1/8 in |
| Mounting Hole Dia. | 0.11 in |
| Cutting Direction | Neutral |
| Coating | PVD |
| No. of Edges | 4 |
| Steel (P) Compatibility | No |
| Relief Angle | 7 Degrees |
| Insert Thickness | 1/8 in |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Primary Material Application ISO Code | M, S |
| Material | Carbide |
| Package Quantity | 1 |
