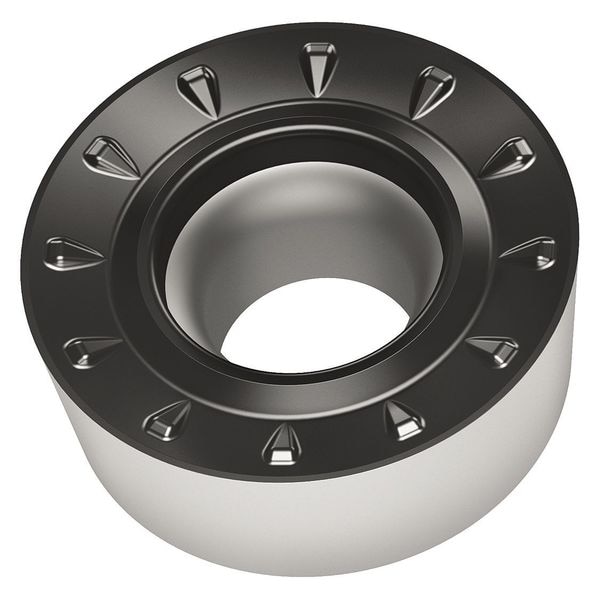

Turning Insert, Round, 3, RCMT, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RCMT |
| Inscribed Circle | 3 |
| Chip-Breaker | RK4 |
| Grade | WKK10S |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | RCMT10T3M0 |
| Steel (P) Compatibility | No |
| Hardened (H) Compatibility | No |
| Nose Radius | 0.197 in |
| Super Alloy (S) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Hardened (H) |
| Insert Thickness | 0.156 in |
| Cutting Direction | Neutral |
| Mounting Style | Screw |
| Stainless (M) Compatibility | Yes |
| Relief Angle | 7 Degrees |
| For Use With | Toolholders, Boring Bars |
| No. of Edges | 4 |
| Cast Iron (K) Compatibility | No |
| Coating | CVD |
| Mounting Hole Dia. | 0.173 in |
| Non Ferrous (N) Compatibility | No |
| Primary Material Application ISO Code | K |
| Primary Material Application | Cast Iron |
| Material | Carbide |
| Package Quantity | 1 |
