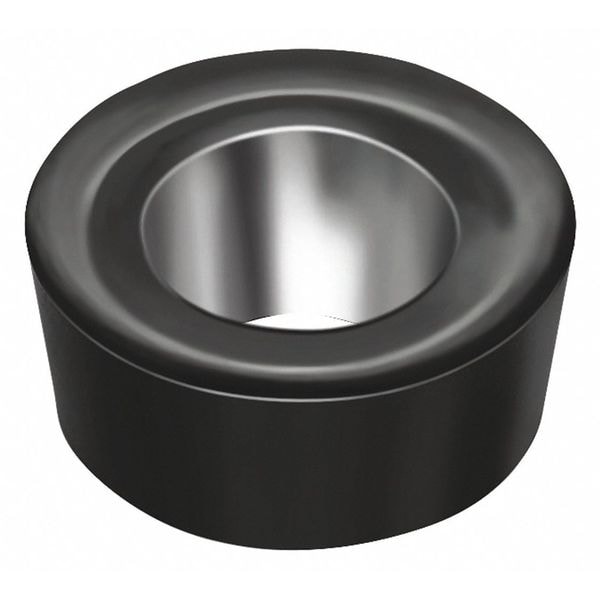

Turning Insert, Round, 4, RCGT, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RCGT |
| Inscribed Circle | 4 |
| Insert Size | 43 |
| Chip-Breaker | MN2 |
| Grade | WNN10 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | RCGT120400-MN2 WNN10 |
| Coating | Uncoated |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Non Ferrous (N) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| No. of Edges | 4 |
| Insert Thickness | 0.187 in |
| Workpiece Compatibility | Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Steel (P) Compatibility | Yes |
| Nose Radius | 1/4 in |
| For Use With | Toolholders, Boring Bars |
| Cutting Direction | Neutral |
| ANSI Number | RCGT43-MN2 WNN10 |
| Stainless (M) Compatibility | Yes |
| Relief Angle | 7 Degrees |
| Mounting Style | Screw |
| Mounting Hole Dia. | 0.173 in |
| Primary Material Application ISO Code | N |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Aluminum |
| Material | Carbide |
| Package Quantity | 1 |
