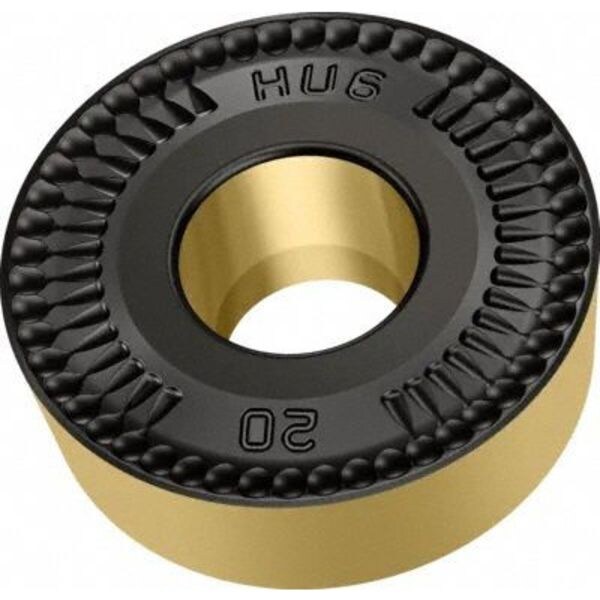

Turning Insert, Round, 8, RCMX, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RCMX |
| Inscribed Circle | 8 |
| Chip-Breaker | HU6 |
| Grade | WPP10S |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Positive |
| ISO Number | RCMX2507M0 |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Mounting Style | Screw |
| For Use With | Toolholders, Boring Bars |
| No. of Edges | 4 |
| Coating | CVD |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Cutting Direction | Neutral |
| Mounting Hole Dia. | 0.285 in |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.492 in |
| Insert Thickness | 0.313 in |
| Relief Angle | 7 Degrees |
| Super Alloy (S) Compatibility | Yes |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Material | Carbide |
| Package Quantity | 1 |
