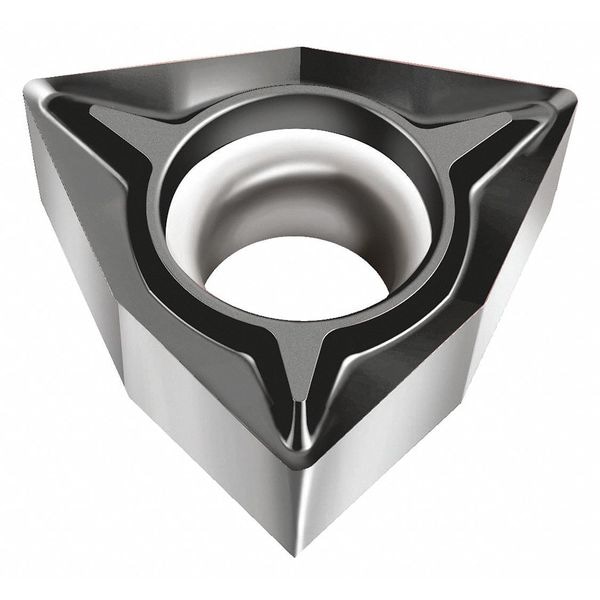

Turning Insert, Trigon, 1.8, WCGT, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WCGT |
| Inscribed Circle | 1.8 |
| Insert Size | 1.81.51 |
| Chip-Breaker | Yes |
| Grade | WSM21 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | WCGT030204-FM2 WSM21 |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| ANSI Number | WCGT1.8(1.5)1-FM2 WSM21 |
| Non Ferrous (N) Compatibility | No |
| Coating | PVD |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| Cutting Direction | Neutral |
| Insert Thickness | 0.094 in |
| Cast Iron (K) Compatibility | No |
| Nose Radius | 0.016 in |
| Mounting Hole Dia. | 0.098 in |
| Super Alloy (S) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Mounting Style | Screw |
| No. of Edges | 3 |
| For Use With | Toolholders, Boring Bars |
| Relief Angle | 7 Degrees |
| Coating Process | PVD |
| Thickness | 1.5 |
| Measurement System | Metric |
| Included Angle | 80 Degrees |
| Shape | Trigon |
| Manufacturer Grade | WSM21 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Primary Material Application ISO Code | P, M, S |
| Finish - Machining | TiAlN |
| Chip-Breaker Code | FM2 |
| Cutting Edge Length | 3.91 mm |
| Material - Machining | Carbide |
| ANSI Code | WCGT1.8(1.5)1-FM2 WSM21 |
| Depth of Cut | 0.2 to 2.5 mm |
| Primary Material Application | Titanium, Nickel, Stainless Steel, Steel |
| Clearance Angle | 7 deg |
| Through Hole Inside Dia. | 2.5 mm |
| Cutting Application | Turning |
| Material | Carbide |
| Package Quantity | 1 |
