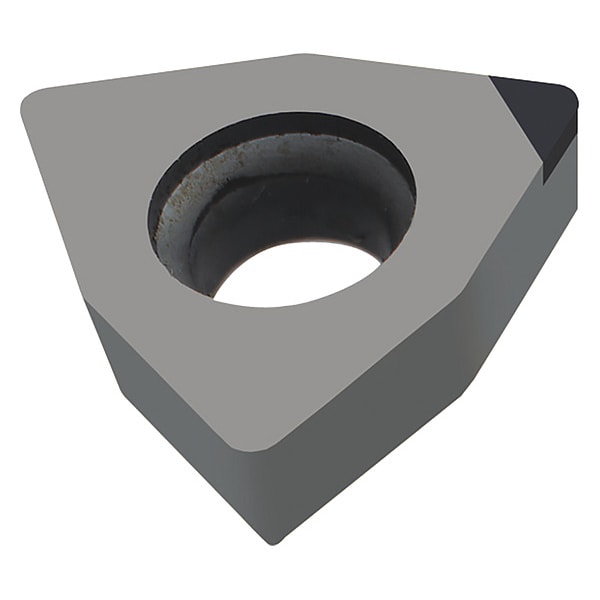

Turning Insert, Trigon, 2, WCMW, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WCMW |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | WCB50 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | WCMW040204 WCB50 |
| Relief Angle | 7 Degrees |
| ANSI Number | WCMW2(1.5)1 |
| No. of Edges | 3 |
| For Use With | Walter Toolholders and Boring Bars |
| Stainless (M) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Mounting Style | Screw Clamp |
| Insert Thickness | 0.0937 in |
| Coating | Uncoated |
| Workpiece Compatibility | Hardened (H) |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Shape | Trigon |
| Material - Machining | CBN |
| Manufacturer Grade | WCB50 |
| Secondary Material Application | Cast Iron |
| Feed Type | High |
| Clearance Angle | 7 deg |
| Primary Material Application | Hardened Steel |
| Cutting Edge Length | 4.3 mm |
| ANSI Code | WCMW2(1.5)1 WCB50 |
| Included Angle | 80 Degrees |
| Secondary Material Application ISO Code | K |
| Chip-Breaker Code | A27 |
| Primary Material Application ISO Code | H |
| Thickness | 1.5 |
| Cutting Application | Boring |
| Measurement System | Metric |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Material | Carbide |
| Package Quantity | 1 |
