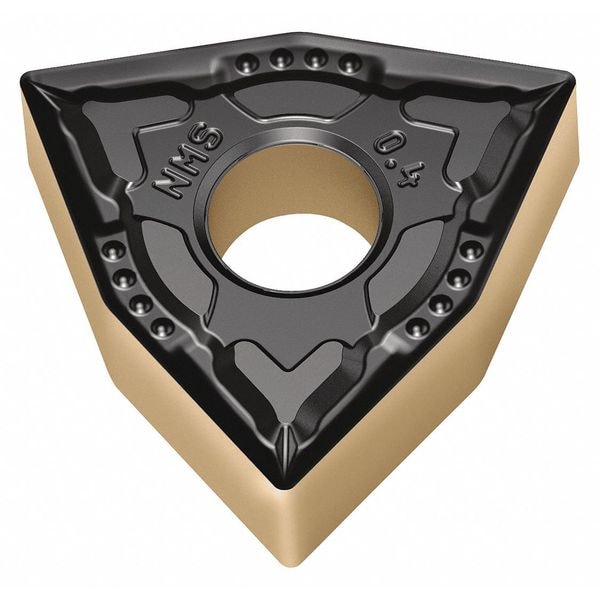

Turning Insert, Trigon, 3, WNMG, 2, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Inscribed Circle | 3 |
| Insert Size | 332 |
| Chip-Breaker | Yes |
| Grade | WSM10S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | WNMG060408-NMS WSM10S |
| Hardened (H) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Coating | PVD |
| No. of Edges | 6 |
| Super Alloy (S) Compatibility | Yes |
| Insert Thickness | 0.188 in |
| Cast Iron (K) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| ANSI Number | WNMG332-NMS WSM10S |
| Cutting Direction | Neutral |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Relief Angle | 0 Degrees |
| Nose Radius | 0.031 in |
| Steel (P) Compatibility | Yes |
| Mounting Style | Clamp |
| ANSI Code | WNMG332-NMS WSM10S |
| Finish - Machining | TiAlN+Al2O3+Al |
| Secondary Material Application | Steel |
| Insert Holding Type | Straight Hole |
| Material - Machining | Carbide |
| Included Angle | 80 Degrees |
| Number of Cutting Edges | 6 |
| Measurement System | Metric |
| Clearance Angle | 0 deg |
| Manufacturer Grade | WSM10S |
| Cutting Application | Turning |
| Thickness | 3 |
| Chip-Breaker Code | NMS |
| Through Hole Inside Dia. | 5.16 mm |
| Secondary Material Application ISO Code | P |
| Shape | Trigon |
| Depth of Cut | 0.8 to 3 mm |
| Coating Process | PVD |
| Primary Material Application | Titanium, Nickel, Stainless Steel |
| Cutting Edge Length | 6.52 mm |
| Primary Material Application ISO Code | M, S |
| Material | Carbide |
| Package Quantity | 1 |
