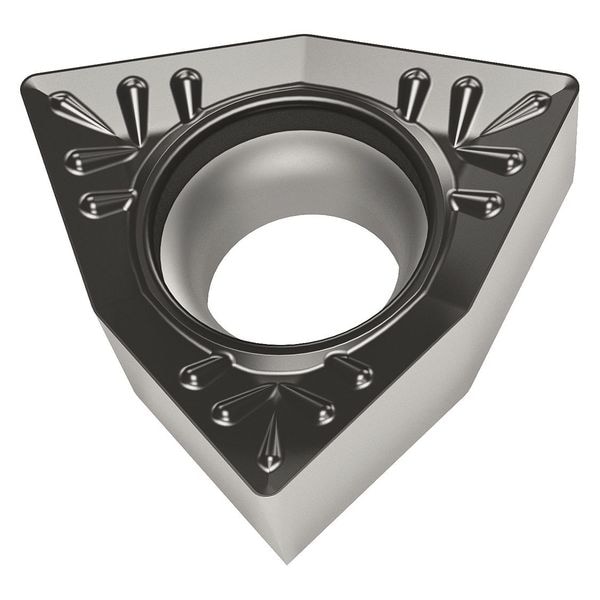

Turning Insert, Trigon, 4, WCMT, 2, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WCMT |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | WKK20S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | WCMT080408-RK4 WKK20S |
| Insert Thickness | 0.188 in |
| Stainless (M) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| ANSI Number | WCMT431 |
| Hardened (H) Compatibility | No |
| Coating | CVD |
| Mounting Style | Screw |
| No. of Edges | 2 |
| Nose Radius | 0.031 in |
| Mounting Hole Dia. | 0.217 in |
| Cast Iron (K) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Relief Angle | 7 Degrees |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Non Ferrous (N) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Cutting Direction | Neutral |
| Primary Material Application ISO Code | K |
| Manufacturer Grade | WKK20S |
| Shape | Trigon |
| Clearance Angle | 7 deg |
| Cutting Edge Length | 8.7 mm |
| Through Hole Inside Dia. | 5.5 mm |
| Primary Material Application | Cast Iron |
| Depth of Cut | 0.6 to 4 mm |
| Thickness | 3 |
| Finish - Machining | TiCN+Al2O3+TiCN |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Coating Process | CVD |
| ANSI Code | WCMT432-RK4 WKK20S |
| Chip-Breaker Code | RK4 |
| Included Angle | 80 Degrees |
| Cutting Application | Turning |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Material | Carbide |
| Package Quantity | 1 |
