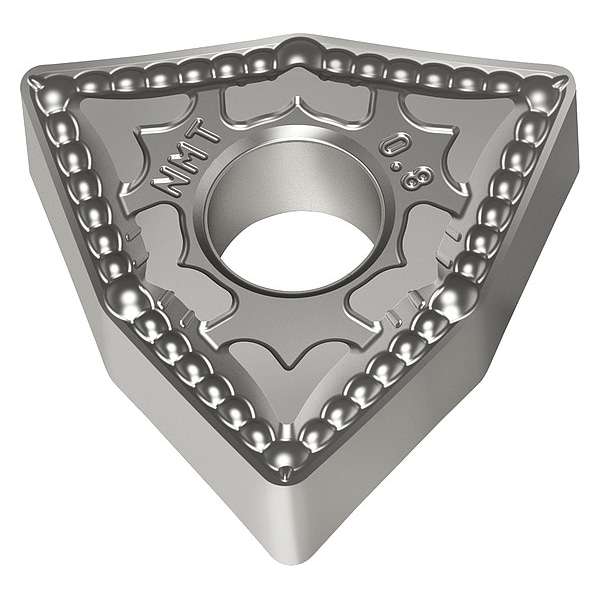

Turning Insert, Trigon, 4, WNMG, 2, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | WS10 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| ISO Number | WNMG080408-NMT WS10 |
| Hardened (H) Compatibility | No |
| Cutting Direction | Neutral |
| Coating | Uncoated |
| ANSI Number | WNMG432-NMT |
| Insert Thickness | 3/16 in |
| For Use With | Walter Toolholders and Boring Bars |
| Mounting Style | Screw Clamp |
| No. of Edges | 6 |
| Cast Iron (K) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Nose Radius | 0.031 in |
| Relief Angle | 0 Degrees |
| Workpiece Compatibility | Super Alloy (S) |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| ANSI Code | WNMG432-NMT WS10 |
| Primary Material Application ISO Code | S |
| Cutting Edge Length | 8.7 mm |
| Cutting Application | Turning |
| Depth of Cut | 0.8 to 4 mm |
| Thickness | 3 |
| Number of Cutting Edges | 6 |
| Chip-Breaker Code | NMT |
| Included Angle | 80 Degrees |
| Through Hole Inside Dia. | 5.16 mm |
| Primary Material Application | Titanium, Nickel |
| Clearance Angle | 0 deg |
| Shape | Trigon |
| Insert Holding Type | Straight Hole |
| Finish - Machining | Bright |
| Measurement System | Metric |
| Manufacturer Grade | WS10 |
| Material - Machining | Carbide |
| Material | Carbide |
| Package Quantity | 1 |
