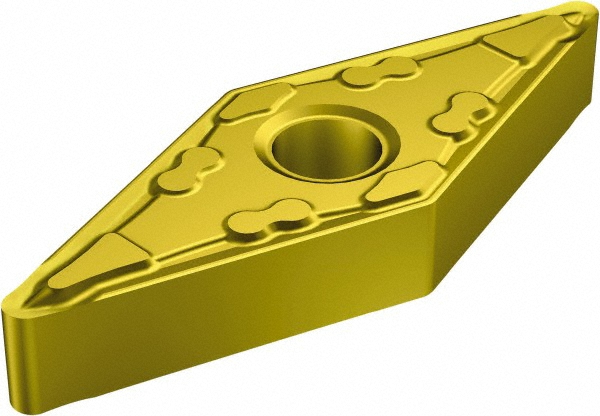

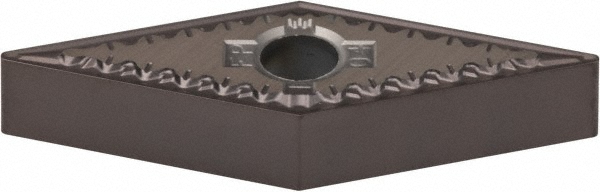

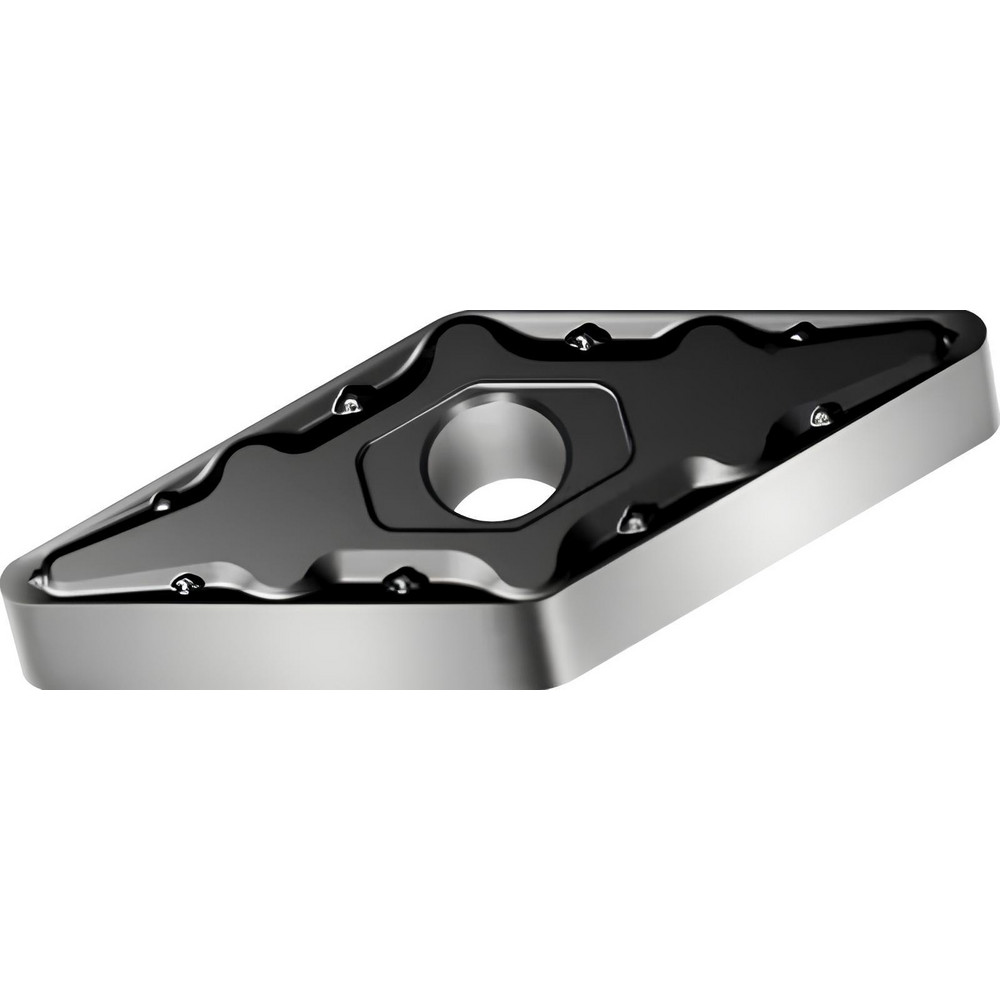

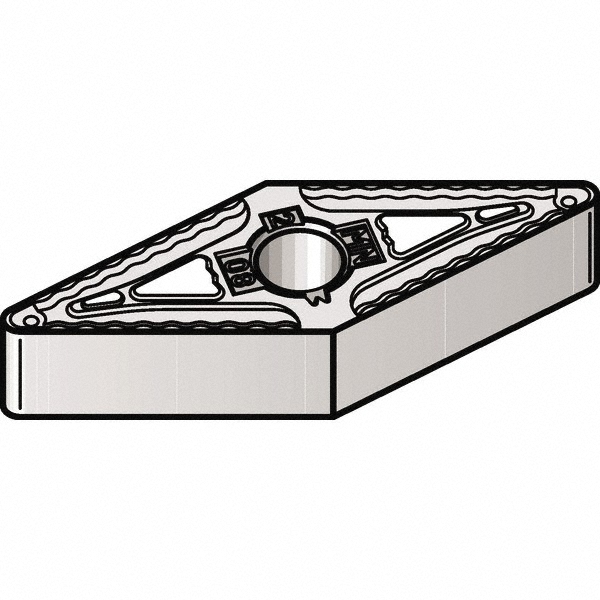

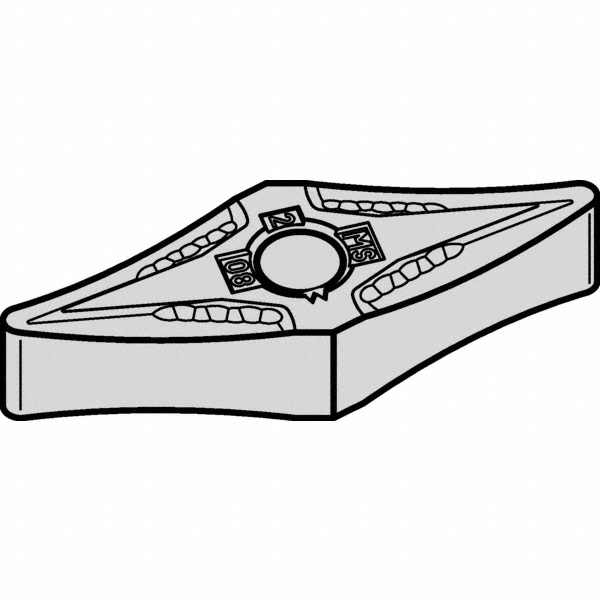

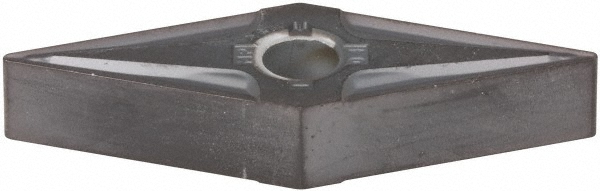

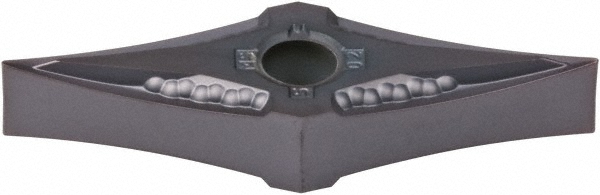

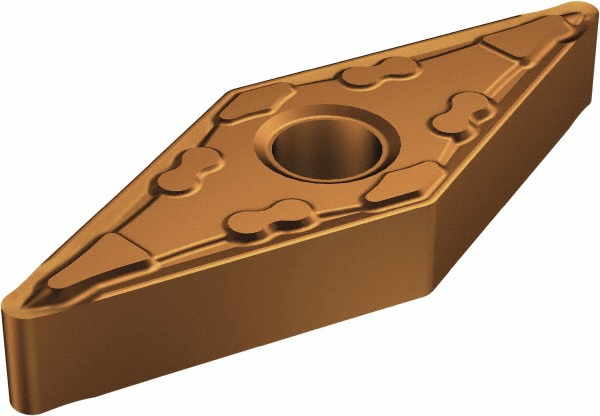

TiCN, Al2O3 & Al Finish, Neutral, 0.6540" Long, 0.3750" Inscribed Circle, 0.0157" Corner Radius, 35 deg V - Diamond (Rhombic) 35-Deg, Series VNMG-MM5

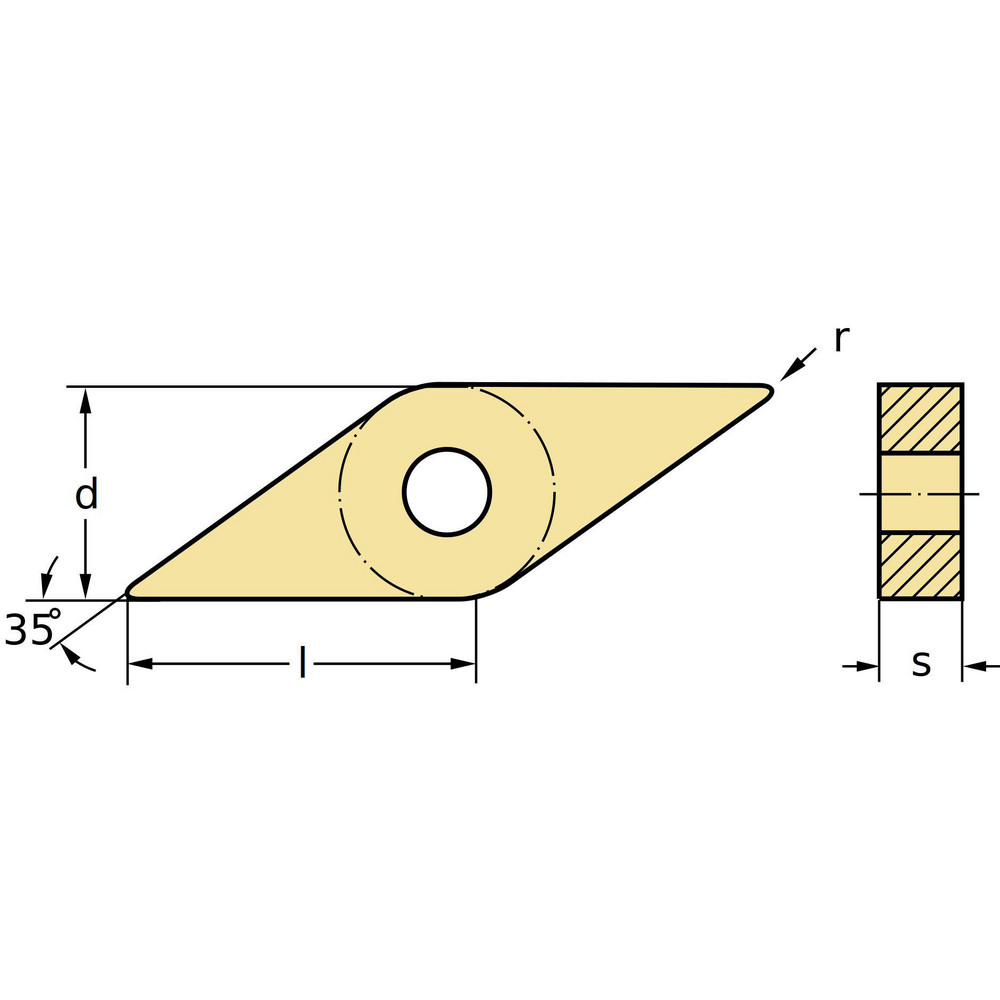

| Insert Style | VNMG |
|---|---|
| ISO Size Code | 160404 |
| ANSI Size Code | 331 |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Included Angle | 35 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |
| Manufacturer Grade | WSM20S |
| Coating/Finish | TiCN; Al; Al2O3 |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | VNMG-MM5 |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6540 |
| ISO Insert Code | VNMG160404 |
| ANSI Insert Code | VNMG331 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6540 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | VNMG160404-MM5 WSM20S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 7251975 |
| Material Grade | S20; M20; P20 |
| Proprietary Coating Designation | WSM20S |
| Lead Angle | 35 |
| Coating Classification | PVD |
| Chip Breaker | MM5 |
| Rake Angle | 20 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | VNMG331-MM5 WSM20S |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 16.61 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Back Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
| Country of Origin | Germany |
