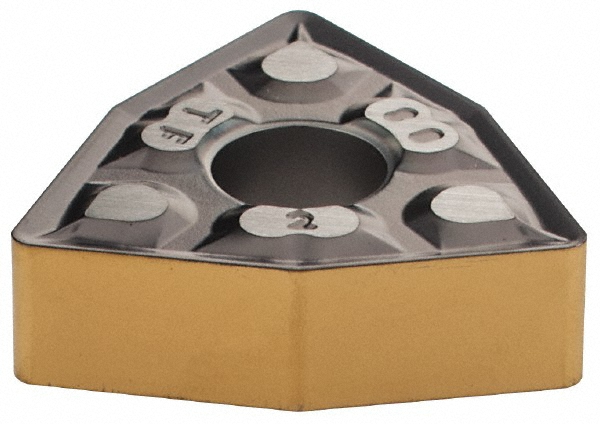

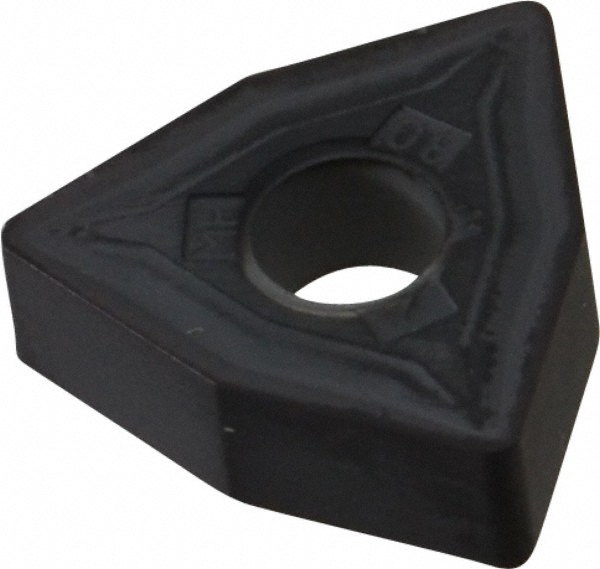

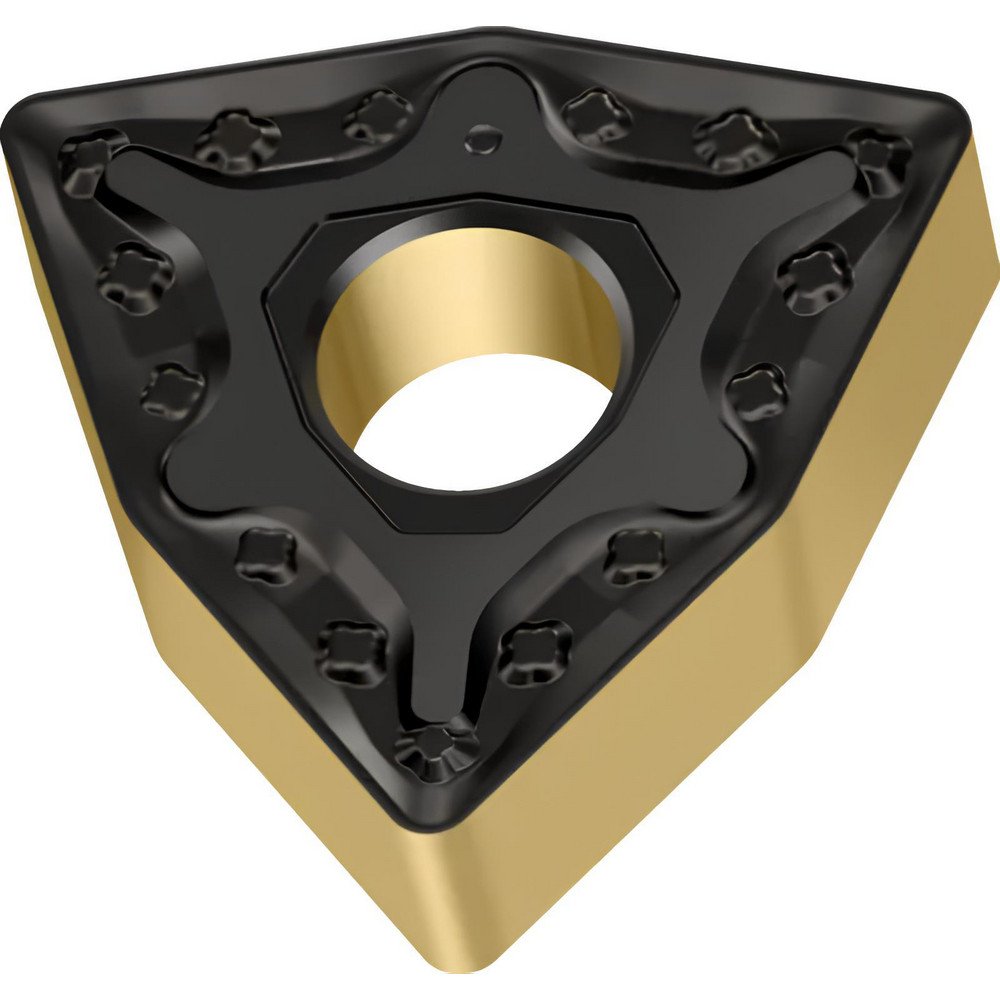

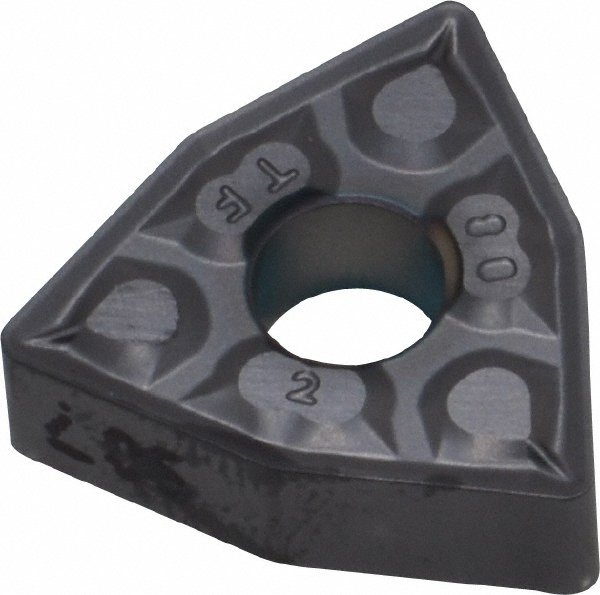

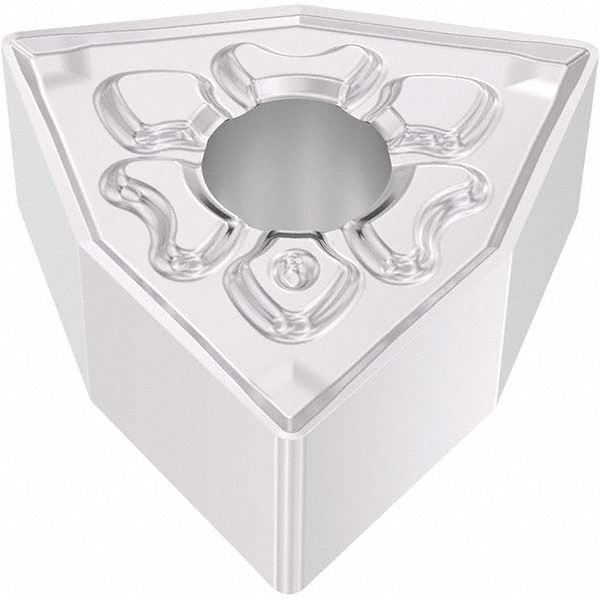

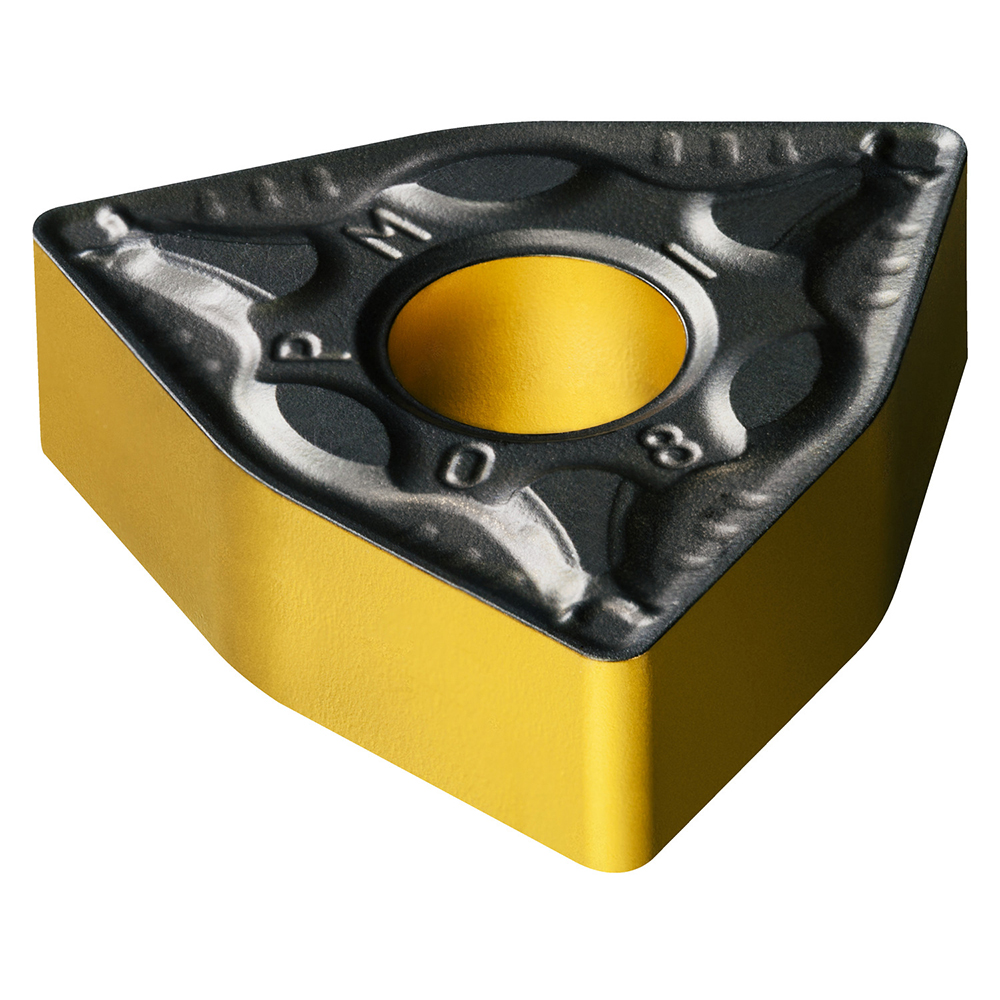

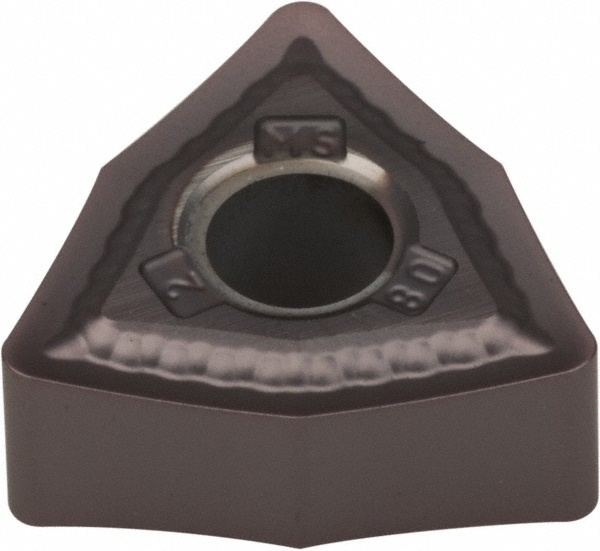

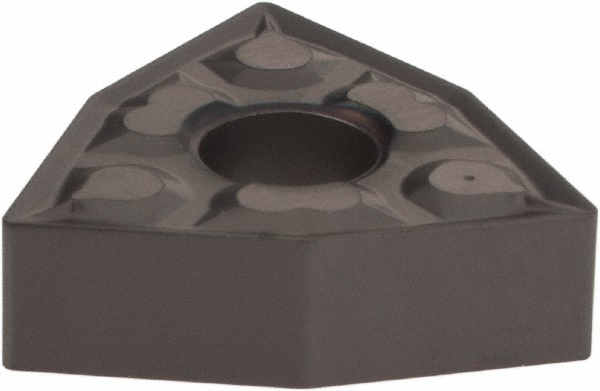

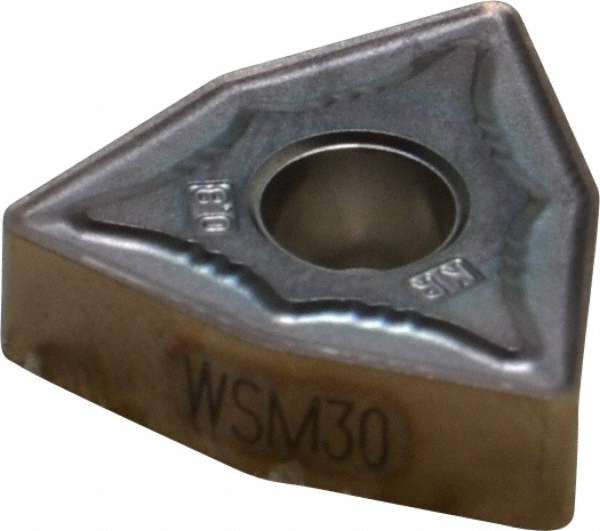

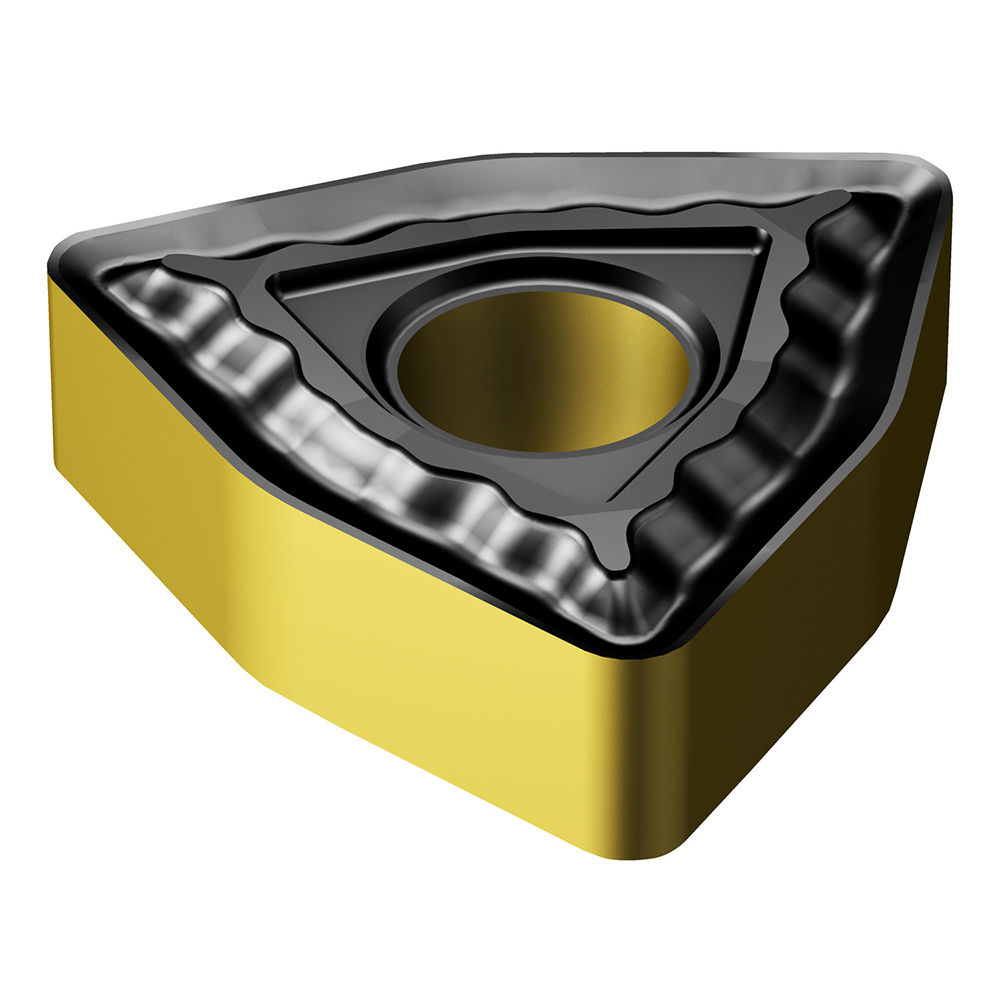

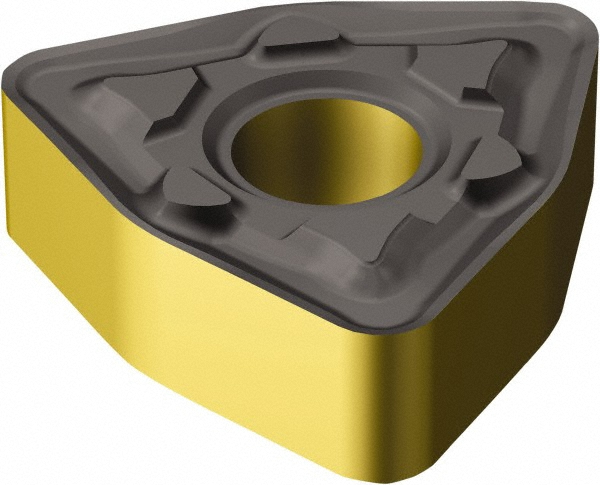

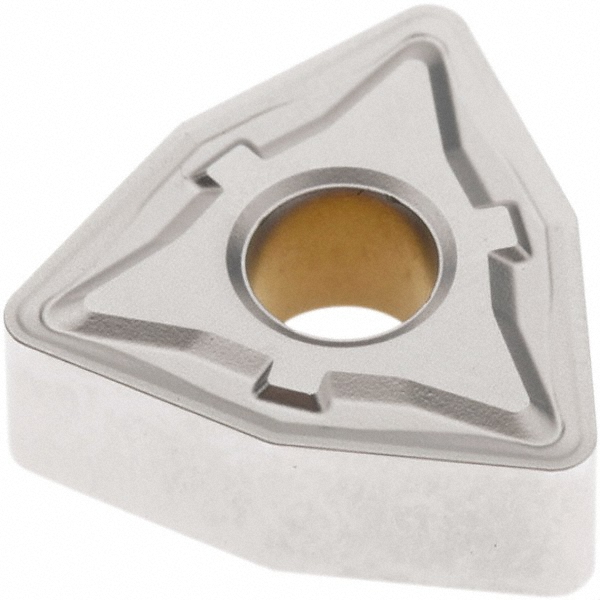

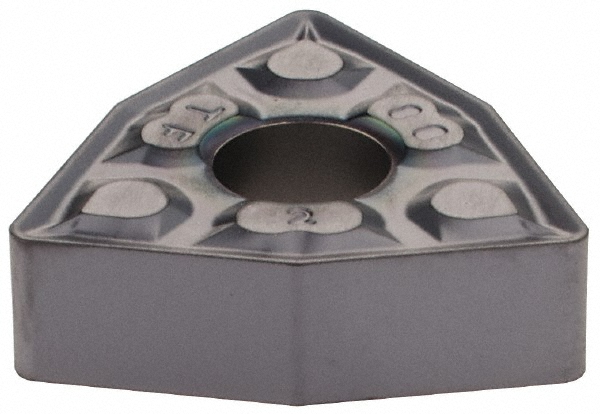

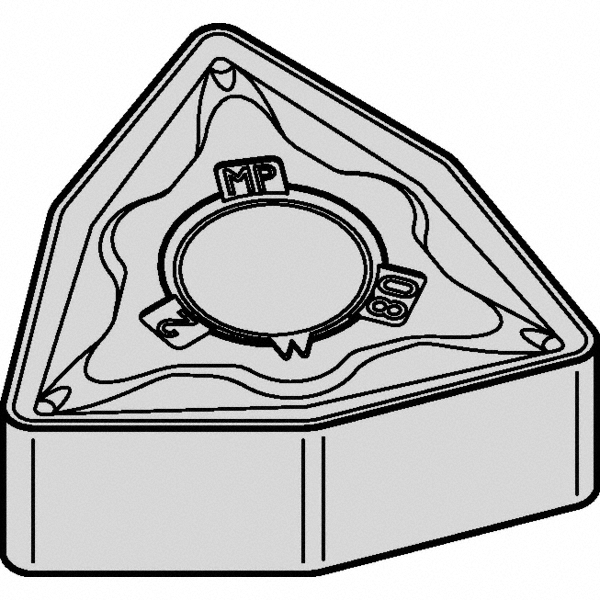

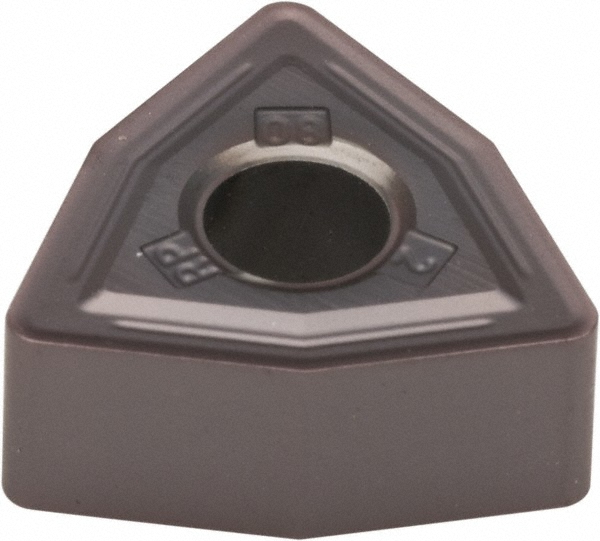

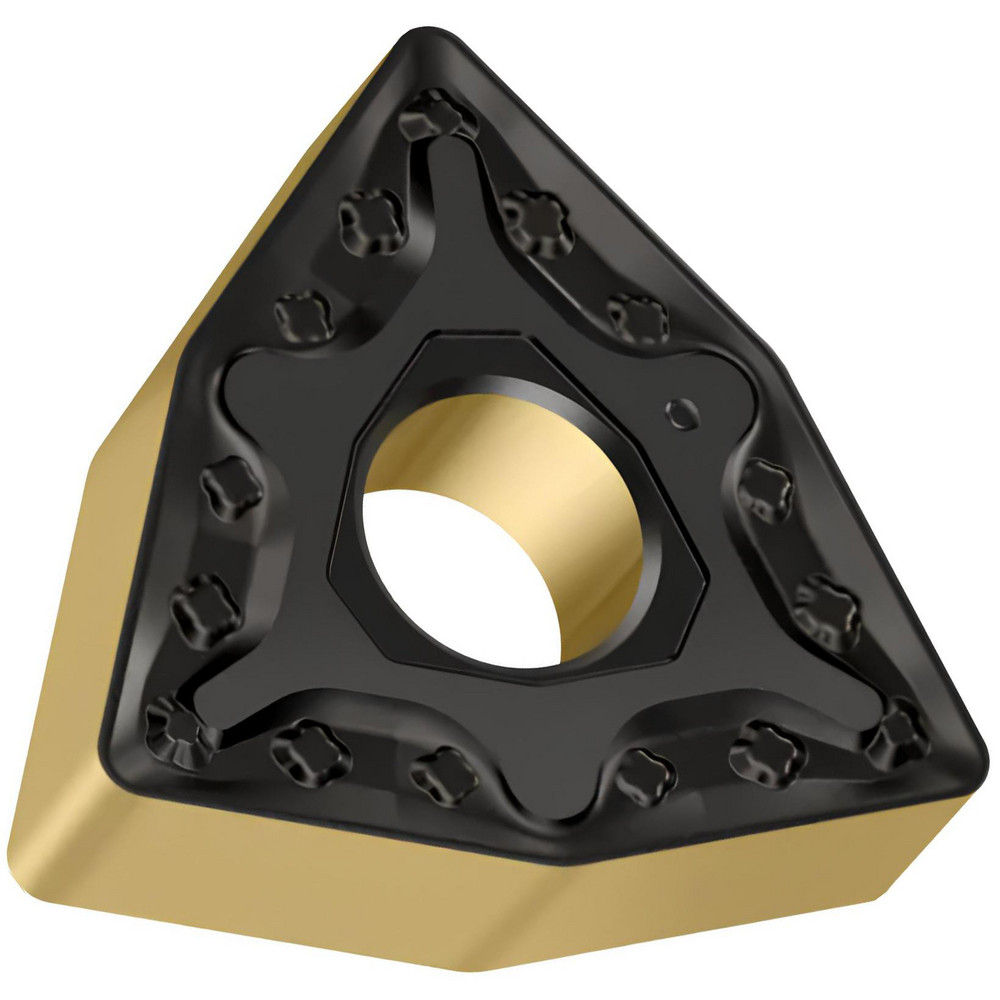

TiAlN, Al2O3 & ZrCN Finish, Neutral, 0.6840" Long, 0.5000" Inscribed Circle, 0.0315" Corner Radius, 80 deg W - Trigon 80-Deg, Series WNMG-NM4
| Insert Style | WNMG |
|---|---|
| ISO Size Code | 080402 |
| ANSI Size Code | 432 |
| Insert Shape | W - Trigon 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Manufacturer Grade | WSM20 |
| Coating/Finish | ZrCN; TiAlN; Al2O3 |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | WNMG-NM4 |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 6 |
| Side Clearance | Negative |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.13 |
| Maximum Depth of Cut (Decimal Inch) | 0.2278 |
| ISO Insert Code | WNMG080402 |
| ANSI Insert Code | WNMG432 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6840 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | WNMG080408-NM4 WSM20 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 5585373 |
| Material Grade | S20; M20; P20 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 80 |
| Coating Classification | PVD |
| Chip Breaker | NM4 |
| Rake Angle | 20 |
| Cutting Edge Style | Honed |
| Industry Standard Number | WNMG432-NM4 WSM20 |
| Width (Decimal Inch - 4 Decimals) | 0.6840 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Germany |
| MSC Number | MSC# 73818486 |
