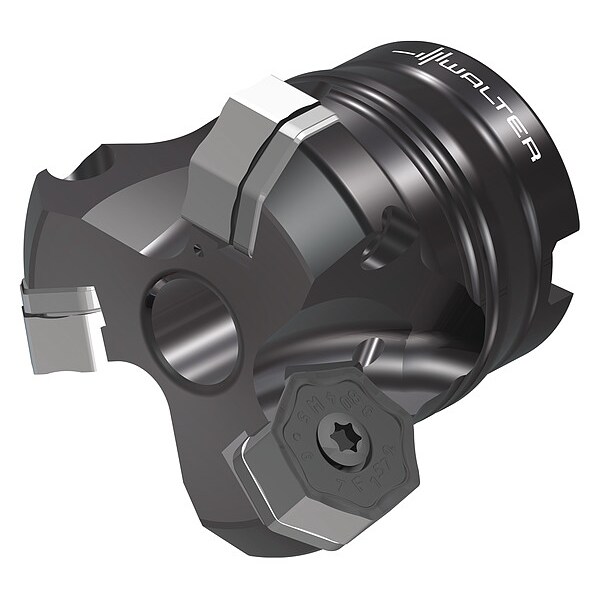

Walter - Face Milling Cutter negativ heptainsert
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.157 in |
| Overall Length | 1.575 in |
| Max. Cutting Dia. | 1.961 in |
| Side Cutting Edge Angle | 0 deg |
| Min. Cutting Dia. | 1.575 in |
| Standards | ISO 6462-A |
| Arbor Dia. | 5/8 in |
| Number of Inserts | 3 |
| Max. Speed | 12,800 rpm |
| ISO Number | M3024-040-B16-03-04 |
| Coolant Fed | Coolant Through |
| Hub Outside Dia. | 1-3/8 in |
| ANSI Code | M3024-040-B16-03-04 |
| Cutting Application | Face Milling |
| Insert Shape | Heptagon |
| Package Quantity | 1 |
