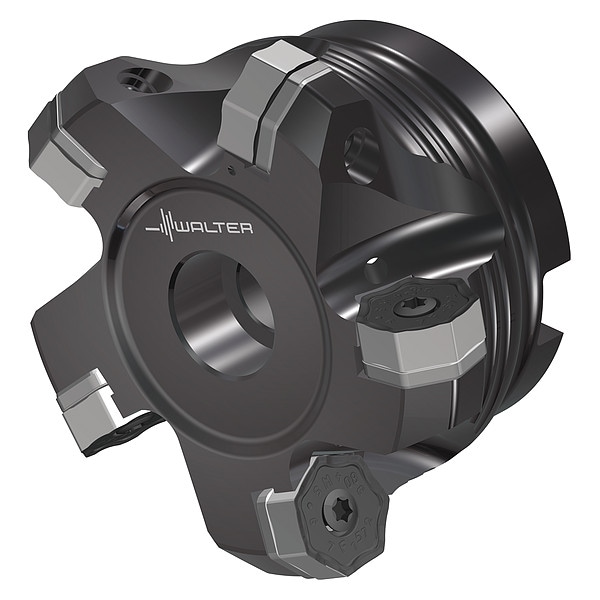

Walter - Face Milling Cutter negativ heptainsert
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.157 in |
| Overall Length | 1.575 in |
| Hub Outside Dia. | 2.126 in |
| Max. Speed | 10,000 rpm |
| Standards | ISO 6462-A |
| Coolant Fed | Coolant Through |
| ISO Number | M3024-063-B22-05-04 |
| Insert Shape | Heptagon |
| Arbor Dia. | 0.866 in |
| Max. Cutting Dia. | 2.866 in |
| Cutting Application | Face Milling |
| Min. Cutting Dia. | 2.48 in |
| Side Cutting Edge Angle | 0 deg |
| ANSI Code | M3024-063-B22-05-04 |
| Number of Inserts | 5 |
| Package Quantity | 1 |
