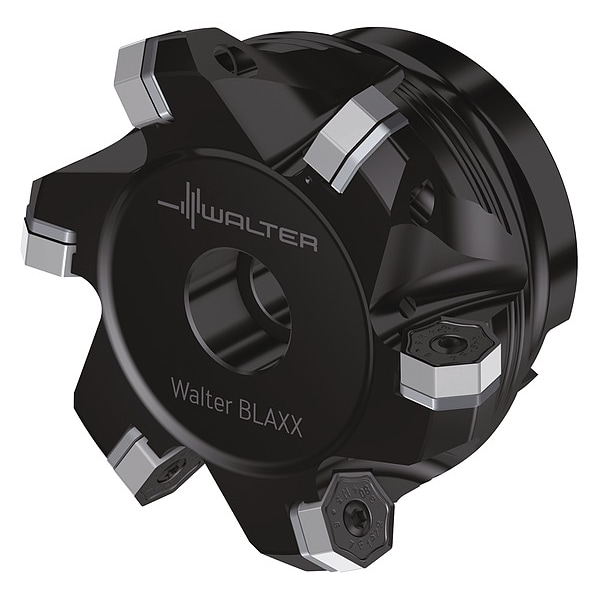

Walter - Face Milling Cutter negativ heptainsert
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.236 in |
| Overall Length | 1.969 in |
| Standards | ISO 6462-A |
| Coolant Fed | Coolant Through |
| Arbor Dia. | 1-1/4 in |
| Side Cutting Edge Angle | 0 deg |
| Number of Inserts | 7 |
| ANSI Code | M3024.102-B31-07-06 |
| Hub Outside Dia. | 3.22 in |
| Cutting Application | Face Milling |
| ISO Number | M3024.102-B31-07-06 |
| Min. Cutting Dia. | 4 in |
| Insert Shape | Heptagon |
| Max. Speed | 6,500 rpm |
| Max. Cutting Dia. | 4.506 in |
| Package Quantity | 1 |
