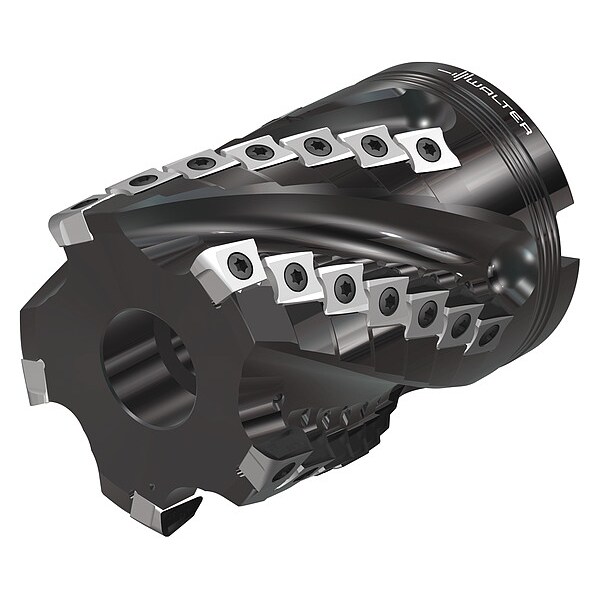

Walter - helical endmill single piece ISO S
| Overall Length | 4-1/4 in |
|---|---|
| Item | Indexable Face Mill |
| Features | 2 or 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement |
| Arbor Dia. | 1-1/4 in |
| Max. Cutting Dia. | 3 in |
| ISO Number | M3255.076-B31-05-80 |
| Max. Speed | 16,300 rpm |
| ANSI Code | M3255.076-B31-05-80 |
| Standards | ISO 6462-A |
| Coolant Fed | Non-Coolant Through |
| Depth of Cut | 3.15 in |
| Hub Outside Dia. | 2.85 in |
| Package Quantity | 1 |
