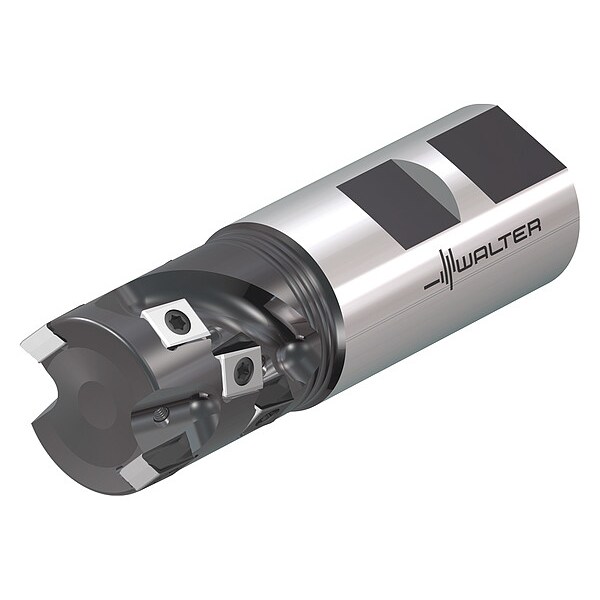

Walter - Helical Endmill Single Piece LN09
| Overall Length | 3.937 in |
|---|---|
| Shank Dia. | 0.984 in |
| Item | Indexable Square Shoulder End Mill |
| ISO Number | F5038.W25.025.Z02.32 |
| Standards | DIN1835-B |
| Features | 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement |
| ANSI Code | F5038.W25.025.Z02.32 |
| Depth of Cut | 1.26 in |
| Coolant Fed | Coolant Through |
| Max. Cutting Dia. | 123/125 in |
| Shank Type - Machining | Weldon Flat |
| Side Cutting Edge Angle | 90 Degrees |
| Max. Speed | 39,600 rpm |
| Cutting Application | Shoulder Milling |
| Toolholder Style | F5038 |
| Package Quantity | 1 |
