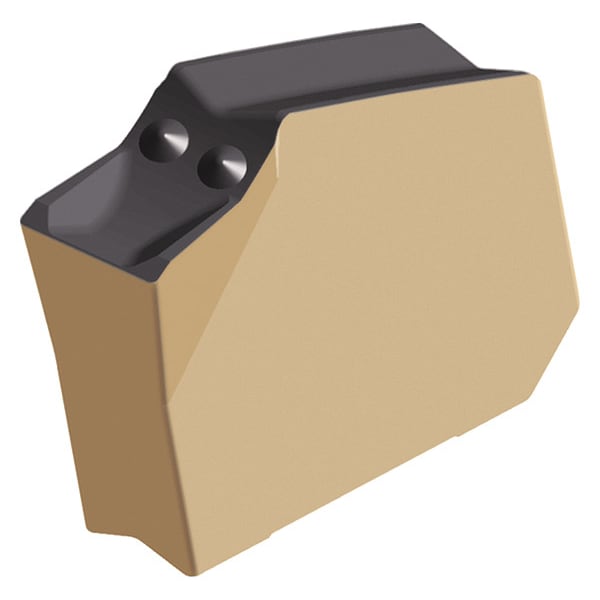

Walter - Insert Walter Cut Form FX
| Item | Parting and Grooving Insert |
|---|---|
| Style | Pressed |
| Insert Seat Size | E |
| Width | 4.1 mm |
| Chip-Breaker | Yes |
| Grade | WSM33 |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| Application | Cut Off High Feed |
| Coating | PVD |
| Insert Material | Carbide |
| Cast Iron (K) Compatibility | No |
| ISO Number | FX4.1-E410N020-CE4 WSM33 |
| For Use With | Walter Cut Monoblock Tools and Parting Blades |
| Non Ferrous (N) Compatibility | No |
| No. of Edges | 1 |
| Corner Radius | 0.2 mm |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| ANSI Number | FX4.1-E410N020-CE4 WSM33 |
| Mounting Style | Slip In |
| Lead Angle | 0 deg |
| Rake | 20 deg |
| Stainless (M) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Overall Length | 11.4 mm |
| Insert Size | 4.1 |
| Insert Style | FX |
| Measurement System | Metric |
| Clearance Angle | 7 deg |
| Cutting Application | Cut-Off, Radial Grooving |
| Seat Size | E |
| Manufacturer Grade | WSM33 |
| Chip-Breaker Code | CE4 |
| Material - Machining | Carbide |
| Number of Cutting Sides | 1 |
| Primary Material Application | Titanium, Nickel, Stainless Steel, Steel |
| Reference Length | 11.4 mm |
| Coating Process | PVD |
| Number of Cutting Edges | 1 |
| Primary Material Application ISO Code | S, M, P |
| Max. Grooving Width | 4.1 mm |
| Cutting Location | External |
| Hole Type | No Hole |
| ANSI Code | FX4.1-E410N020-CE4 WSM33 |
| Package Quantity | 1 |
