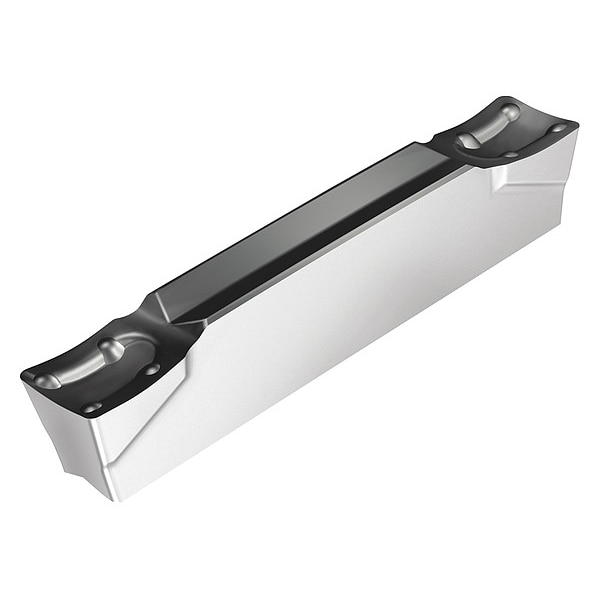

Walter - Insert Walter Cut Form GX
| Item | Parting and Grooving Insert |
|---|---|
| Style | Pressed |
| Insert Seat Size | E |
| Width | 3 mm |
| Chip-Breaker | Yes |
| Grade | WSM33S |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| No. of Edges | 2 |
| Coating | PVD |
| ISO Number | GX09-2E300N03-GD3 WSM33S |
| Application | Grooving, Radial, Axial, Parting Off |
| ANSI Number | GX09-2E300N03-GD3 WSM33S |
| Super Alloy (S) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Corner Radius | 0.3 mm |
| Lead Angle | 0 deg |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| Mounting Style | Slip In |
| For Use With | Walter Cut Monoblock Tools and Parting Blades |
| Insert Material | Carbide |
| Rake | 9 deg |
| Stainless (M) Compatibility | Yes |
| Insert Style | GX |
| Overall Length | 9 mm |
| Insert Size | 09 |
| Manufacturer Grade | WSM33S |
| Primary Material Application ISO Code | S, M, P |
| Measurement System | Metric |
| Coating Process | PVD |
| Finish - Machining | TiAlN |
| Number of Cutting Edges | 2 |
| Depth of Cut | 7 mm |
| Material - Machining | Carbide |
| Number of Cutting Sides | 2 |
| Clearance Angle | 6 deg |
| Seat Size | E |
| Max. Grooving Width | 3 mm |
| Cutting Location | External |
| ANSI Code | GX09-2E300N03-GD3 WSM33S |
| Cutting Application | Axial Grooving, Cut-Off, Radial Grooving |
| Reference Length | 9 mm |
| Chip-Breaker Code | GD3 |
| Primary Material Application | Titanium, Nickel, Stainless Steel, Steel |
| Hole Type | No Hole |
| Package Quantity | 1 |
