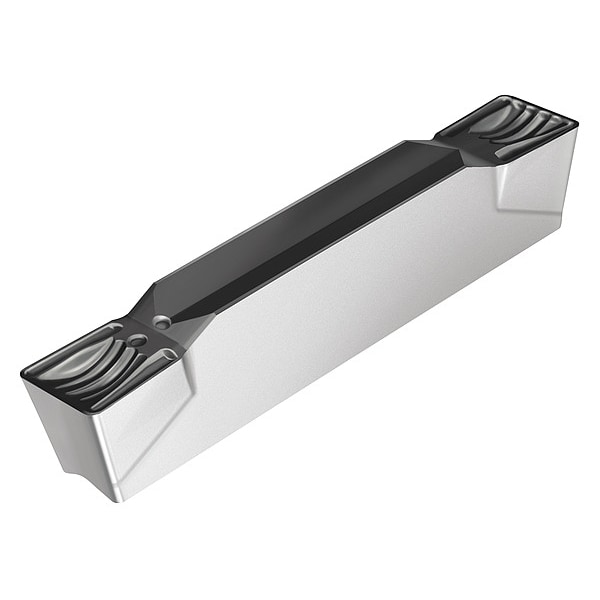

Walter - Insert Walter Cut Form GX
| Item | Parting and Grooving Insert |
|---|---|
| Style | GX24 |
| Width | 4 mm |
| Chip-Breaker | Yes |
| Grade | WKP23S |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | No |
| Insert Material | Carbide |
| No. of Edges | 2 |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| For Use With | GX Grooving Systems |
| ISO Number | GX24-3E400N08-UF4 WKP23S |
| Application | Grooving, Parting Off, Recessing, Axial, Internal Grooving |
| Lead Angle | 0 deg |
| Mounting Style | Clamp |
| ANSI Number | GX24-3E400N08-UF4 |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Coating | Tiger-Tec CVD |
| Corner Radius | 0.8 mm |
| Overall Length | 24 mm |
| Insert Style | GX |
| Rake | 32 deg |
| Insert Size | 24 |
| Coating Process | CVD |
| Measurement System | Metric |
| Seat Size | E |
| Cutting Application | Axial Grooving, Cut-Off, Facing, Longitudinal Turning, Radial Grooving |
| Max. Grooving Width | 4 mm |
| Manufacturer Grade | WKP23S |
| Primary Material Application ISO Code | P, K |
| Reference Length | 24 mm |
| Number of Cutting Edges | 2 |
| Primary Material Application | Cast Iron, Steel |
| Cutting Location | External |
| ANSI Code | GX24-3E400N08-UF4 WKP23S |
| Number of Cutting Sides | 2 |
| Chip-Breaker Code | UF4 |
| Clearance Angle | 6 deg |
| Depth of Cut | 22 mm |
| Hole Type | No Hole |
| Material - Machining | Carbide |
| Package Quantity | 1 |
