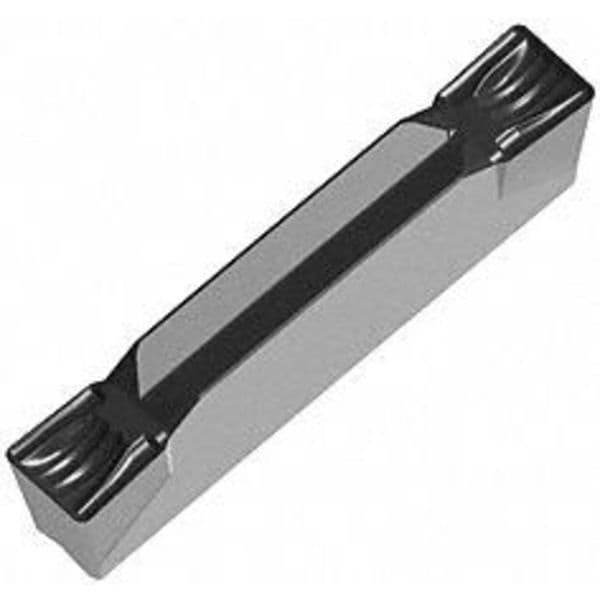

Walter - Insert Walter Cut Form GX
| Item | Parting and Grooving Insert |
|---|---|
| Style | Pressed |
| Insert Seat Size | E |
| Width | 5 mm |
| Chip-Breaker | Yes |
| Grade | WSM33S |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
| For Use With | Walter Cut Monoblock Tools and Parting Blades |
| Insert Material | Carbide |
| Hardened (H) Compatibility | No |
| ANSI Number | GX24-3E500N08-UF4 WSM33S |
| Steel (P) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Coating | PVD |
| ISO Number | GX24-3E500N08-UF4 WSM33S |
| Super Alloy (S) Compatibility | Yes |
| Corner Radius | 0.8 mm |
| Rake | 32 deg |
| Mounting Style | Slip In |
| No. of Edges | 2 |
| Cast Iron (K) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Lead Angle | 0 deg |
| Application | Universal Turning, Grooving, Facing, Parting Off, Medium Feed |
| Insert Size | 24 |
| Insert Style | GX |
| Overall Length | 24 mm |
| Seat Size | E |
| Primary Material Application | Titanium, Nickel, Stainless Steel, Steel |
| Chip-Breaker Code | UF4 |
| ANSI Code | GX24-3E500N08-UF4 WSM33S |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Number of Cutting Edges | 2 |
| Max. Grooving Width | 5 mm |
| Manufacturer Grade | WSM33S |
| Finish - Machining | TiAlN |
| Primary Material Application ISO Code | S, M, P |
| Coating Process | PVD |
| Hole Type | No Hole |
| Number of Cutting Sides | 2 |
| Clearance Angle | 6 deg |
| Reference Length | 24 mm |
| Cutting Application | Axial Grooving, Cut-Off, Facing, Longitudinal Turning, Radial Grooving |
| Depth of Cut | 22 mm |
| Cutting Location | External |
| Package Quantity | 1 |
