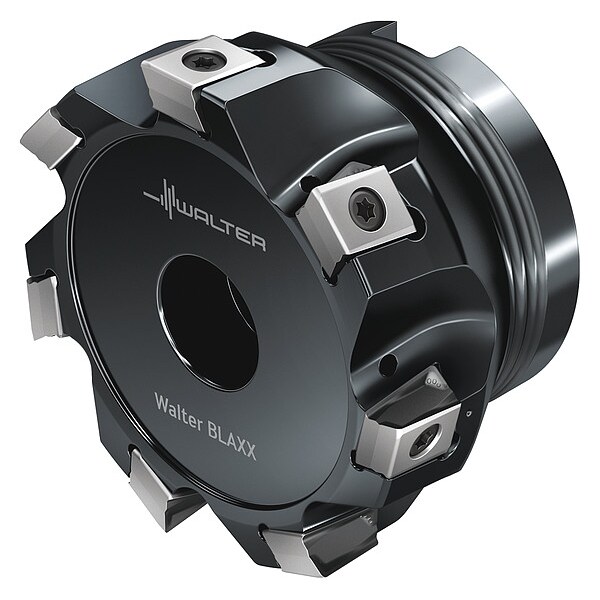

Walter - Shoulder Milling Cutter LN13
| Item | Indexable Face Mill |
|---|---|
| Cutting Dia. | 6.299 in |
| Series | F5141 |
| Depth of Cut | 0.472 in |
| Overall Length | 63 mm |
| Number of Inserts Required | 13 |
| Key | FS2003 |
| Insert Screw | FS2081 |
| For Use With | LNHU1306 Inserts |
| Insert Size | 1306 |
| Pitch | Medium |
| Shank Dia. | 1.574 in |
| Cutting Direction | Right Hand |
| Cutting Angle | 90 deg |
| ANSI Number | F5141.B40.160.Z13.12 |
| Side Cutting Edge Angle | 90 deg |
| Standards | ISO 6462-A |
| ANSI Code | F5141.B40.160.Z13.12 |
| ISO Number | F5141.B40.160.Z13.12 |
| Cutting Application | Face Milling (Finishing), Face Milling (Roughing), Shoulder Milling (Finishing), Shoulder Milling (Roughing), Slot Milling |
| Insert Cutting Edge Length | 12 mm |
| Hub Outside Dia. | 120 mm |
| Max. Speed | 11,200 rpm |
| Coolant Fed | Coolant Through |
| Arbor Dia. | 40 mm |
| Compatible Hardware | FS2081 T15IP Clamping Screw |
| Insert Holding Type | Hexagon Socket Head Cap Screw |
| Number of Coolant Holes | 2 |
| Max. Cutting Dia. | 160 mm |
| Features | 4 Cutting Edges per Indexable Insert, Tangential Arrangement of Indexable Inserts |
| Package Quantity | 1 |
