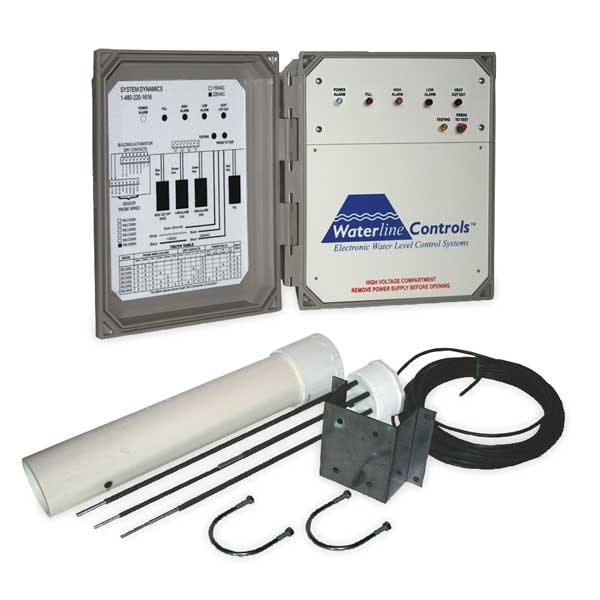

Water Level Control Fill w/ High Alarm
| Item | Water Level Control |
|---|---|
| Type | Universal |
| Enclosure Height (In.) | 8-3/4 |
| Enclosure Width (In.) | 10-1/2 |
| Enclosure Depth (In.) | 6 |
| Input Voltage | 110V AC 50/60 Hz |
| Relays | 30 Amps at 250V AC |
| Number of Switches | 2 |
| Max. Circuit Length (Ft.) | 50 ft |
| Valve | Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221 |
| Sensor Length (In.) | 20 in |
| Switch Type | (2)SPST |
| Special Information | The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade |
| Sensor Placement | On The Environment Wall or In A Static Pipe |
| Sensor Dia. (In.) | 3 in |
| Includes | Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box |
| Operating Range | 1 1/2 and 3 in |
| Enclosure Color | Gray |
| Application | Cooling Towers, Process Water, Storage Tanks |
| Sensor Cord Length (Ft.) | 50 ft |
| Agency Compliance | ETL Listed |
| Special Features | 110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes |
| Sensors Included | Fill Height With High Level Alarm |
| Control Type | Electronic With Microprocessor For Site Automation or Integration |
| Enclosure Type | NEMA 4X |
| Functions | Fill, High Alarm |
| Power Relay Contact Form | DPDT |
| Sensor Material | PVC |
| Voltage | 120 V AC |
| Dry Contact Relay Contact Form | SPST |
| Fill Stop Probe Color | Red |
| Number of Dry Contacts | 3 |
| High Alarm Probe Length | 10 3/8 in |
| Number of Indicator Lights | 3 |
| Power Relay Current Rating | 30 A |
| Inlet Pressure - Maximum | Not Applicable |
| Reference Probe Color | Black |
| Process Connection Type | NPT |
| Electrical Lead Length | Not Applicable |
| Dry Contact Switch Action | Normally Open |
| Probes Included | Fill Start, Fill Stop, High Alarm, Reference |
| Included Flood Protection Lockout | Flood Protection Lockout Not Included |
| Reference Probe Length | 17 in |
| Housing Material | Polycarbonate |
| High Alarm Probe Color | Green |
| Sensor Head Diameter | 3 in |
| Outlet Pressure - Maximum | 30 psi |
| Lockable | Lockable |
| Number of Relays | 2 |
| Fill Start Probe Color | White |
| Fill Stop Probe Length | 14 in |
| NEMA Rating | 4X |
| Housing Height | 9 1/2 in |
| Power Relay Switch Action | Normally Closed, Normally Open |
| Fill Start Probe Length | 17 in |
| Housing Depth | 5 in |
| Process Connection Size | 1 in |
| Standards | C-ETL-US |
| Feed Choices | Fixed Feed |
| Mounting Style | Mounting Assembly |
| Dry Contact Current Rating | 0.5 A |
| Operating Temperature - Maximum | 200 Degrees F |
| Housing Width | 10 1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
