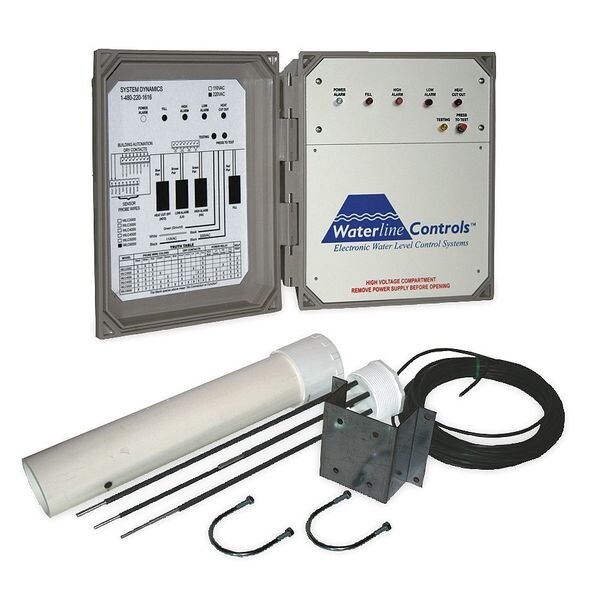

Water Level Control Fill w/ High Alarm
| Item | Water Level Control |
|---|---|
| Type | Universal |
| Enclosure Height (In.) | 8-3/4 |
| Enclosure Width (In.) | 10-1/2 |
| Enclosure Depth (In.) | 6 |
| Input Voltage | 220V AC 50/60Hz |
| Relays | 30 Amps at 250V AC |
| Valve | Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221 |
| Enclosure Type | NEMA 4X |
| Sensor Dia. (In.) | 3 in |
| Special Features | 110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes |
| Agency Compliance | ETL Listed |
| Enclosure Color | Gray |
| Max. Circuit Length (Ft.) | 50 ft |
| Sensor Cord Length (Ft.) | 50 ft |
| Special Information | The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade |
| Control Type | Electronic With Microprocessor For Site Automation or Integration |
| Sensor Placement | On The Environment Wall or In A Static Pipe |
| Application | Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks |
| Sensors Included | Fill Height With High Level Alarm |
| Switch Type | (2)SPST |
| Operating Range | 1 1/2 and 3 in |
| Sensor Length (In.) | 20 in |
| Number of Switches | 2 |
| Includes | Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box |
| Voltage | 220 V AC |
| Standards | C-ETL-US |
| Functions | Fill, High Alarm |
| Mounting Style | Mounting Assembly |
| Probes Included | Fill Start, Fill Stop, High Alarm, Reference |
| Number of Indicator Lights | 3 |
| Outlet Pressure - Maximum | 30 psi |
| Operating Temperature - Maximum | 200 Degrees F |
| Included Flood Protection Lockout | Flood Protection Lockout Not Included |
| Reference Probe Length | 17 in |
| Sensor Material | PVC |
| Fill Start Probe Color | White |
| Number of Dry Contacts | 3 |
| Housing Depth | 5 in |
| High Alarm Probe Color | Green |
| Power Relay Current Rating | 30 A |
| Reference Probe Color | Black |
| Housing Material | Polycarbonate |
| Fill Stop Probe Length | 14 in |
| NEMA Rating | 4X |
| Housing Width | 10 1/2 in |
| Lockable | Lockable |
| Dry Contact Relay Contact Form | SPST |
| Fill Start Probe Length | 17 in |
| Dry Contact Switch Action | Normally Open |
| Feed Choices | Fixed Feed |
| Power Relay Switch Action | Normally Closed, Normally Open |
| Power Relay Contact Form | DPDT |
| Process Connection Size | 1 in |
| Process Connection Type | NPT |
| Housing Height | 9 1/2 in |
| High Alarm Probe Length | 10 3/8 in |
| Electrical Lead Length | Not Applicable |
| Dry Contact Current Rating | 0.5 A |
| Fill Stop Probe Color | Red |
| Number of Relays | 2 |
| Sensor Head Diameter | 3 in |
| Inlet Pressure - Maximum | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
