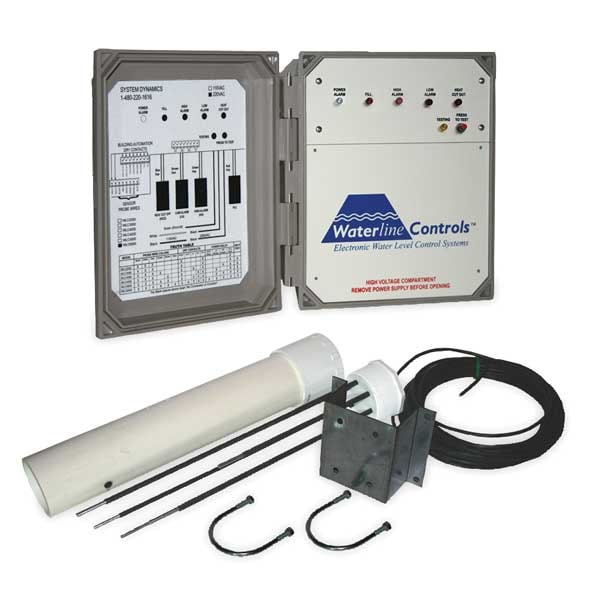

Water Level Control Fill w/ Low Alarm
| Item | Water Level Control |
|---|---|
| Type | Universal |
| Enclosure Height (In.) | 8-3/4 |
| Enclosure Width (In.) | 10-1/2 |
| Enclosure Depth (In.) | 6 |
| Input Voltage | 110V AC 50/60 Hz |
| Relays | 30 Amps at 250V AC |
| Agency Compliance | ETL Listed |
| Sensor Length (In.) | 20 in |
| Max. Circuit Length (Ft.) | 50 ft |
| Special Information | The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade |
| Sensor Dia. (In.) | 3 in |
| Special Features | 110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes |
| Sensor Placement | On The Environment Wall or In A Static Pipe |
| Number of Switches | 3 |
| Enclosure Type | NEMA 4X |
| Operating Range | 1/2 and 6 in |
| Enclosure Color | Gray |
| Application | Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks |
| Switch Type | (3)SPST |
| Sensors Included | Fill Height With Low Level Alarm |
| Valve | Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221 |
| Includes | Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box |
| Control Type | Electronic With Microprocessor For Site Automation or Integration |
| Sensor Cord Length (Ft.) | 50 ft |
| Dry Contact Switch Action | Normally Open |
| Included Flood Protection Lockout | Flood Protection Lockout Not Included |
| Number of Relays | 2 |
| Reference Probe Length | 17 in |
| Standards | C-ETL-US |
| Housing Depth | 5 in |
| Voltage | 120 V AC |
| Electrical Lead Length | Not Applicable |
| Number of Dry Contacts | 3 |
| Fill Stop Probe Color | Red |
| Process Connection Type | NPT |
| Power Relay Current Rating | 30 A |
| Power Relay Switch Action | Normally Closed, Normally Open |
| Functions | Fill, Low Alarm |
| Inlet Pressure - Maximum | Not Applicable |
| Sensor Material | PVC |
| Fill Start Probe Color | White |
| Probes Included | Fill Start, Fill Stop, Low Alarm, Reference |
| Process Connection Size | 1 in |
| Dry Contact Relay Contact Form | SPST |
| Fill Start Probe Length | 15-1/2 in |
| Reference Probe Color | Black |
| Housing Width | 10 1/2 in |
| Housing Height | 9 1/2 in |
| Power Relay Contact Form | DPDT |
| Feed Choices | Fixed Feed |
| Sensor Head Diameter | 3 in |
| Lockable | Lockable |
| Housing Material | Polycarbonate |
| Low Alarm Probe Length | 17 in |
| Low Alarm Probe Color | Brown |
| Outlet Pressure - Maximum | 30 psi |
| Dry Contact Current Rating | 0.5 A |
| Fill Stop Probe Length | 14 in |
| High Alarm Probe Length | Not Applicable |
| Mounting Style | Mounting Assembly |
| NEMA Rating | 4X |
| Number of Indicator Lights | 3 |
| Operating Temperature - Maximum | 200 Degrees F |
| High Alarm Probe Color | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
