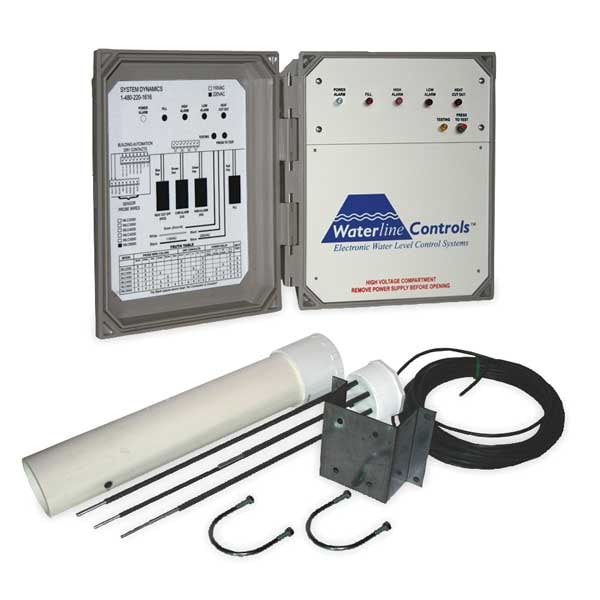

Water Level Control High and Low Alarm
| Item | Water Level Control |
|---|---|
| Enclosure Height (In.) | 8-3/4 |
| Type | Universal |
| Enclosure Width (In.) | 10-1/2 |
| Enclosure Depth (In.) | 6 |
| Input Voltage | 110V AC 50/60 Hz |
| Relays | 30 Amps at 250V AC |
| Agency Compliance | ETL Listed |
| Enclosure Type | NEMA 4X |
| Application | Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks |
| Control Type | Electronic With Microprocessor For Site Automation or Integration |
| Operating Range | 1 1/2, 3, and 6 in |
| Sensor Length (In.) | 20 in |
| Sensor Dia. (In.) | 3 in |
| Sensor Placement | On The Environment Wall or In A Static Pipe |
| Sensors Included | Fill Height With High and Low Level Alarm |
| Special Information | The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade |
| Includes | Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box |
| Sensor Cord Length (Ft.) | 50 ft |
| Max. Circuit Length (Ft.) | 50 ft |
| Switch Type | (3)SPST |
| Special Features | 110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes |
| Number of Switches | 3 |
| Valve | Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221 |
| Enclosure Color | Gray |
| Standards | C-ETL-US |
| Voltage | 120 V AC |
| Operating Temperature - Maximum | 200 Degrees F |
| Power Relay Switch Action | Normally Closed, Normally Open |
| Dry Contact Current Rating | 0.5 A |
| Electrical Lead Length | Not Applicable |
| High Alarm Probe Color | Green |
| Power Relay Current Rating | 30 A |
| Dry Contact Switch Action | Normally Open |
| Process Connection Type | NPT |
| Number of Relays | 3 |
| Fill Start Probe Length | 15-1/2 in |
| Housing Width | 10 1/2 in |
| Fill Stop Probe Color | Red |
| Power Relay Contact Form | DPDT |
| Dry Contact Relay Contact Form | SPST |
| NEMA Rating | 4X |
| Sensor Material | PVC |
| Fill Start Probe Color | White |
| Number of Dry Contacts | 4 |
| Low Alarm Probe Length | 17 in |
| High Alarm Probe Length | 10 3/8 in |
| Inlet Pressure - Maximum | Not Applicable |
| Feed Choices | Fixed Feed |
| Functions | Fill, High Alarm, Low Alarm |
| Probes Included | Fill Start, Fill Stop, High Alarm, Low Alarm, Reference |
| Housing Depth | 5 in |
| Included Flood Protection Lockout | Flood Protection Lockout Not Included |
| Reference Probe Length | 17 in |
| Number of Indicator Lights | 4 |
| Mounting Style | Mounting Assembly |
| Low Alarm Probe Color | Brown |
| Housing Material | Polycarbonate |
| Lockable | Lockable |
| Fill Stop Probe Length | 14 in |
| Reference Probe Color | Black |
| Housing Height | 9 1/2 in |
| Sensor Head Diameter | 3 in |
| Outlet Pressure - Maximum | 30 psi |
| Process Connection Size | 1 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
