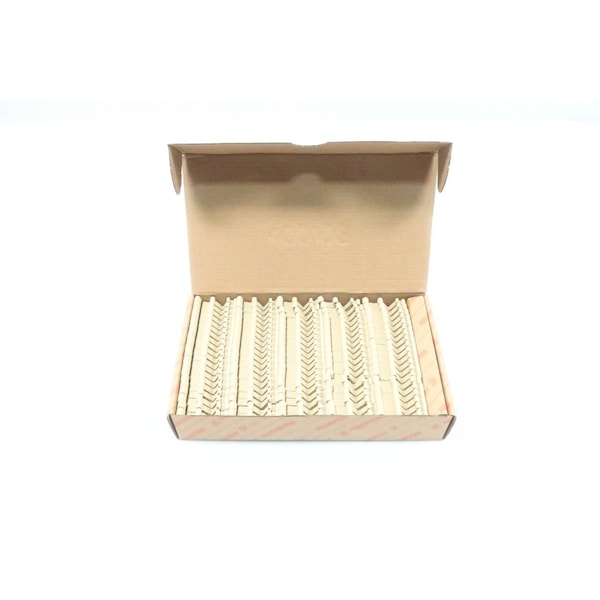

0Box of 100 Din Rail Terminal and Contact Block
| Height | 41.5 mm |
|---|---|
| Width | 6.1 mm |
| Type | EN, SAK 2.5 |
| Material | PA 66 |
| Standards | IEC 60947-7-1 |
| Depth | 40.5 mm |
| Clamping range, rated connection, min. | 0.13 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Voltage, cross-connection | CrossConnectionGuide.pdf |
| Wire cross section max. (ATEX) | 2.5 mm² |
| Approvals | KEMAATEX, UR, KEMAKEUR, CE, EAC, CSA, INMETRO, IECEXKEM |
| Number of connections | 2 |
| Depth (inches) | 1.594 inch |
| Current (ATEX) | 21 A |
| Ex 2014/34/EU label | II 2 G D |
| Number of potentials | 1 |
| No. of clamping points per level | 2 |
| Descriptive text technical data | With twin wire-end ferrules ZH 0.5 to ZH 1.5, the rated voltage is 690 V. |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Max. voltage (ATEX) | 690 V |
| Max. voltage (IECEX) | 690 V |
| GTIN (EAN) | 4008190010171 |
| Clamping screw | M 2.5 |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min. | 0.5 mm² |
| Wire cross section max. (CSA) | 10 AWG |
| Clamping range, rated connection, max. | 6 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Wire connection cross section, stranded, rated connection, max. | 4 mm² |
| Twin wire-end ferrules, max. | 1.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section, stranded, rated connection, min. | 0.5 mm² |
| Wire cross section min. (CSA) | 26 AWG |
| Continuous operating temp., max. | 100 °C |
| Open sides | right |
| Current size C (UR) | 20 A |
| Gauge to IEC 60947-1 | A3 |
| Tightening torque, min. | 0.4 Nm |
| Number of levels | 1 |
| Rated impulse withstand voltage | 8 kV |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Tightening torque, max. | 0.6 Nm |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max. | 4 mm² |
| Number of potentials per tier | 1 |
| IEC Ex certificate | IECEXKEM06.0014U_e.pdf |
| Explosion-tested version | Yes |
| Current at maximum wires | 41 A |
| Voltage size C (CSA) | 600 V |
| Connection direction | on side |
| Number of similar terminals | 1 |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Wire connection cross section, solid core max. rated connection | 6 mm² |
| Continuous operating temp., min. | -50 °C |
| ATEX certificate | IECEXKEM06.0014U, KEMA97ATEX1798U_e.pdf |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Type of mounting | Snap-on |
| Wire connection cross section, solid core, min. rated connection | 0.5 mm² |
| Width (inches) | 0.24 inch |
| Mounting rail | TS 35, TS 32 |
| Certificate No. (CSA) | 12400-129 |
| Rated current | 24 A |
| ETIM 3.0 | EC000897 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max. | 4 mm² |
| Rated voltage | 800 V |
| Certificate No. (IECEX) | IECEXKEM06.0014U |
| ETIM 4.0 | EC000897 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min. | 0.5 mm² |
| Blade size | 0.6 x 3.5 mm |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| End cover plate required | Yes |
| Height (inches) | 1.634 inch |
| Torque level with DMS electric screwdriver | 1 |
| Colour | beige / yellow |
| Current (IECEX) | 21 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Type of connection | Screw connection |
| Rated cross-section | 2.5 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 4 mm² |
| Wire cross section max. (IECEX) | 2.5 mm² |
| Version | Screw connection, for screwable cross-connection, One end without connector, SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection |
| Pollution severity | 3 |
| UL 94 flammability rating | V-2 |
| Stripping length | 10 mm |
| Voltage size C (UR) | 600 V |
| Current size C (CSA) | 25 A |
| Package Quantity | 1 |
