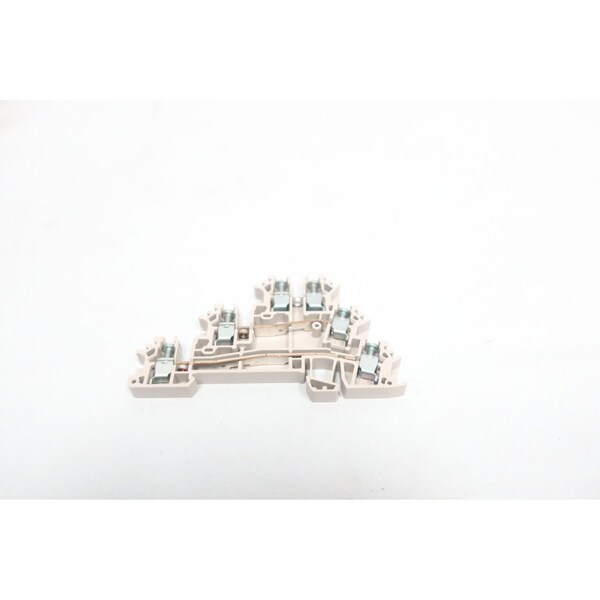

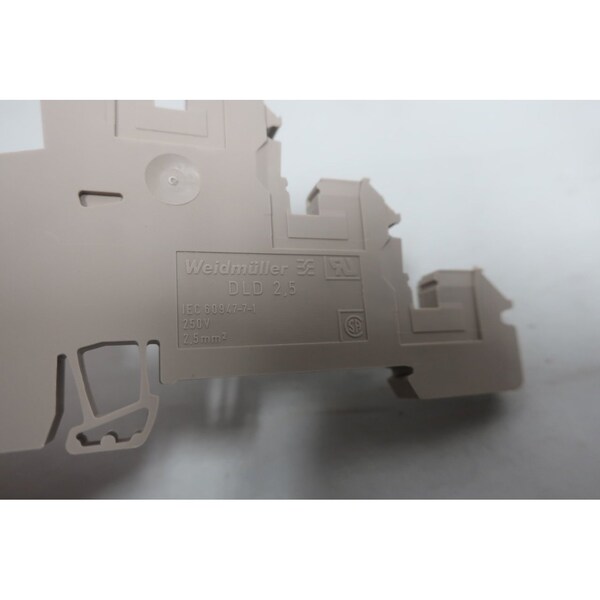

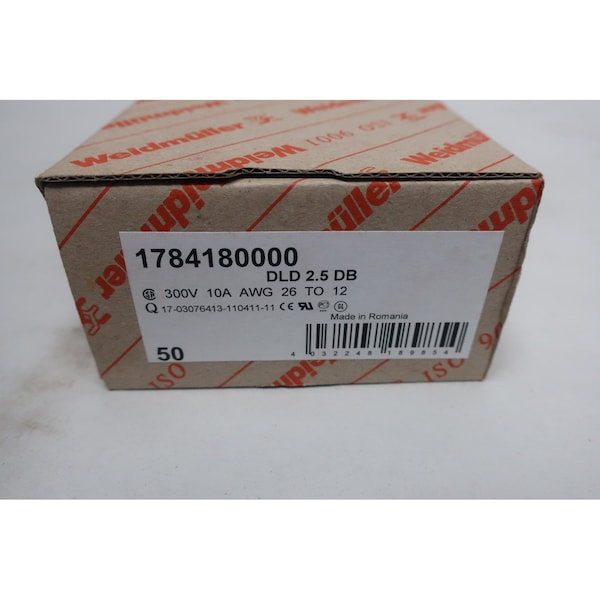

Bloque de terminal y contacto de 300V 10A, 1784180000.
| Material | Wemid |
|---|---|
| Standards | IEC 60947-7-1 |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire cross section min. (CSA) | 26 AWG |
| Wire connection cross section AWG, min. | AWG 26 |
| Connection direction | on side |
| Open sides | right |
| Connection cross-section, stranded, max. | 4 sq mm |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Blade Size | 0.6 mm x 3.5 mm |
| PE function | No |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1 sq mm |
| Wire connection cross section AWG, max. | AWG 12 |
| Version | Screw connection, One end without connector |
| Number of connections | 6 |
| Rail | TS 35 |
| Depth (inches) | 1.909 in |
| Volume resistance according to IEC 60947-7-x | 3.99 mΩ |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Height (inches) | 3.248 in |
| Tightening torque, max. | 0.6 N-m |
| Colour | beige |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Number of potentials per tier | 1 |
| Depth including DIN rail | 49 mm |
| Wire connection cross section, finely stranded, max. | 4 sq mm |
| Approvals | CE, CSA, EAC, GERMLLOYD, UR |
| UL 94 flammability rating | V-0 |
| Current at maximum wires | 24 A |
| Wire cross-section, finely stranded, two clampable wires, max. | 1 sq mm |
| Type of mounting | Snap-on |
| Voltage size D (UR) | 300 V |
| Tightening torque, min. | 0.4 N-m |
| Continuous operating temp., min. | -50 deg C |
| Continuous operating temp., max. | 120 deg C |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 sq mm |
| Torque level with DMS electric screwdriver | 1 |
| UL File Number Search | E60693 |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Gauge to IEC 60947-1 | A3 |
| Number of clamping points per level | 2 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Storage temperature, max. | 40 deg C |
| Rated voltage | 250 V |
| Connection cross-section, stranded, min. | 0.5 sq mm |
| Width (inches) | 0.244 in |
| Current size C (CSA) | 10 A |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Current size D (UR) | 10A |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 sq mm |
| Storage temperature, min. | 10 °C |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2.5 sq mm |
| Number of similar terminals | 1 |
| Certificate No. (CSA) | 12,400 to 134 |
| Rated impulse withstand voltage | 4 kV |
| Clamping screw | M 2.5 |
| Clamping range, max. | 4 sq mm |
| Number of Levels | 3 |
| Rated cross-section | 2.5 mm² |
| Certificate No. (UR) | E60693 |
| Number of potentials | 3 |
| Rated current | 24 A |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Stripping length | 7 mm |
| End cover plate required | Yes |
| Wire cross section max. (CSA) | 12 AWG |
| Pollution severity | 3 |
| PE connection | No |
| Voltage size C (CSA) | 300 V |
| Clamping range, min. | 0.13 sq mm |
| Storage temperature | 10 deg C |
| Type of connection | Screw connection |

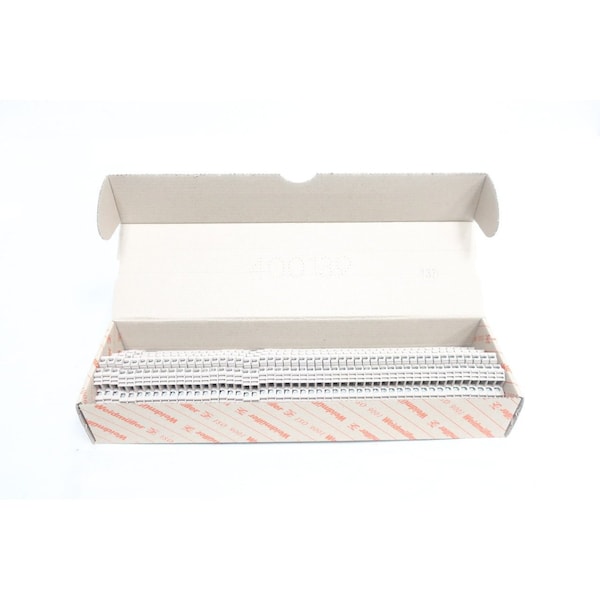

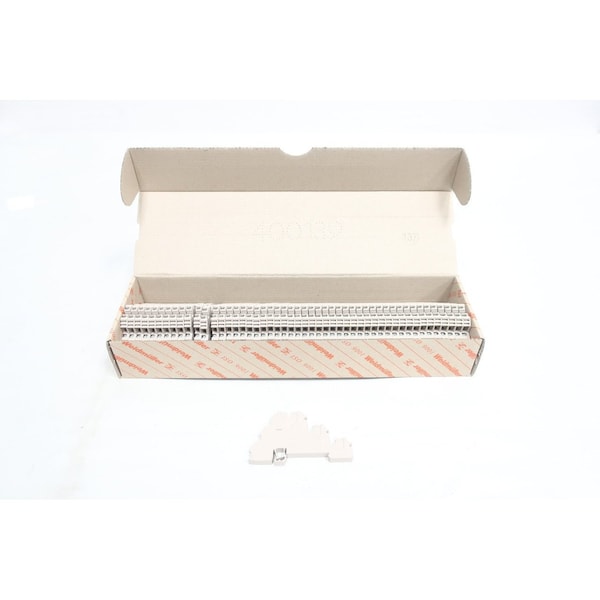

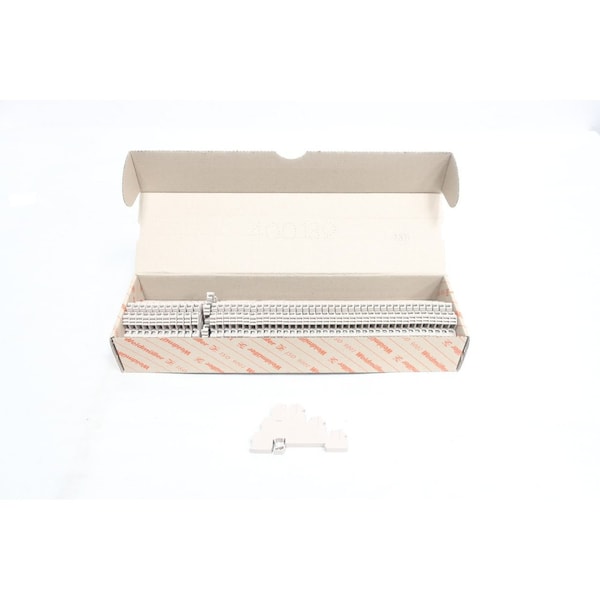

| Package Quantity | 50 |
