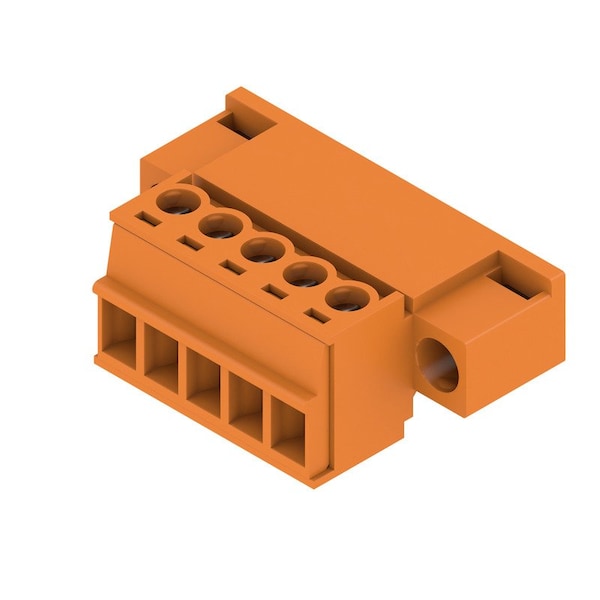

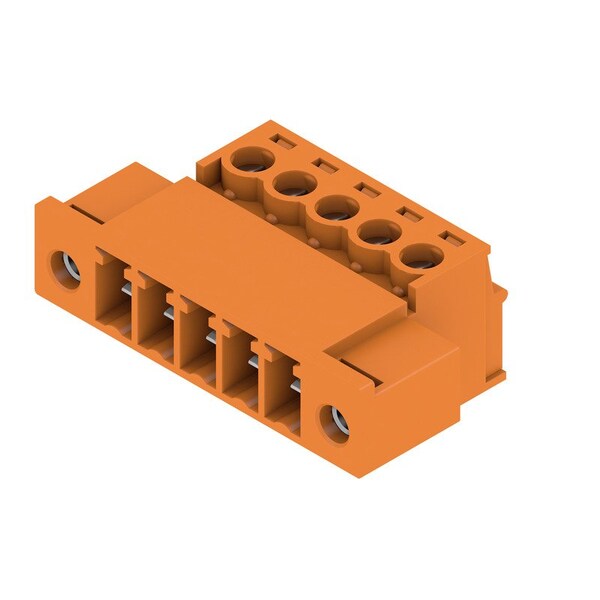

Barrier Strip Terminal Block, 1.5Mm2, 1 Row(S), 1 Deck(S)
| Number of Poles | 5 |
|---|---|
| Layer structure of plug contact | 4-8µm Sn |
| Colour chart (similar) | RAL 2000 |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| UL 94 flammability rating | V-0 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Type of connection | Field connection |
| Rated cross-section | 1 mm² |
| Contact material | Copper alloy |
| Clamping range, max. | 1.5 sq mm |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |

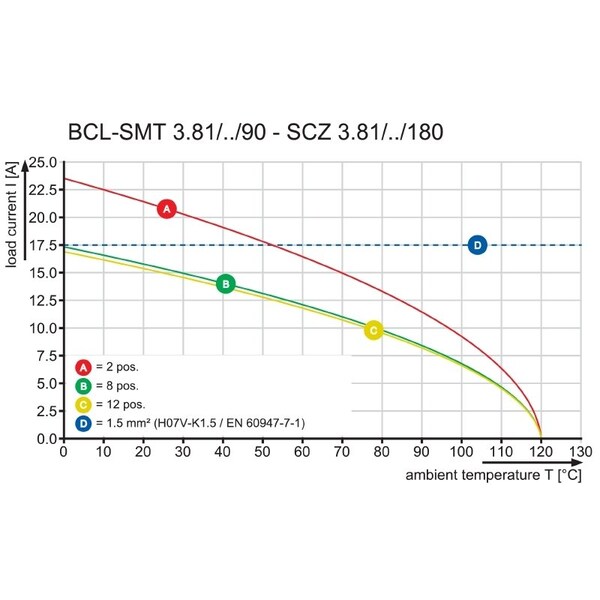

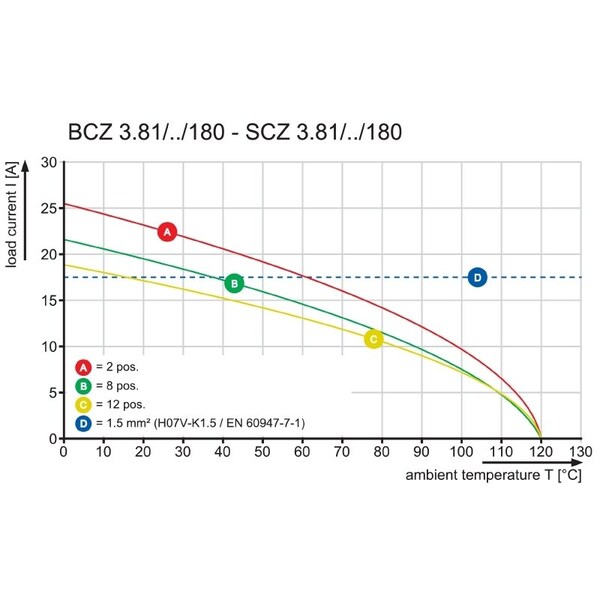

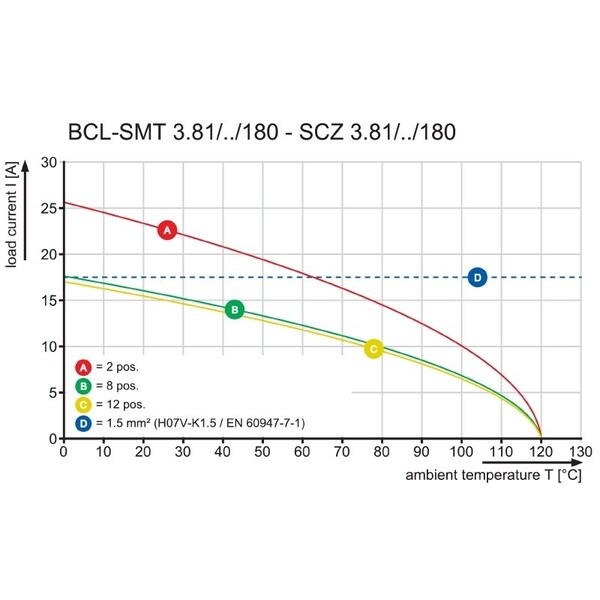

| Rated current, min. number of poles (Tu=20°C) | 17.5 A |
| Wire connection method | connection |
| Comparative Tracking Index (CTI) | ≥550 |
| Temperature range, installation, min. | -25 deg C |
| Institute (CSA) | CSA |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 1.5 sq mm |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Contact surface | tinned |

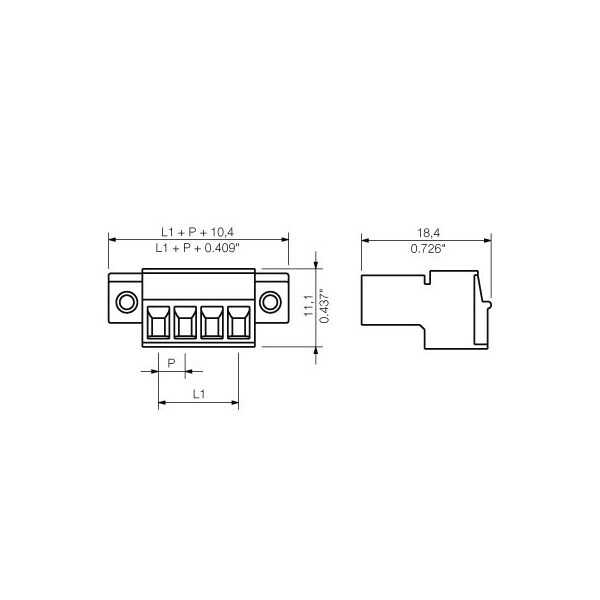

| L1 in inches | 0.6 in |
| Insulating material | PA 66 GF 30 |
| Tightening torque for screw flange, max. | 0.3 N-m |
| Pulling force/pole, max. | 5 N |
| Pitch in inches (P) | 0.15 in |
| Max. clamping range | 1.5 sq mm |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Plugging cycles | 25 |
| Temperature range, installation, max. | 120 deg C |
| Stripping length | 7 mm |
| Plugging force/pole, max. | 8 N |
| Short-time withstand current resistance | 3 x 1s with 76 A |
| Rated voltage (Use group B / CSA) | 300 V |
| Conductor outlet direction | 180° |
| Rated current, max. number of poles (Tu=20°C) | 17.1 A |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Tightening torque, max. | 0.25 N-m |
| Rated current (Use group D / UL 1059) | 10 A |
| Certificate No. (cURus) | E60693 |
| Rated current, min. number of poles (Tu=40°C) | 17.5 A |
| Screwdriver blade standard | DIN 5264-A |
| GWFI | 960 °C |
| Solid, min. H05(07) V-U | 0.2 sq mm |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| VPE length | 25 mm |
| Rated current (Use group B / UL 1059) | 10 A |
| Rated current (Use group B / CSA) | 11 A |
| Volume resistance | 6 milliohm |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Tightening torque, min. | 0.2 N-m |
| Wire cross-section, AWG, min. | AWG 28 |
| Colour | orange |
| Number of Rows | 1 |
| Certificate No. (CSA) | 200,039 to 1,121,690 |
| Max. relative humidity during storage | 80 % |
| Rated voltage (Use group C / CSA) | 50 V |
| Depth (inches) | 0.724 in |
| Solid, max. H05(07) V-U | 1.5 sq mm |
| Flexible, max. H05(07) V-K | 1.5 sq mm |
| Tightening torque for screw flange, min. | 0.2 Nm |
| Height (inches) | 0.437 in |
| Wire cross-section, AWG, max. | AWG 16 |
| Wire connection cross section AWG, max. | AWG 16 |
| Approvals | CSA, cURus, EAC |
| Rated current, max. number of poles (Tu=40°C) | 15.2 A |
| Pin series quantity | 1 |
| Institute (cURus) | cURus |
| Clamping range, min. | 0.08 sq mm |
| Storage temperature, min. | -25 °C |
| VPE width | 115 mm |
| Rated current (Use group C / CSA) | 11 A |
| Operating temperature, max. | 120 deg C |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.2 sq mm |
| Insulating material group | II |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 sq mm |
| Wire connection cross section AWG, min. | AWG 28 |
| Insulation strength | ≥108 Ω |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Plug gauge in accordance with EN 60999 a x b; ø | 2.4 mm x 1.5 mm ; 2.4 mm |
| VPE height | 160 mm |
| Flexible, min. H05(07) V-K | 0.2 sq mm |
| Operating temperature, min. | -50 °C |
| Storage temperature, max. | 55 deg C |
| Screwdriver blade | 0.4 x 2.5 |
| Clamping screw | M 2 |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.2 sq mm |
| UL File Number Search | E60693 |
| Package Quantity | 1 |
