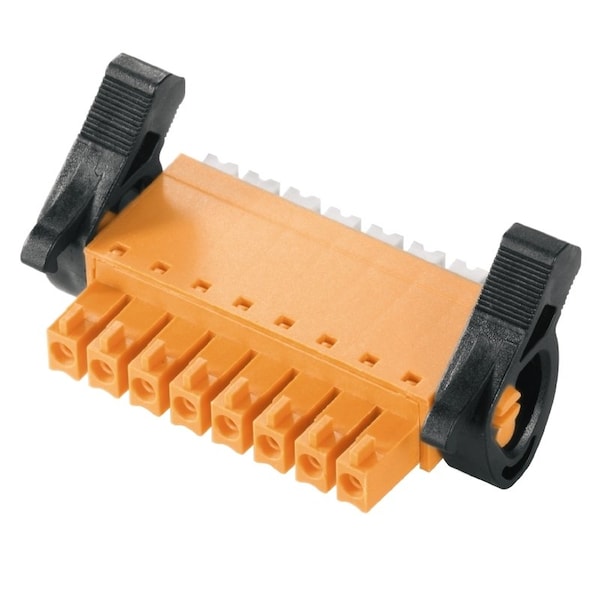

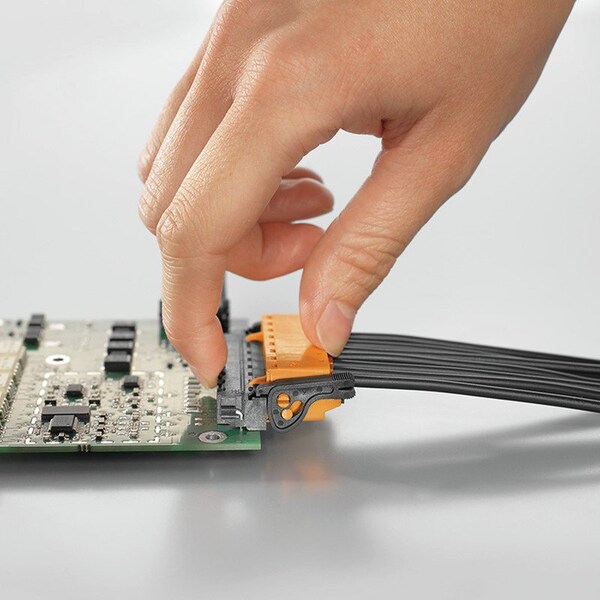

Barrier Strip Terminal Block, 1.5Mm2, 1 Row(S), 1 Deck(S)

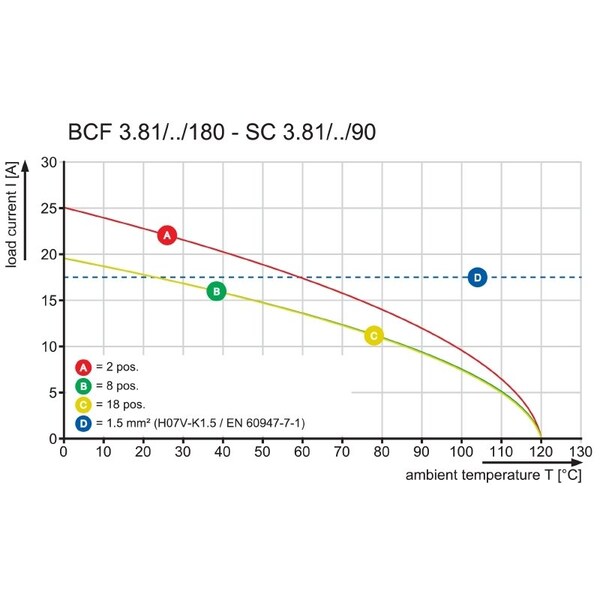

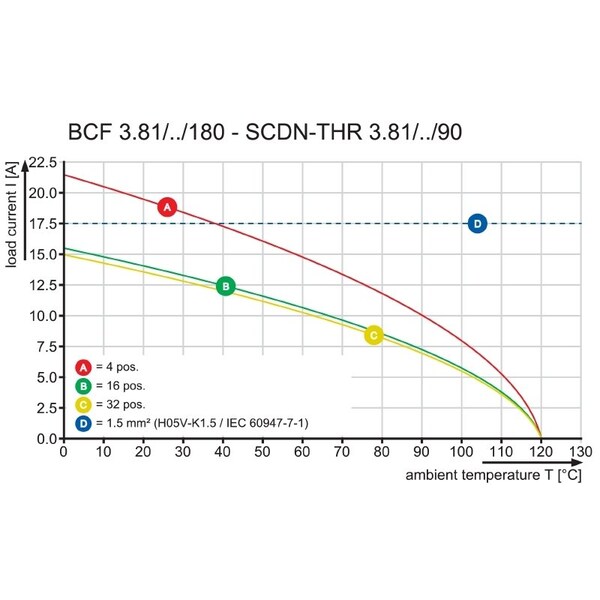

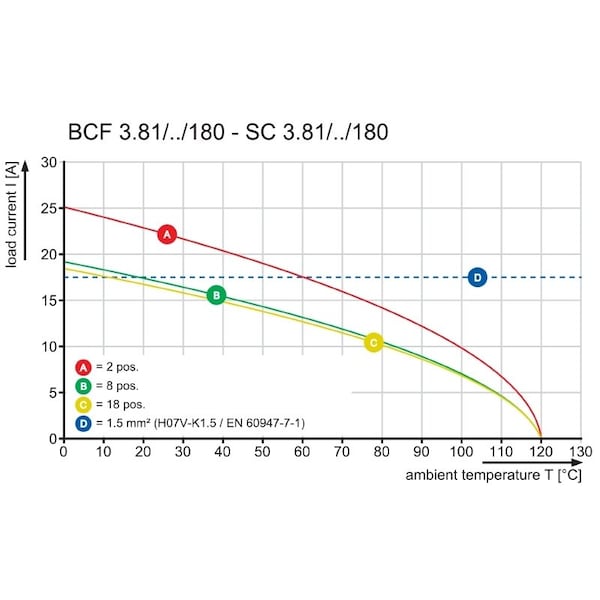

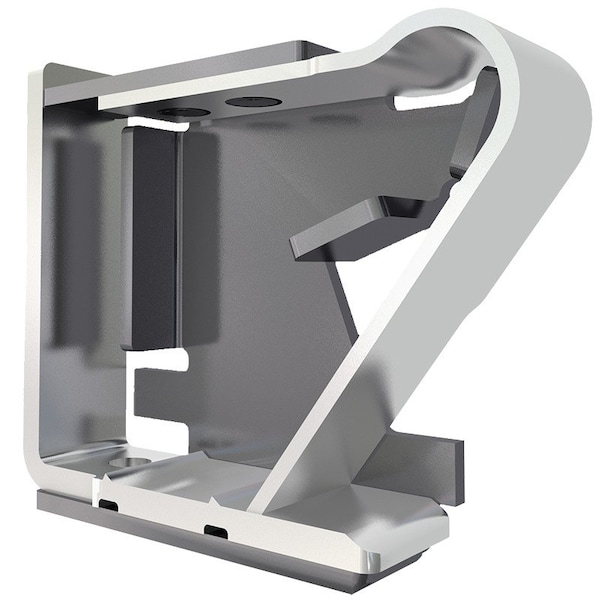

| Type | BCF 3.81/05/180LR SN OR BX |
|---|---|
| Stripping length | 9 mm |
| Operating temperature, min. | -50 °C |
| Short-time withstand current resistance | 3 x 1s with 76 A |
| Rated cross-section | 1 mm² |
| Number of Rows | 1 |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Product data | UL: 300 V / 10 A / AWG 26 - AWG 16, IEC: 320 V / 17.5 A / 0.14 - 1.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 sq mm |
| Wire cross-section, AWG, min. | AWG 26 |
| Clamping range, rated connection, max. | 1.5 sq mm |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Type of connection | Field connection |
| Approvals | EAC, CSA, CURUS |
| Rated voltage (Use group C) | 50 V |
| Storage temperature, min. | -25 °C |
| Screwdriver blade | 0.4 x 2.5 |
| UL File Number Search | E60693 |
| UL 94 flammability rating | V-0 |
| Insulating material group | II |
| Solid, min. H05(07) V-U | 0.14 sq mm |
| Rated current, min. no. of poles (Ta = 20°C) | 17.5 A |
| Temperature range, installation, min. | -25 deg C |
| Max. relative humidity during storage | 80 % |
| Conductor outlet direction | 180° |
| Rated current (use group C) | 11 A |
| Rated current (use group D) | 11 A, 10 A |
| CTI | ≥550 |
| Screwdriver blade standard | DIN 5264 |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Rated current, max. no. of poles (Ta = 40°C) | 16.3 A |
| Solid, max. H05(07) V-U | 1.5 sq mm |
| Plug gauge acc. to EN 60999 a x b; Ø | 2.4 mm x 1.5 mm; 1.9mm |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |
| Insulating material | PA GF |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.25 sq mm |
| Pitch in inches (P) | 0.15 in |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Rated current, min. no. of poles (Ta = 40°C) | 17.5 A |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| Clamping range, rated connection, min. | 0.14 sq mm |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| Rated current (use group B) | 11 A, 10 A |
| Institute (CSA) | icon |
| Push-in force/pole | 0 N |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire connection cross section AWG, min. | AWG 26 |
| Contact material | Cu-Leg |
| Colour chart (similar) | RAL 2000 |
| Operating temperature, max. | 120 deg C |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 sq mm |
| Rated voltage (use group B) | 300 V, 300 V |
| Flexible, min. H05(07) V-K | 0.14 sq mm |
| W. wire end ferrule, DIN 46228 pt 1, min | 0.25 mm² |
| Pin series quantity | 1 |
| Insulation Resistance | ≥10 |
| Wire connection method | PUSH IN |
| Colour | orange |
| Rated current, max. no. of poles (Ta = 20°C) | 17.5 A |
| L1 in inches | 0.6 in |
| No. of poles | 5 |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 1 sq mm |
| Plugging cycles | 25 |
| Certificate No. (CSA) | 200,039 to 1,121,690 |
| Actuating force actuating element, max. | 40 N |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Storage temperature, max. | 55 deg C |
| Certificate No. (cURus) | E60693 |
| Wire cross-section, AWG, max. | AWG 16 |
| Temperature range, installation, max. | 120 deg C |
| Volume resistance | 6 milliohm |
| Contact surface | tinned |
| Rated voltage (use group D) | 300 V |
| Institute (cURus) | icon |
| Package Quantity | 1 |
