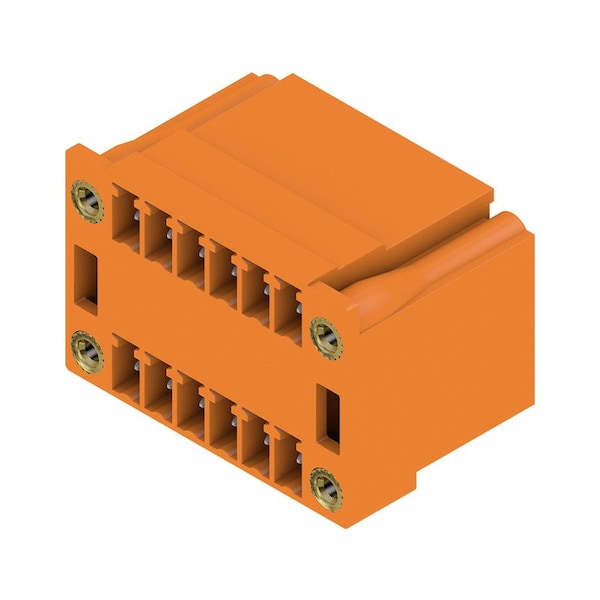

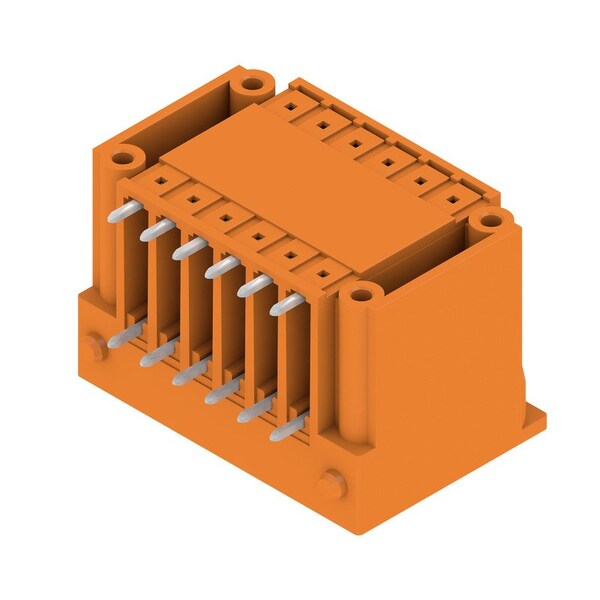

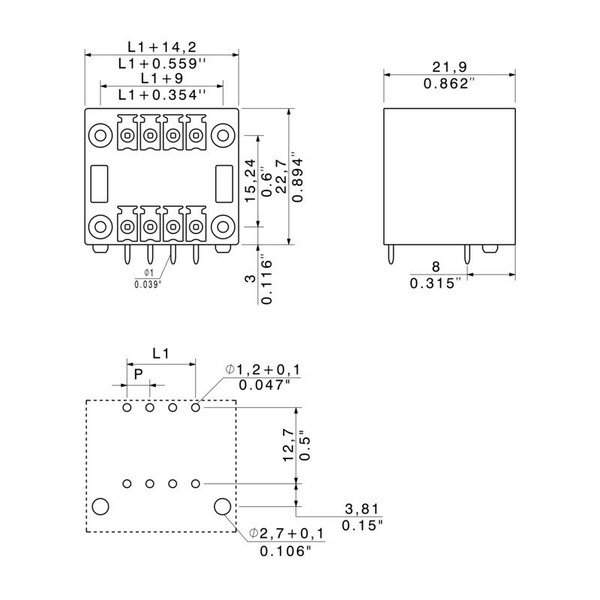

Barrier Strip Terminal Block, 17.5A, 2 Row(S), 2 Deck(S)
| Number of Poles | 12 |
|---|---|
| Colour chart (similar) | RAL 2000 |
| Number of Rows | 2 |
| Insulating material | PA GF |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Solder pin dimensions | d = 1.0 mm, Octagonal |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Mounting onto the PCB | THT solder connection |
| Rated current (Use group B / UL 1059) | 10 A |
| VPE length | 25 mm |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Volume resistance | 6 milliohm |
| Insulating material group | II |
| Operating temperature, min. | -50 °C |
| Height of lowest version | 22.7 mm |
| Width (inches) | 1.309 in |
| L1 in inches | 3/4 in |
| Solder pin length tolerance | +0,02 / -0,02 mm |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Operating temperature, max. | 120 deg C |
| Plugging force/pole, max. | 8 N |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |
| Type of connection | Board connection |
| Rated voltage (Use group B / CSA) | 300 V |
| Colour | orange |
| Institute (CSA) | CSA |
| Solder eyelet hole diameter (D) | 1.2 mm |
| Rated current, max. number of poles (Tu=20°C) | 13.9 A |
| Pin series quantity | 2 |
| Solder pin length (l) | 3.2 mm |
| UL File Number Search | E60693 |
| VPE height | 260 mm |
| Certificate No. (cURus) | E60693 |
| Rated current, min. number of poles (Tu=40°C) | 17 A |
| UL 94 flammability rating | V-0 |
| Outgoing elbow | 90° |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Institute (cURus) | cURus |
| Temperature range, installation, max. | 120 deg C |
| Certificate No. (CSA) | 200,039 to 1,121,690 |
| Height (inches) | 1.02 in |
| Pulling force/pole, max. | 5.5 N |
| Approvals | CSA, cURus, EAC |
| Pitch in inches (P) | 0.15 in |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Rated current, min. number of poles (Tu=20°C) | 17.5 A |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| Insulation strength | ≥108 Ω |
| Rated current (Use group B / CSA) | 11 A |
| Contact surface | tinned |
| Storage temperature, max. | 55 deg C |
| Rated voltage (Use group B / UL 1059) | 300 V |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Contact material | Copper alloy |
| Tolerance of solder pin position | ± 0.1 mm |
| Rated current (Use group D / UL 1059) | 10 A |
| Depth (inches) | 0.862 in |
| Temperature range, installation, min. | -25 deg C |
| Plugging cycles | 25 |
| VPE width | 180 mm |
| Rated current, max. number of poles (Tu=40°C) | 12.3 A |
| Storage temperature, min. | -25 °C |
| Comparative Tracking Index (CTI) | ≥550 |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| Short-time withstand current resistance | 3 x 1s with 76 A |
| Max. relative humidity during storage | 80 % |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Number of solder pins per pole | 1 |
| Solder pin dimensions = d tolerance | 0 mm, -0,03 |
| GWFI | 960 °C |
| Package Quantity | 1 |
