Barrier Strip Terminal Block, 17A, 2.5Mm2, 1 Row(S), 1 Deck(S)
| Number of Poles | 10 |
|---|---|
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Wire cross-section, AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 28 |
| Approvals | cURus, EAC |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Comparative Tracking Index (CTI) | ≥200 |
| Volume resistance | 4.5 milliohm |
| Max. relative humidity during storage | 80 % |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Plugging force/pole, max. | 8 N |
| Number of Rows | 1 |
| Rated current (Use group B / CSA) | 15 A |

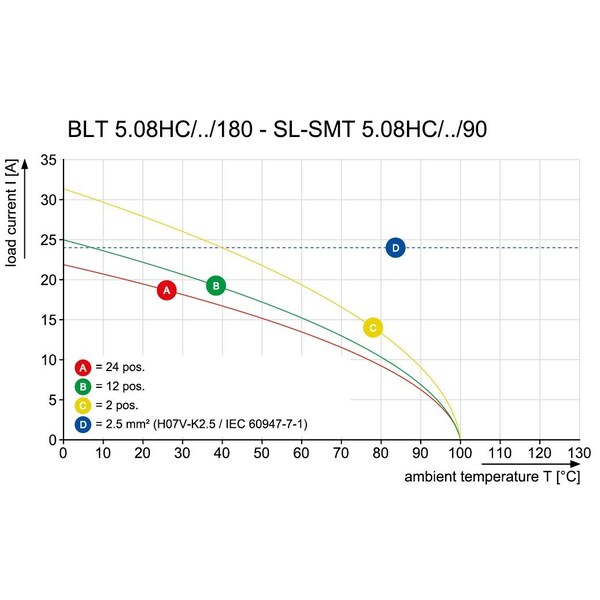

| Rated current, max. number of poles (Tu=40°C) | 16 A |
| Temperature range, installation, max. | 100 deg C |
| Clamping range, min. | 0.13 sq mm |
| Height (inches) | 0.594 in |
| Rated current, max. number of poles (Tu=20°C) | 19 A |
| Screwdriver blade | 0.6 x 3.5 |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Operating temperature, max. | 100 deg C |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Rated voltage (Use group B / CSA) | 300 V |
| Tightening torque, min. | 0.4 N-m |
| Rated cross-section | 2.5 mm² |
| Colour chart (similar) | RAL 2000 |
| L1 in inches | 1.8 in |
| Wire connection cross section AWG, max. | AWG 14 |
| Screwdriver blade standard | DIN 5264 |
| Short-time withstand current resistance | 3 x 1s with 100 A |
| Pulling force/pole, max. | 7 N |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 1.5 sq mm |
| Layer structure of plug contact | 4-8µm Sn hot-dip tinned |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Clamping screw | M 2.5 |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current, min. number of poles (Tu=20°C) | 27 A |
| Flexible, min. H05(07) V-K | 0.2 sq mm |
| Conductor outlet direction | 180° |
| Flexible, max. H05(07) V-K | 1.5 sq mm |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Tightening torque, max. | 0.5 N-m |
| Rated current (Use group B / UL 1059) | 17 A |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Clamping range, max. | 2.5 sq mm |
| Operating temperature, min. | -50 °C |
| Insulating material group | IIIa |
| Width (inches) | 2.387 in |
| Rated current, min. number of poles (Tu=40°C) | 24 A |
| Wire connection method | connection |
| Wire cross-section, AWG, min. | AWG 26 |
| Temperature range, installation, min. | -25 deg C |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.2 sq mm |
| Storage temperature, max. | 55 deg C |
| Rated current (Use group D / UL 1059) | 10 A |
| Solid, max. H05(07) V-U | 2.5 sq mm |
| Plugging cycles | 25 |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 sq mm |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.2 sq mm |
| Solid, min. H05(07) V-U | 0.2 sq mm |
| Certificate No. (cURus) | E60693 |
| Depth (inches) | 1.252 in |
| Plug gauge in accordance with EN 60999 a x b; ø | 2.4 mm x 1.5 mm ; 2.4 mm |
| Institute (cURus) | cURus |
| Max. clamping range | 2.5 sq mm |
| Pitch in inches (P) | 0.2 in |
| VPE width | 135 mm |
| UL File Number Search | E60693 |
| Contact material | CuSn |
| Insulating material | PBT |
| Rated current (Use group D / CSA) | 15 A |
| Insulation strength | ≥108 Ω |
| Storage temperature, min. | -25 °C |
| Pin series quantity | 1 |
| Stripping length | 13 mm |
| Type of connection | Field connection |
| VPE length | 30 mm |
| Contact surface | tinned |
| Colour | orange |
| VPE height | 350 mm |
| GWFI | 960 °C |
| UL 94 flammability rating | V-0 |
| Package Quantity | 1 |
