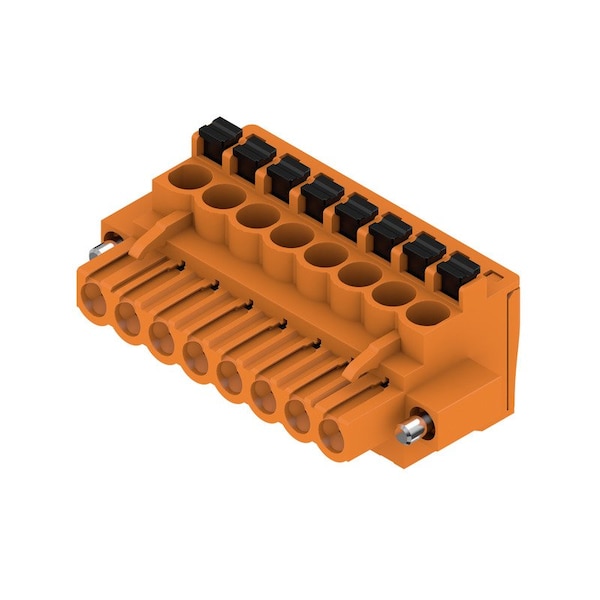

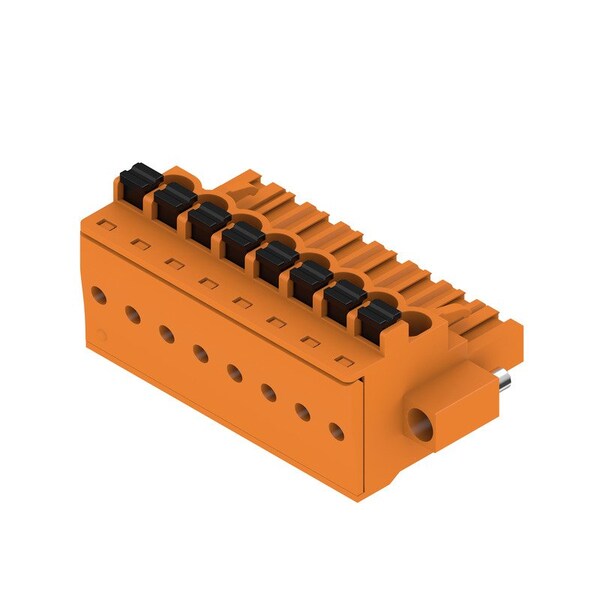

Barrier Strip Terminal Block, 18.5A, 3.31Mm2, 1 Row(S), 1 Deck(S)
| Number of Poles | 8 |
|---|---|
| Insulating material | PBT |
| Institute (CSA) | CSA |
| Tightening torque for screw flange, max. | 0.2 N-m |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Wire cross-section, AWG, min. | AWG, AWG 26 12 |
| Flexible, max. H05(07) V-K | 2.5 sq mm |
| Conductor outlet direction | 90° |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Solid, min. H05(07) V-U | 0.2 sq mm |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Rated cross-section | 2.5 mm² |
| Rated voltage (Use group D / CSA) | 300 V |
| Screwdriver blade | 0.6 x 3.5 |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 2.5 sq mm |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 12 |
| Rated current (Use group B / UL 1059) | 18.5 A |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Rated current (Use group B / CSA) | 10 A |

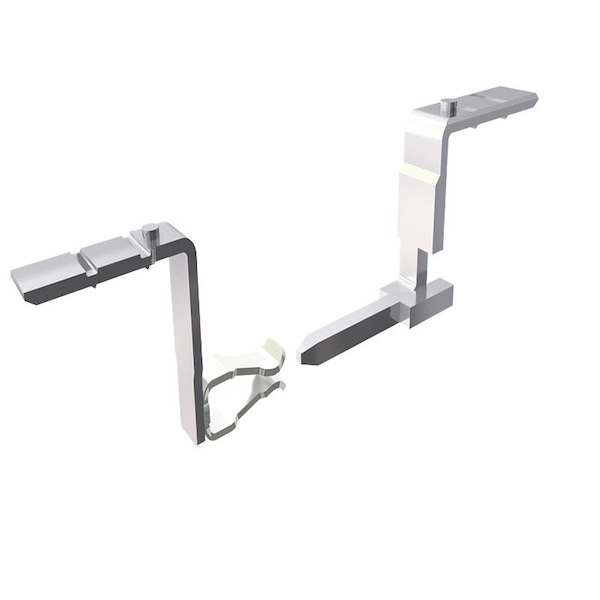

| Contact material | CuSn |
| Wire cross-section, AWG, max. | AWG, AWG 26 12 |
| w. wire end ferrule, DIN 46228 pt 1, max. | 2.5 sq mm |
| UL File Number Search | E60693 |
| Contact surface | tinned |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| GWFI | 960 °C |
| Max. clamping range | 3.31 sq mm |
| UL 94 flammability rating | V-0 |
| Material of operational elements | PBT |
| Solid, max. H05(07) V-U | 2.5 sq mm |
| Layer structure of plug contact | 4-8µm Sn hot-dip tinned |
| Rated current (Use group D / CSA) | 10 A |

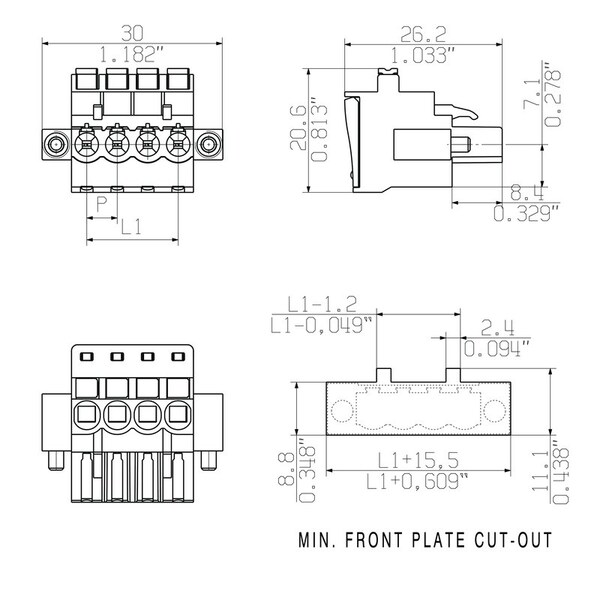

| Width (inches) | 1.986 in |
| Pin series quantity | 1 |
| Pitch in inches (P) | 0.2 in |
| Depth (inches) | 1.031 in |
| Operating temperature, min. | -50 °C |
| Short-time withstand current resistance | 3 x 1s with 120 A |
| Storage temperature, min. | -25 °C |
| Flexible, min. H05(07) V-K | 0.2 sq mm |

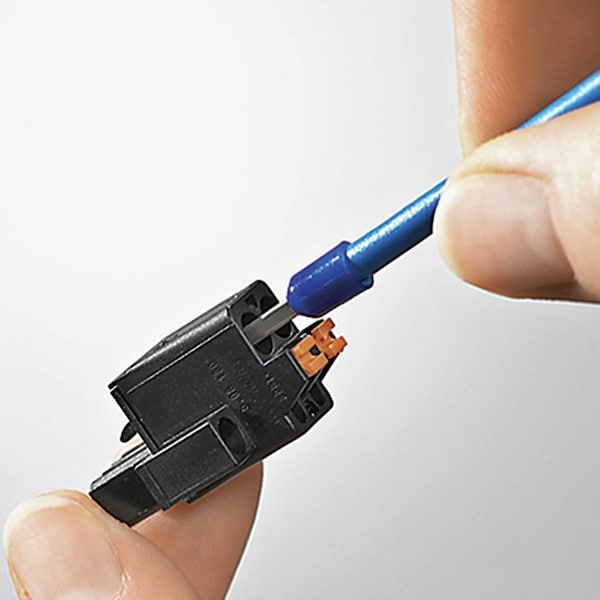

| Wire connection method | connection, PUSH IN |
| Insulation strength | ≥108 Ω |
| Pulling force/pole, max. | 5.5 N |

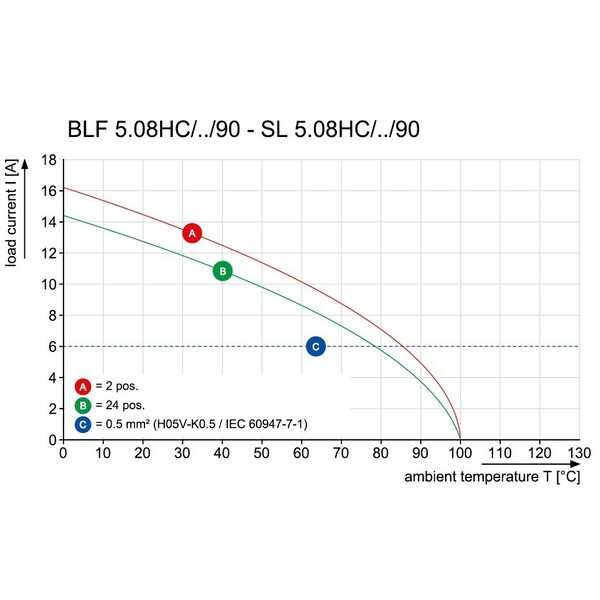

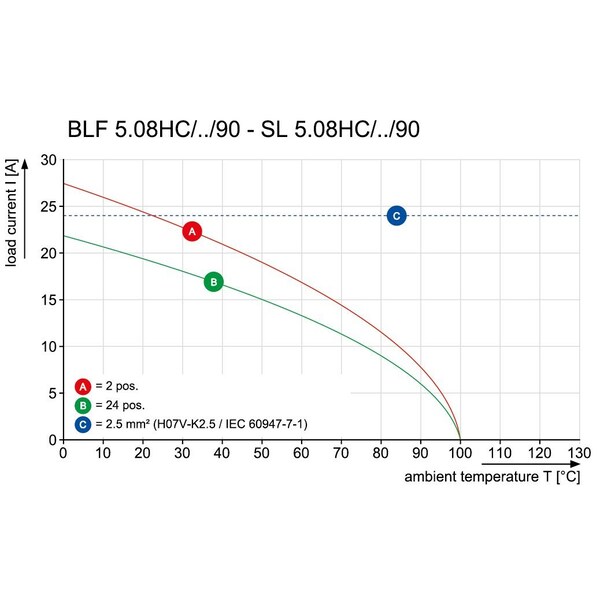

| Rated current, min. number of poles (Tu=20°C) | 24 A |
| Rated current, max. number of poles (Tu=40°C) | 16.5 A |
| Stripping length | 10 mm |
| Volume resistance | 4.5 milliohm |
| Operating temperature, max. | 100 deg C |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Colour of operational elements | black |
| Colour | orange |
| Rated current, max. number of poles (Tu=20°C) | 19 A |
| Screwdriver blade standard | DIN 5264 |
| Clamping range, min. | 0.13 sq mm |
| Rated current (Use group D / UL 1059) | 10 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated current, min. number of poles (Tu=40°C) | 21 A |
| Plugging cycles | 25 |
| Certificate No. (CSA) | 200,039 to 1,121,690 |
| Colour chart (similar) | RAL 2000 |
| Plug gauge in accordance with EN 60999 a x b; ø | 2.8 mm x 2.0 mm |
| Type of connection | Field connection |
| VPE height | 350 mm |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Insulating material group | IIIa |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Height (inches) | 0.811 in |
| VPE length | 30 mm |
| Comparative Tracking Index (CTI) | ≥200 |
| Institute (cURus) | cURus |
| Temperature range, installation, max. | 100 deg C |
| Number of Rows | 1 |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Max. relative humidity during storage | 80 % |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.25 sq mm |
| Rated voltage (Use group B / CSA) | 300 V |
| VPE width | 135 mm |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Storage temperature, max. | 55 deg C |
| Temperature range, installation, min. | -30 deg C |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.25 sq mm |
| Clamping range, max. | 3.31 sq mm |
| Plugging force/pole, max. | 7 N |
| Certificate No. (cURus) | E60693 |
| L1 in inches | 1.4 in |
| Approvals | CSA, cURus, EAC |
| Package Quantity | 1 |
